Fuel Pump Module Connector End View

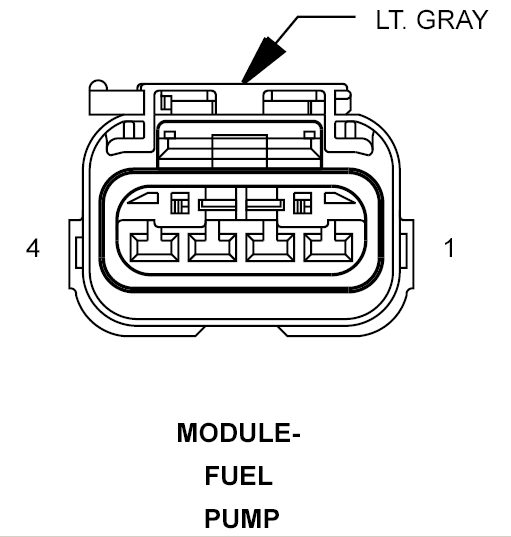

MODULE-FUEL PUMP - LT. GRAY 4-WAY

GKA880197Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z918 16BK GROUND
2 K91 18DB/YL SENSOR GROUND
3 N4 18DB/WT FUEL LEVEL SIGNAL
4 N1 16DB/OR FUSED FUEL PUMP OUTPUT
