Fan Radiator Cooling Module Connector End View

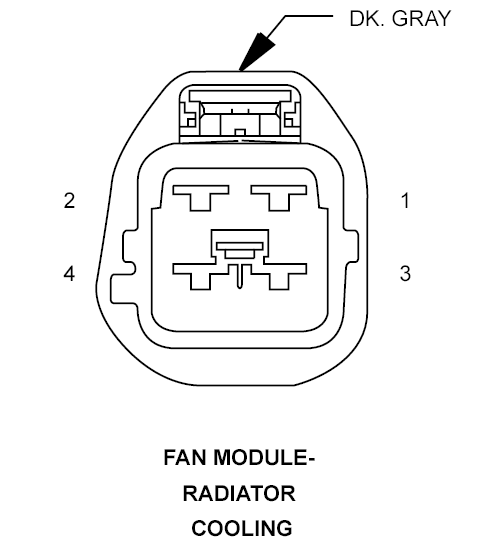

FAN MODULE-RADIATOR COOLING - DK. GRAY 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N173 10DB/VT |
HIGH SPEED RAD FAN RELAY OUTPUT |
| 2 |
Z908E 10BK |
GROUND |
| 3 |
N23 10DB/DG |
LOW SPEED RAD FAN CONTROL (PWM) |
| 4 |
- |
- |
