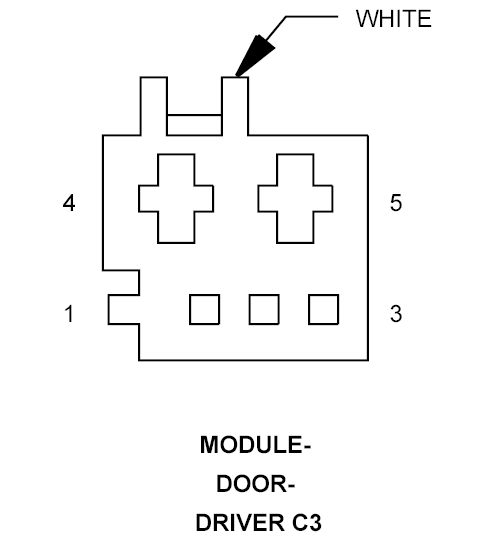

Driver Door Module Connector End View (C3)
MODULE-DOOR-DRIVER C3 - WHITE 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D264 20WT/OR |
CAN INTERIOR BUS (125K) (-) |
| 2 |
D265 20WT/GY |
CAN INTERIOR BUS (125K) (+) |
| 3 |
- |
- |
| 4 |
Z913 14BK/WT |
GROUND |
| 5 |
A215 14RD/LG |
FUSED B(+) |
