Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Center Of Dash

G00467447

Courtesy of CHRYSLER LLC

Fig 2: Left Side Of Dash

G00467448

Courtesy of CHRYSLER LLC

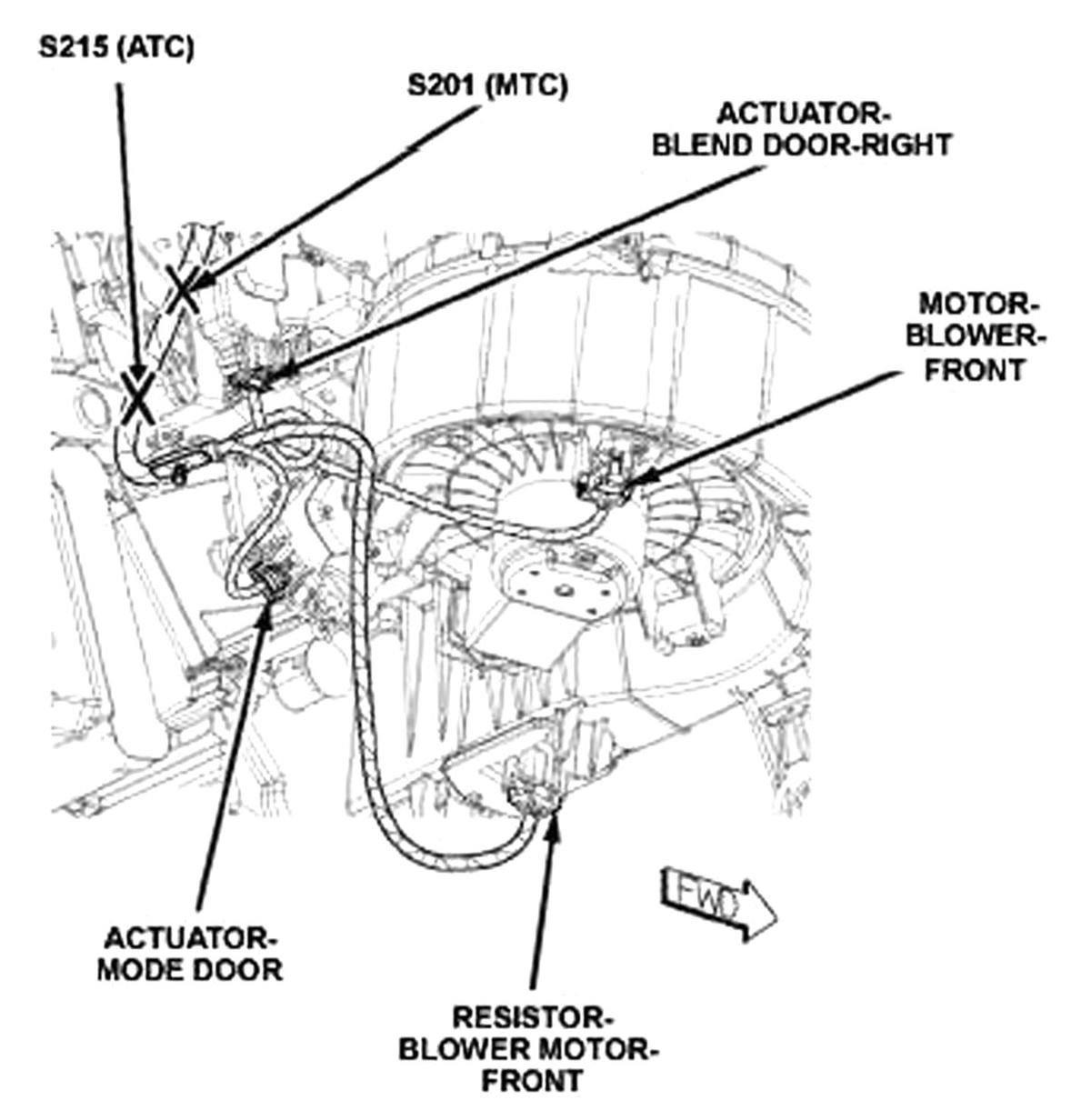

Fig 3: Right Side Of Dash

G00467449

Courtesy of CHRYSLER LLC

Fig 4: Right Side Of Dash

G00467450

Courtesy of CHRYSLER LLC

Fig 5: Steering Wheel

G00467451

Courtesy of CHRYSLER LLC

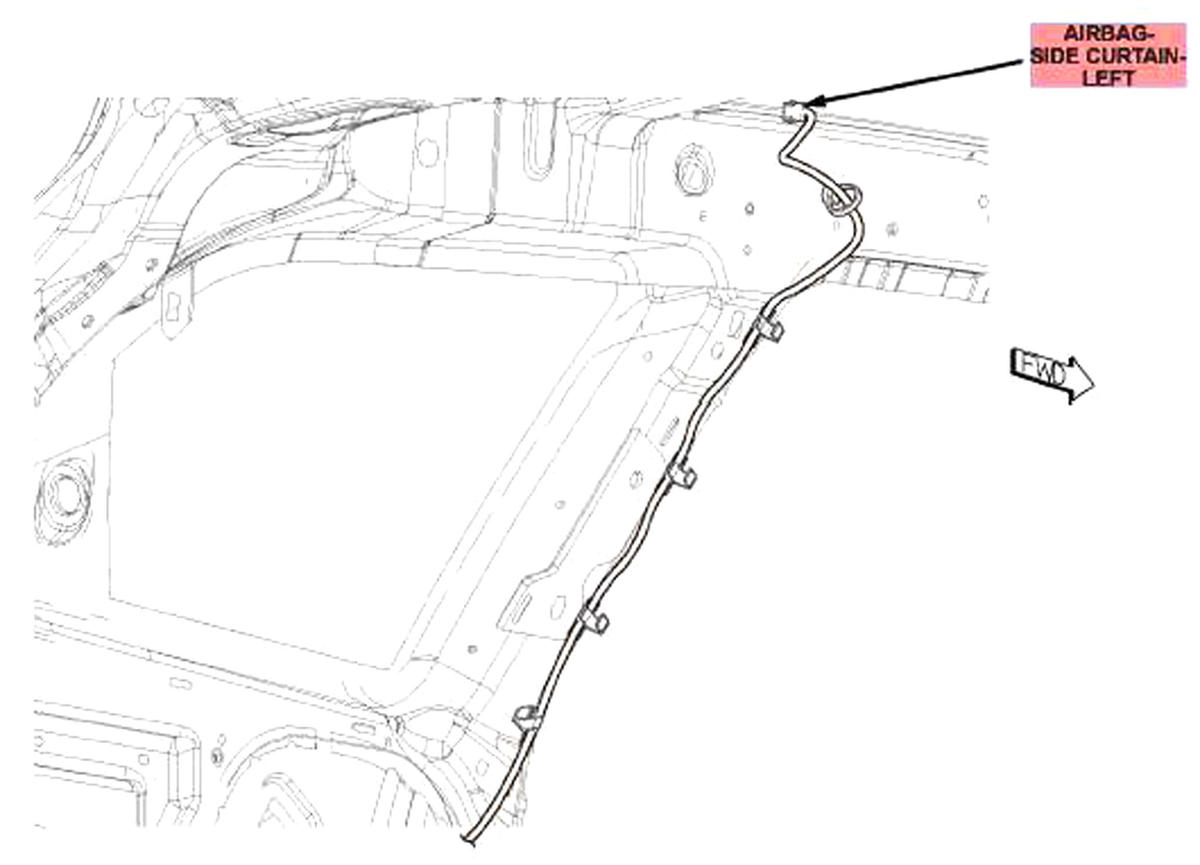

Fig 6: Left "C" Pillar

G00467452

Courtesy of CHRYSLER LLC

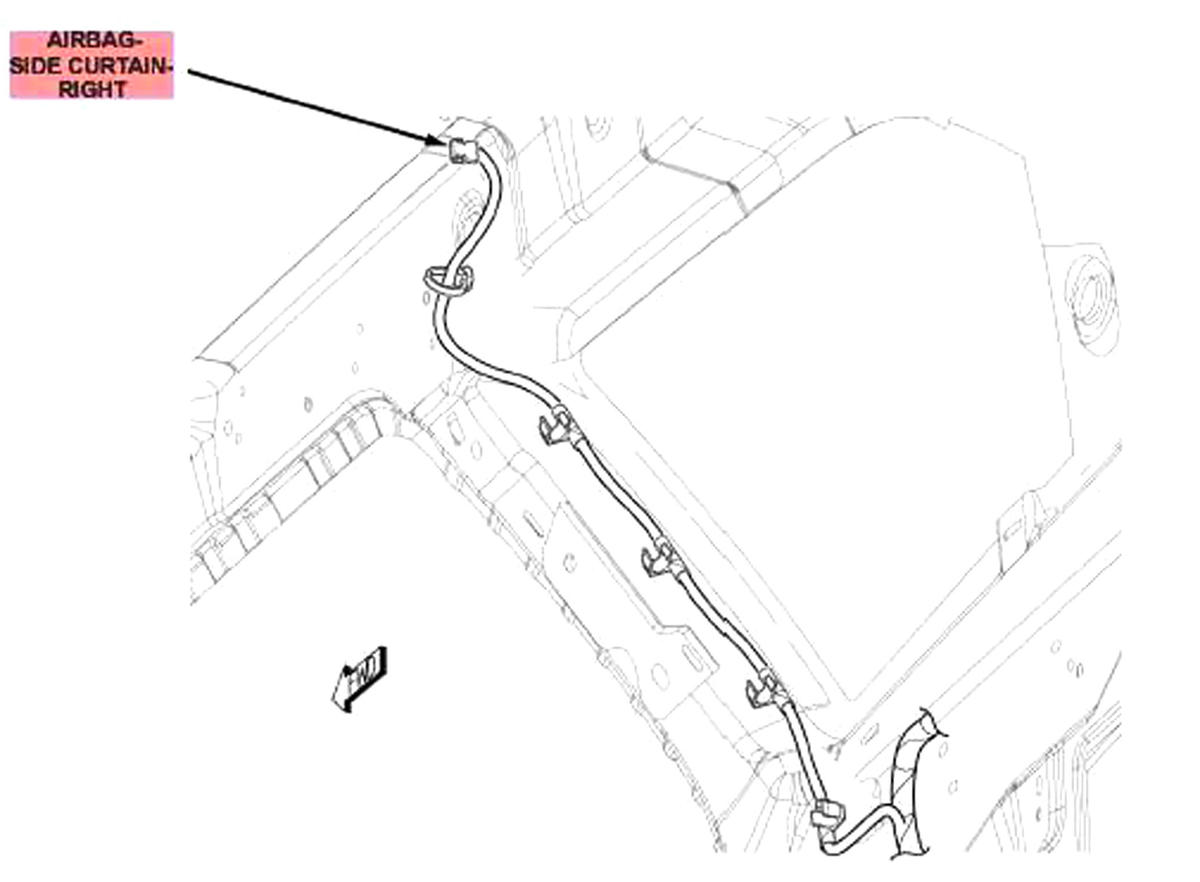

Fig 7: Right "C" Pillar

G00467453

Courtesy of CHRYSLER LLC

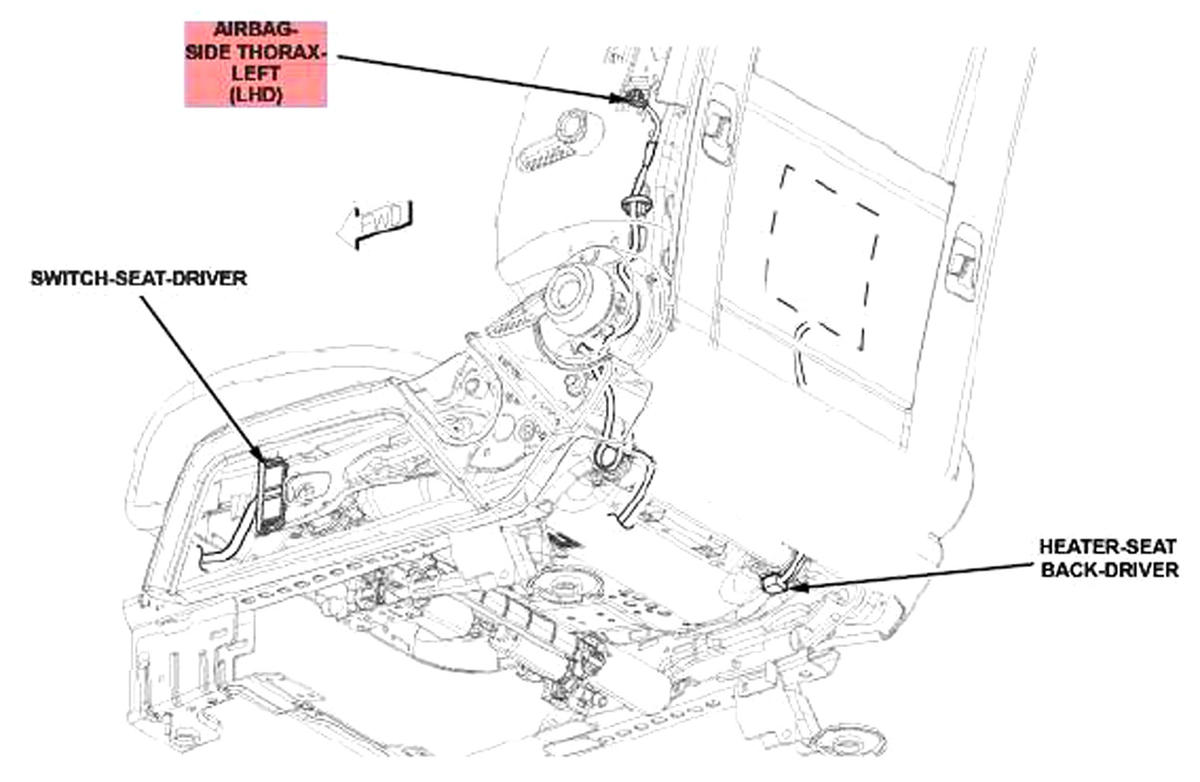

Fig 8: Driver's Seat

G00467454

Courtesy of CHRYSLER LLC

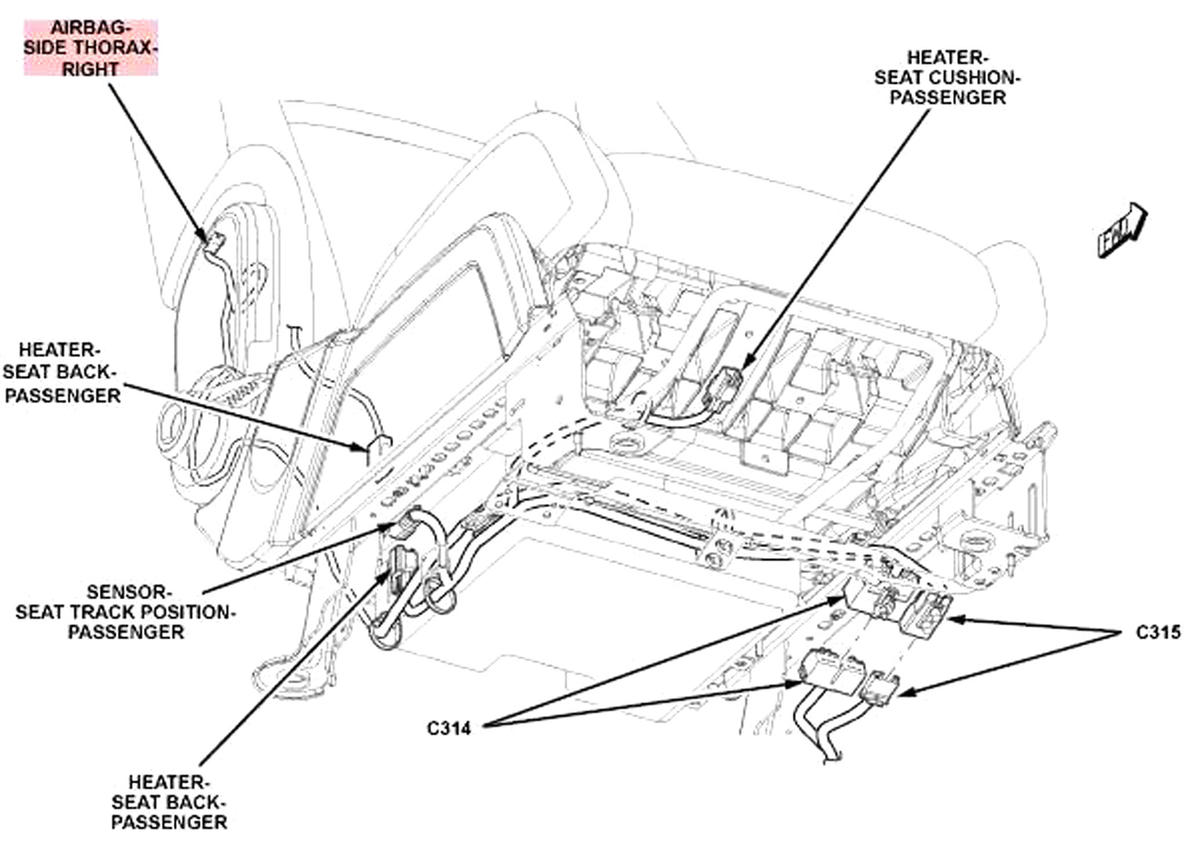

Fig 9: Front Passenger's Seat

G00467455

Courtesy of CHRYSLER LLC

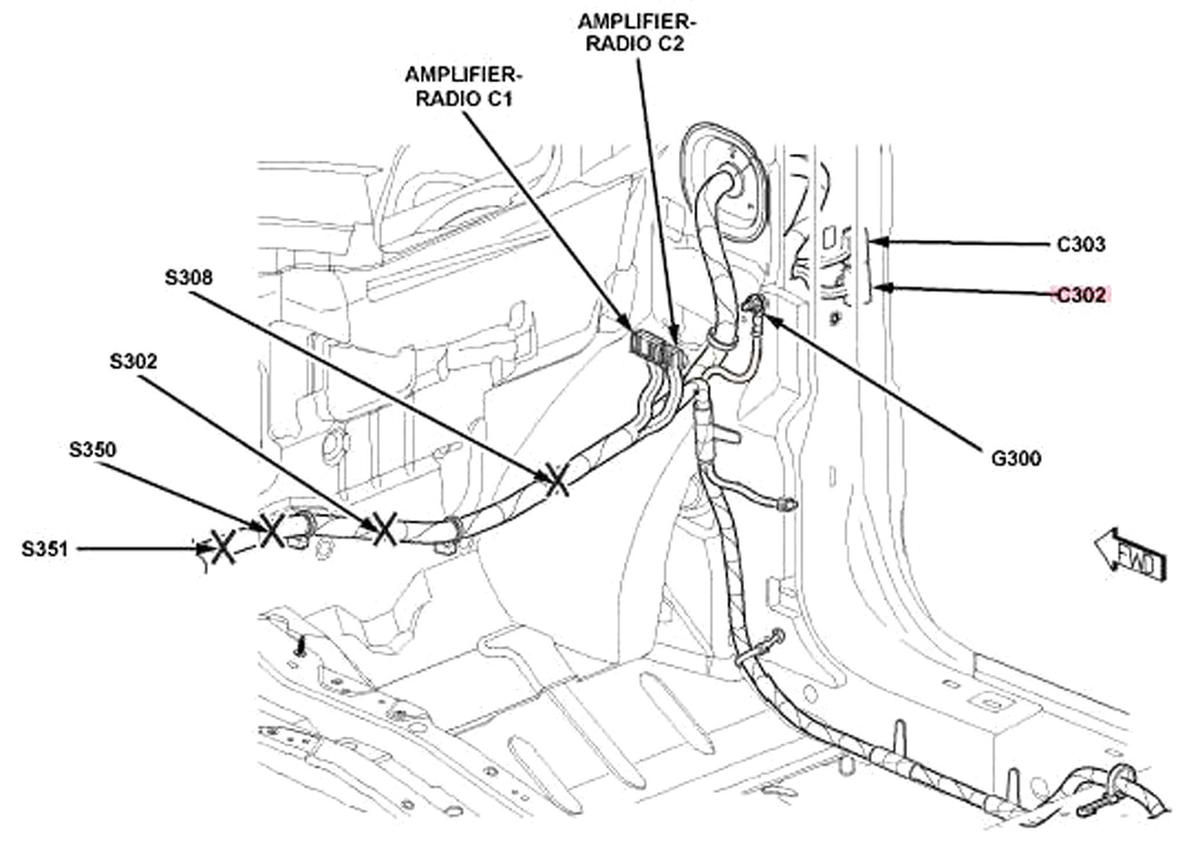

Fig 10: Right Kick Panel

G00467456

Courtesy of CHRYSLER LLC

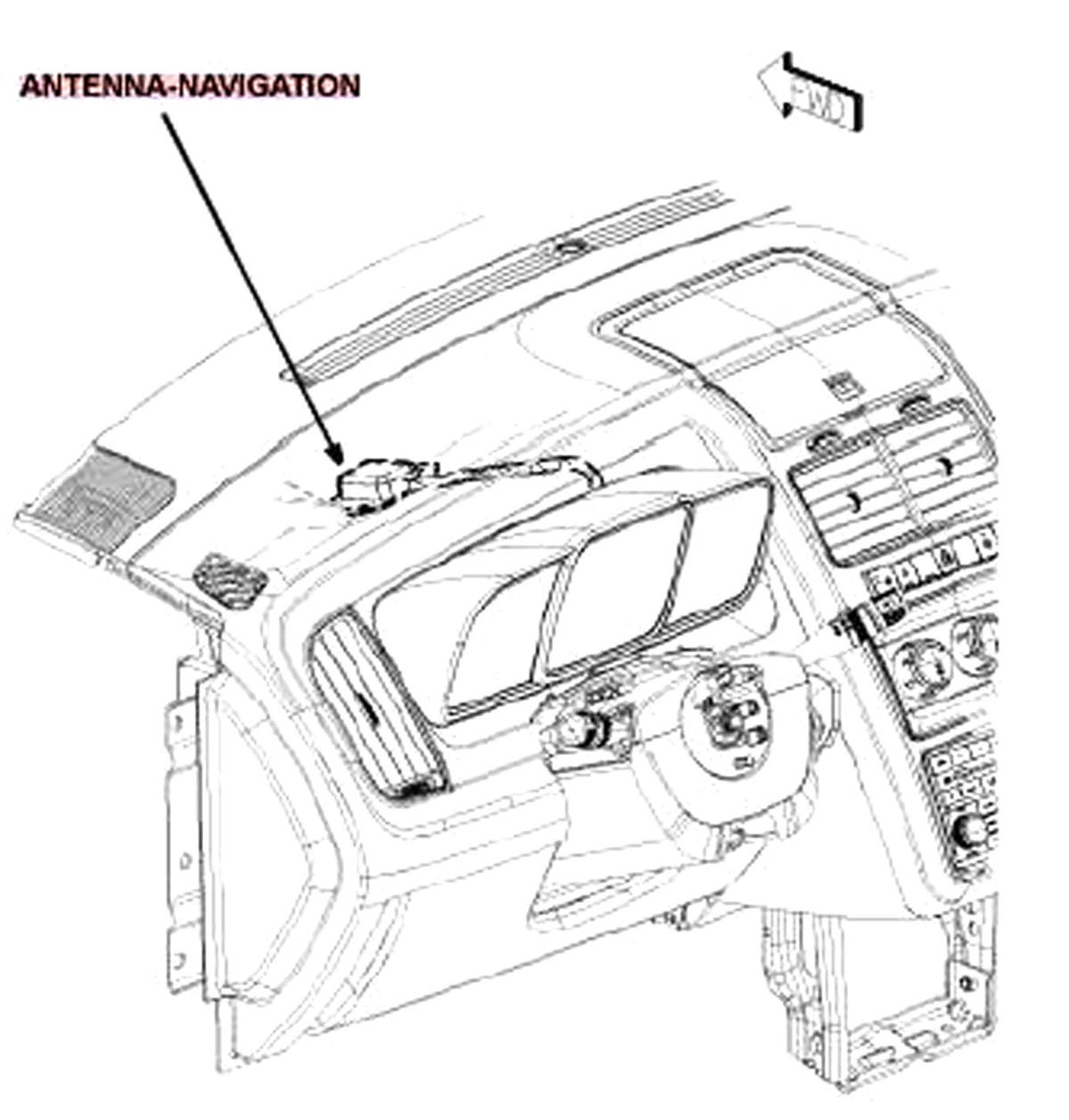

Fig 11: Left Side Of Dash

G00467457

Courtesy of CHRYSLER LLC

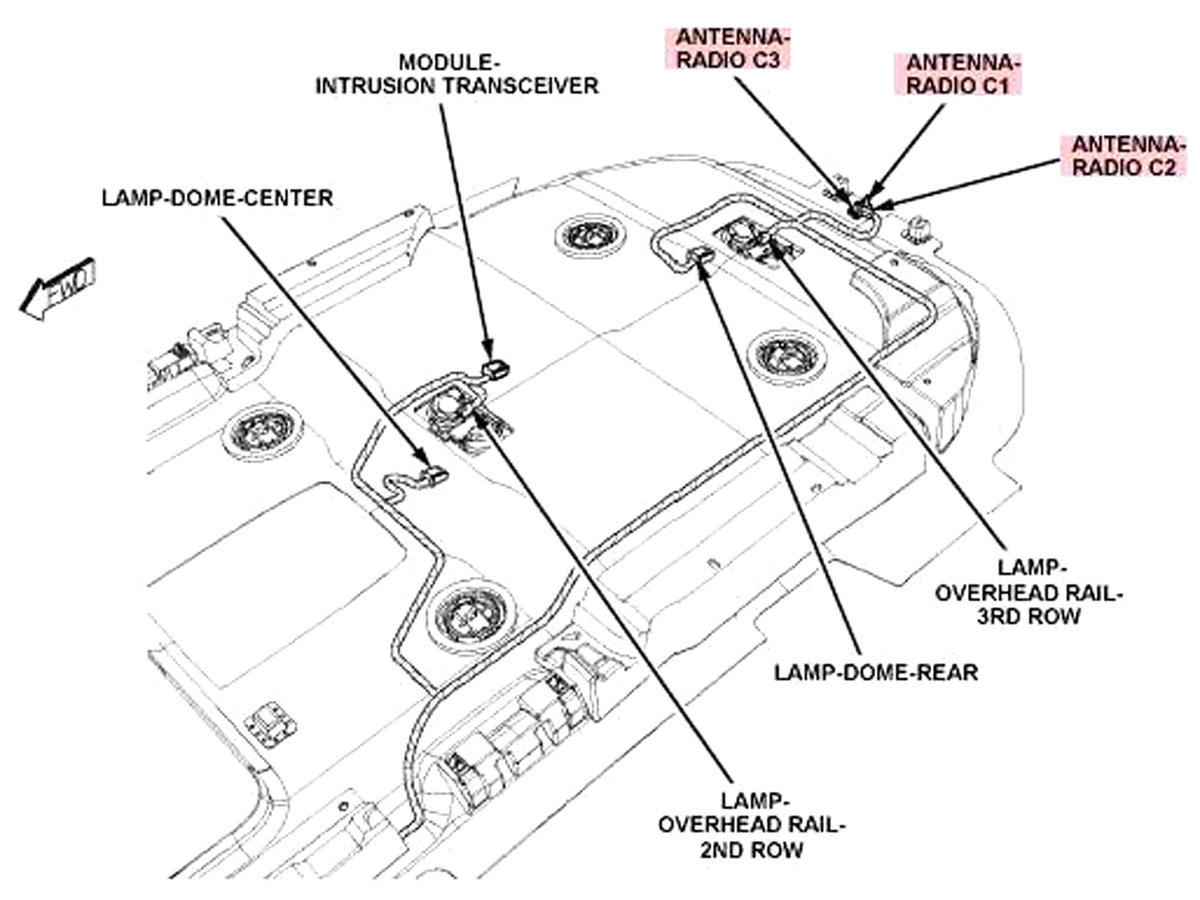

Fig 12: Overhead Rail

G00467458

Courtesy of CHRYSLER LLC

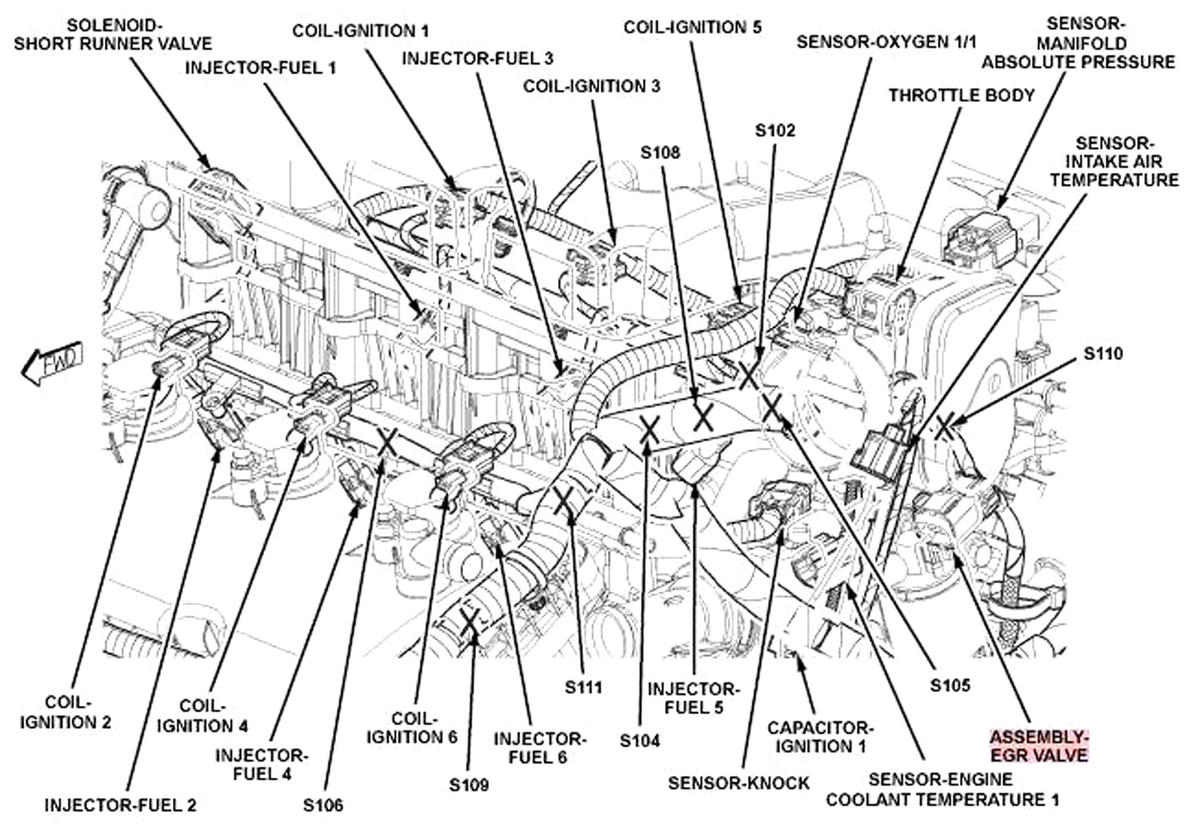

Fig 13: Top Of Engine (3.5L)

G00467459

Courtesy of CHRYSLER LLC

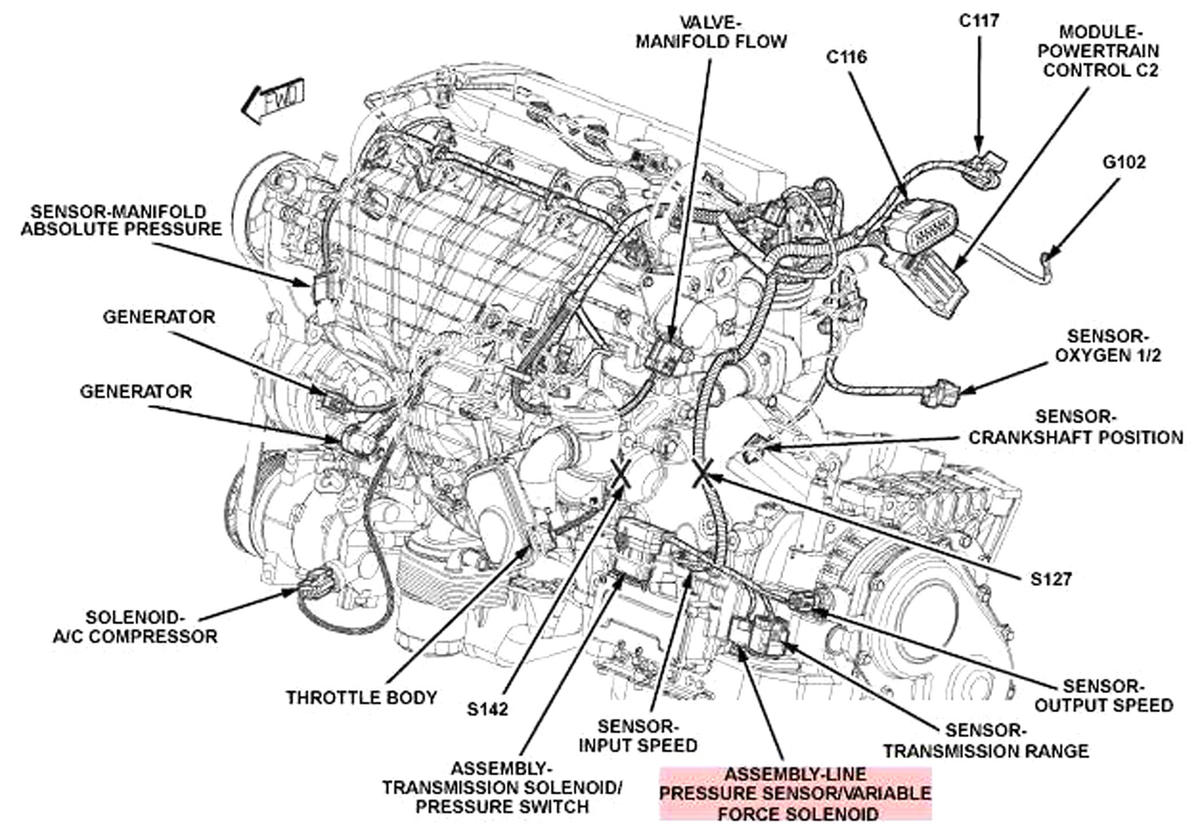

Fig 14: Left Side & Rear Of Engine (2.4L)

G00467463

Courtesy of CHRYSLER LLC

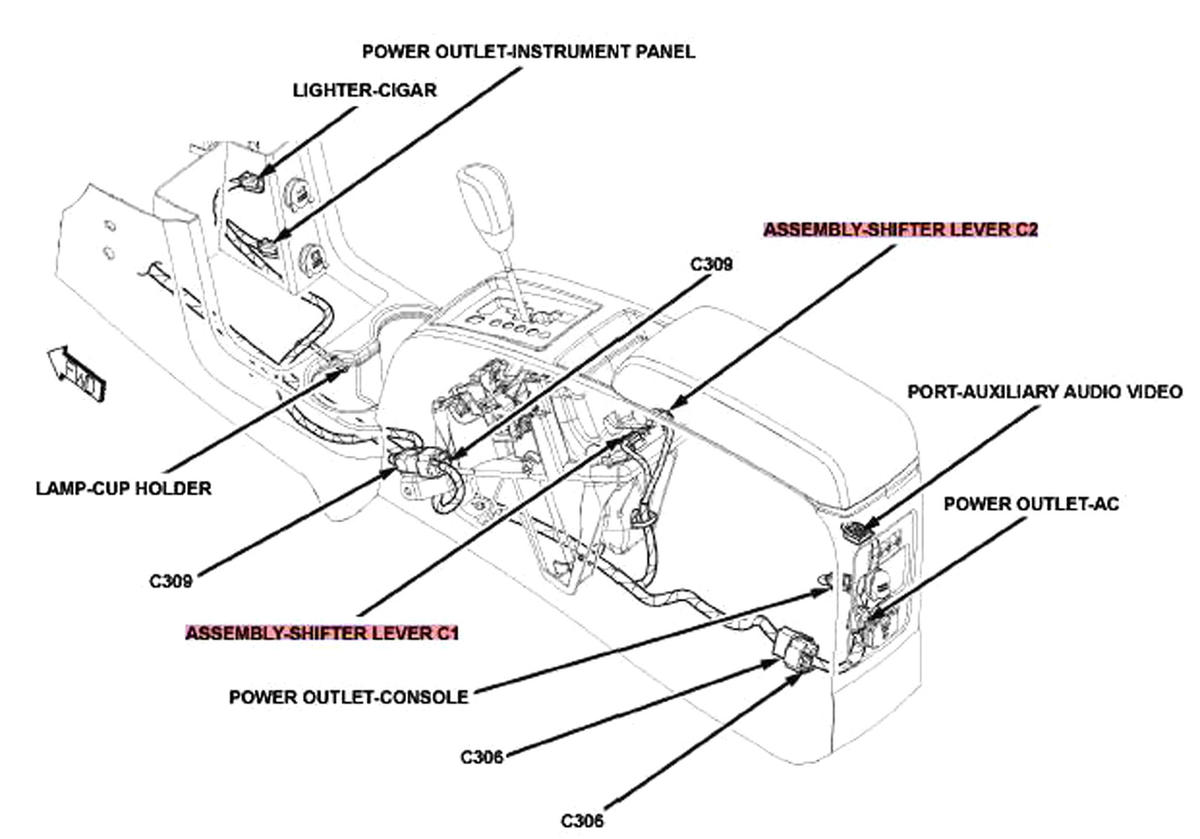

Fig 15: Center Console

G00467464

Courtesy of CHRYSLER LLC

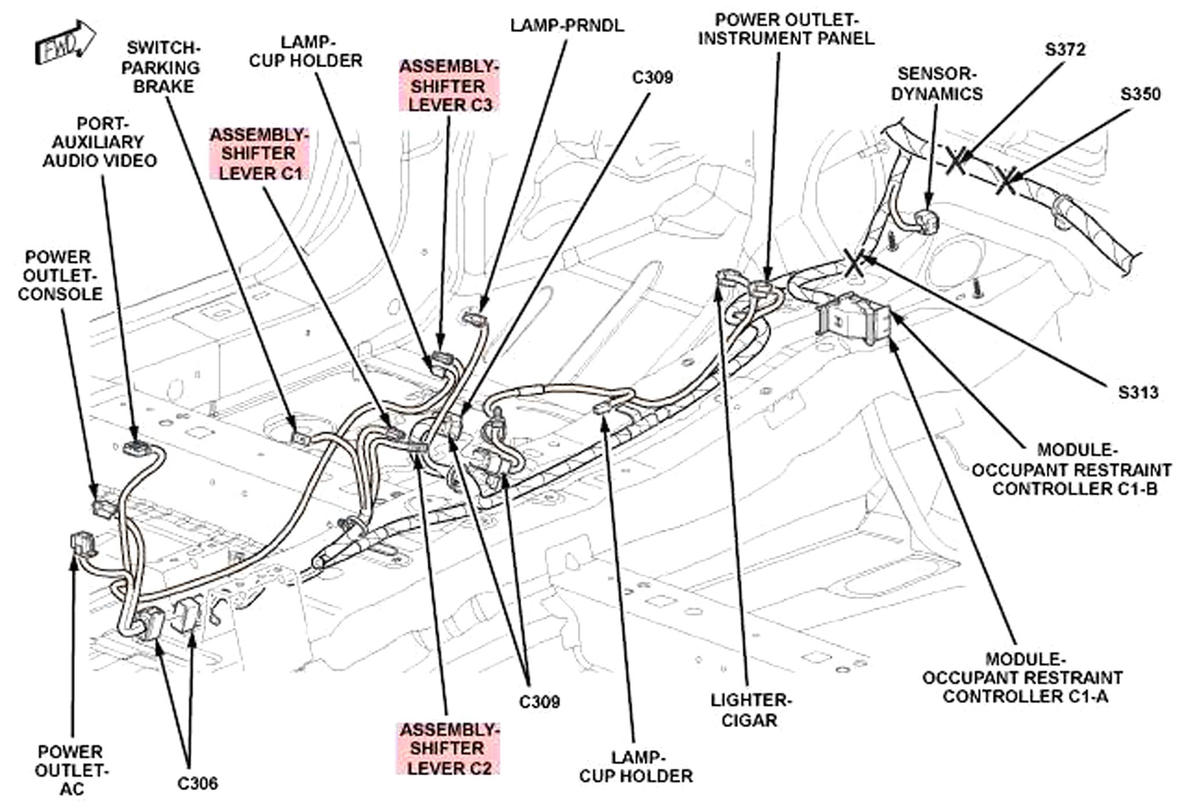

Fig 16: Left Front Floor

G00467465

Courtesy of CHRYSLER LLC

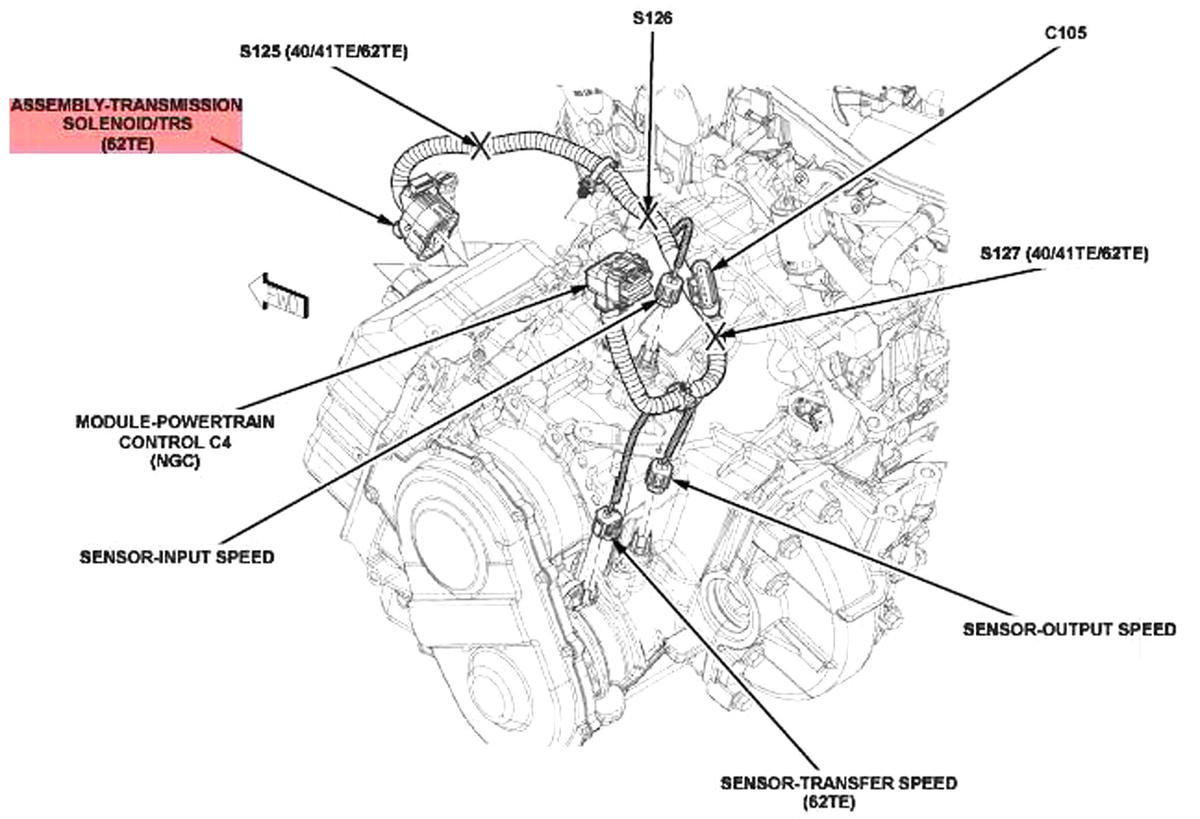

Fig 17: Transmission (3.5L)

G00467466

Courtesy of CHRYSLER LLC

Fig 18: Left Rear Of Engine Compartment

G00467468

Courtesy of CHRYSLER LLC

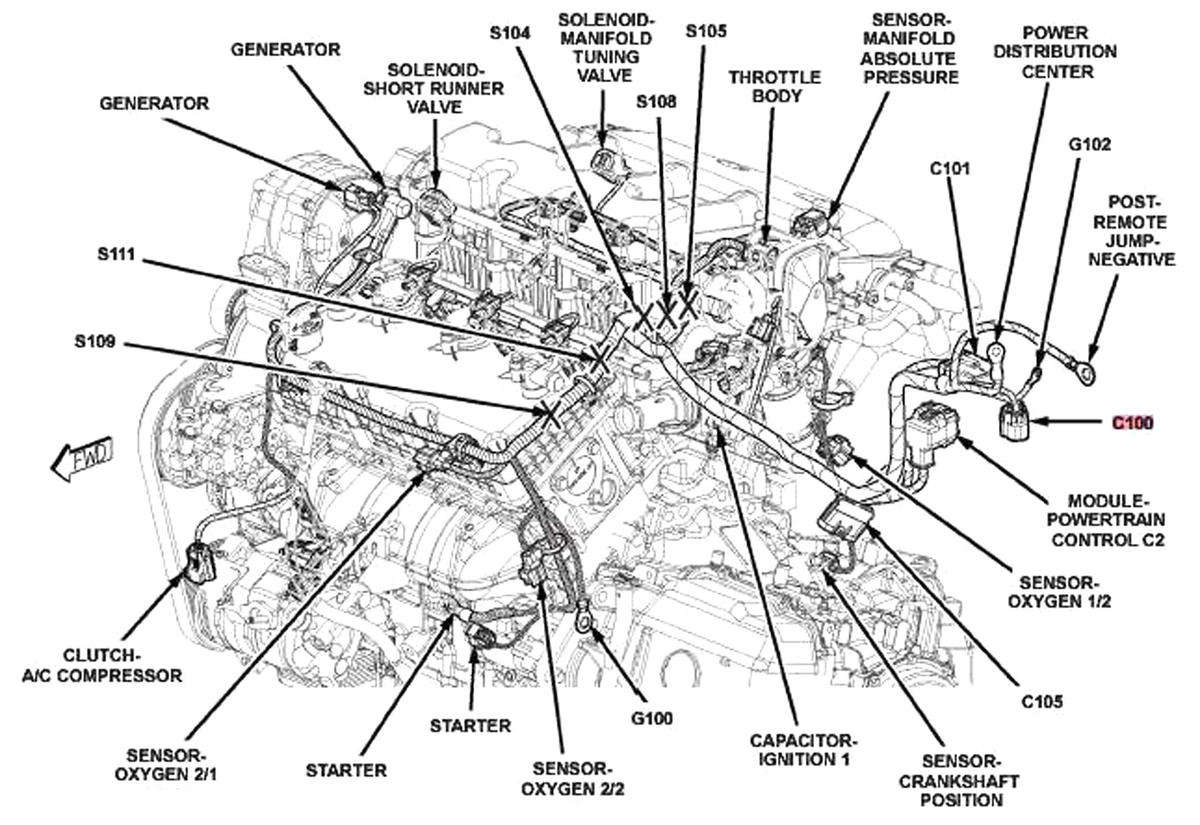

Fig 19: Left Side & Rear Of Engine (3.5L)

G00467469

Courtesy of CHRYSLER LLC

Fig 20: Left Front Of Engine Compartment

G00467470

Courtesy of CHRYSLER LLC

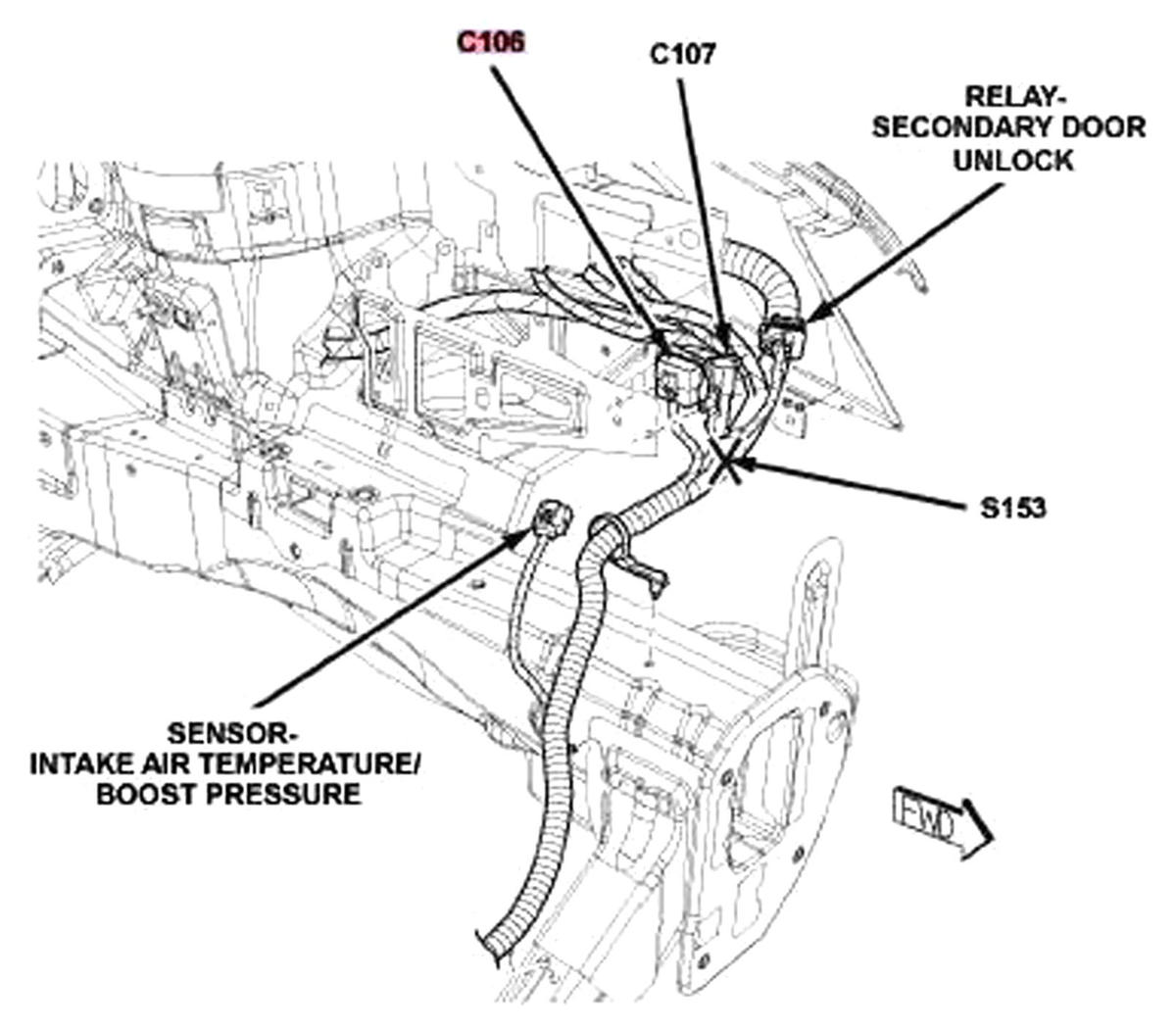

Fig 21: Left Side Of Engine Compartment

G00467471

Courtesy of CHRYSLER LLC

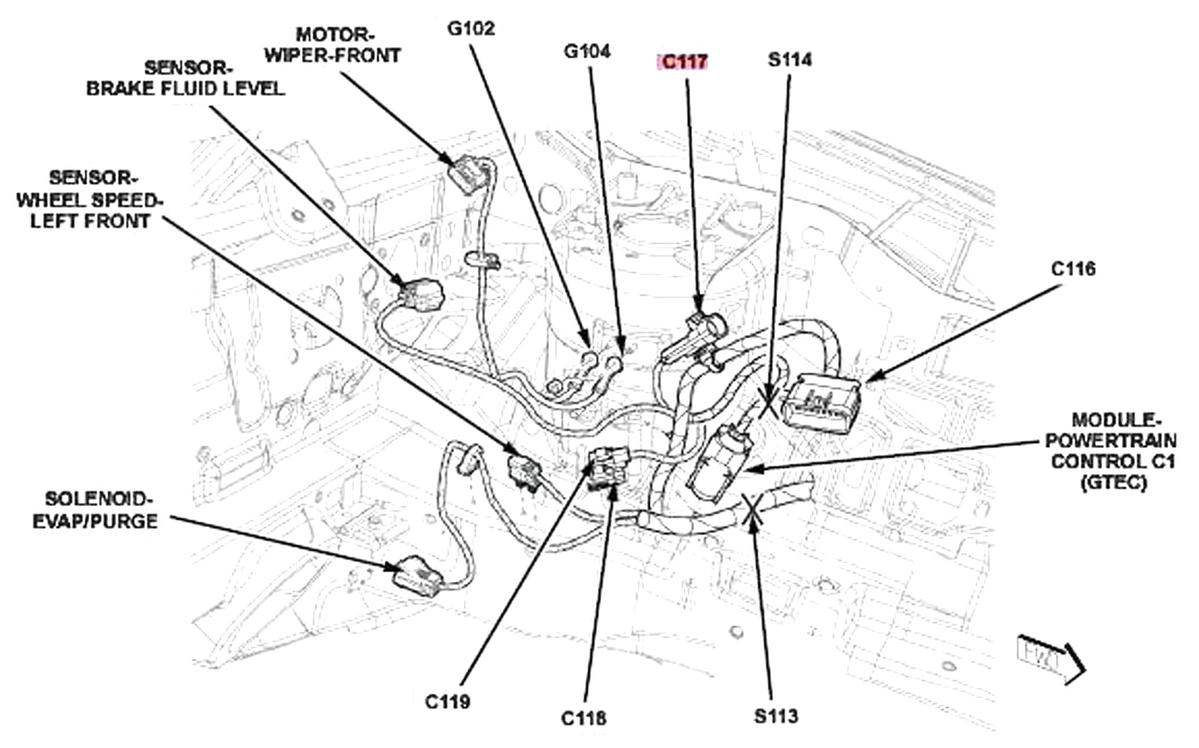

Fig 22: Left Side Of Engine Compartment

G00467472

Courtesy of CHRYSLER LLC

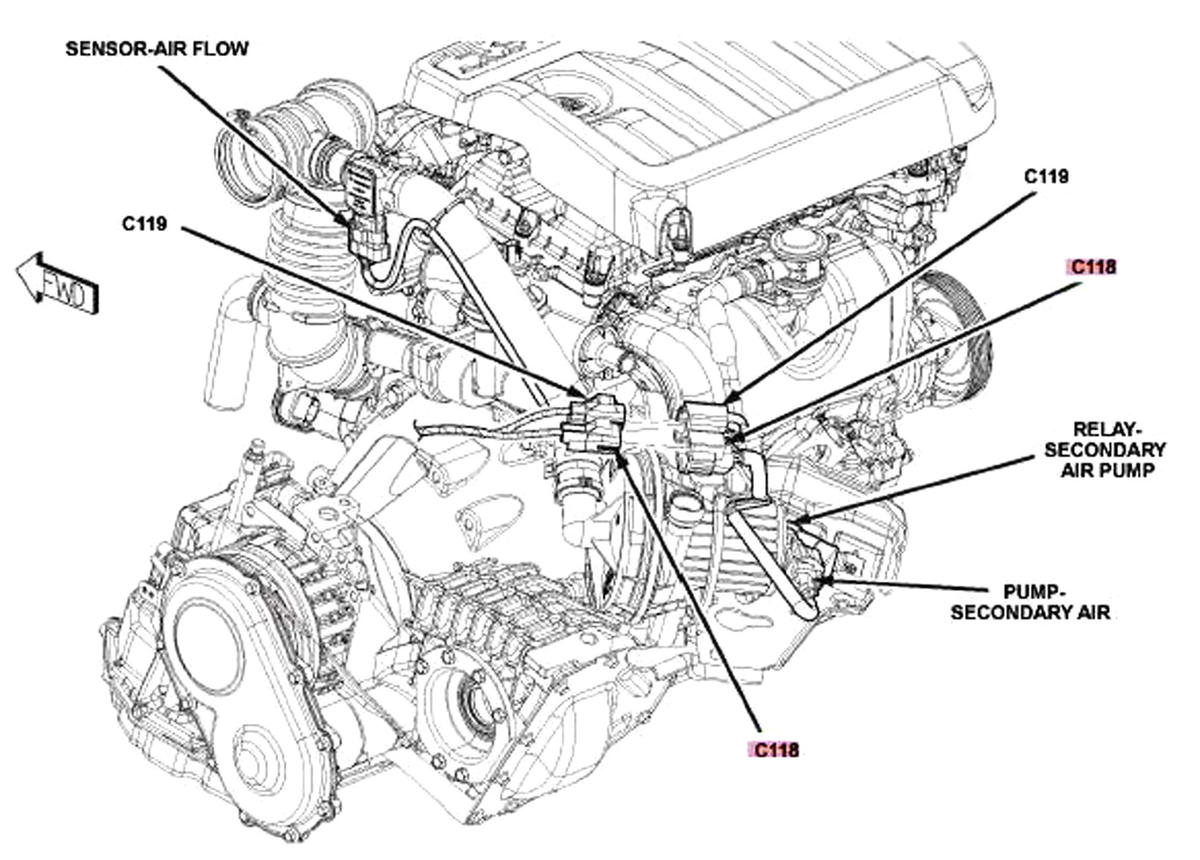

Fig 23: Right Side Of Engine (2.4L)

G00467473

Courtesy of CHRYSLER LLC

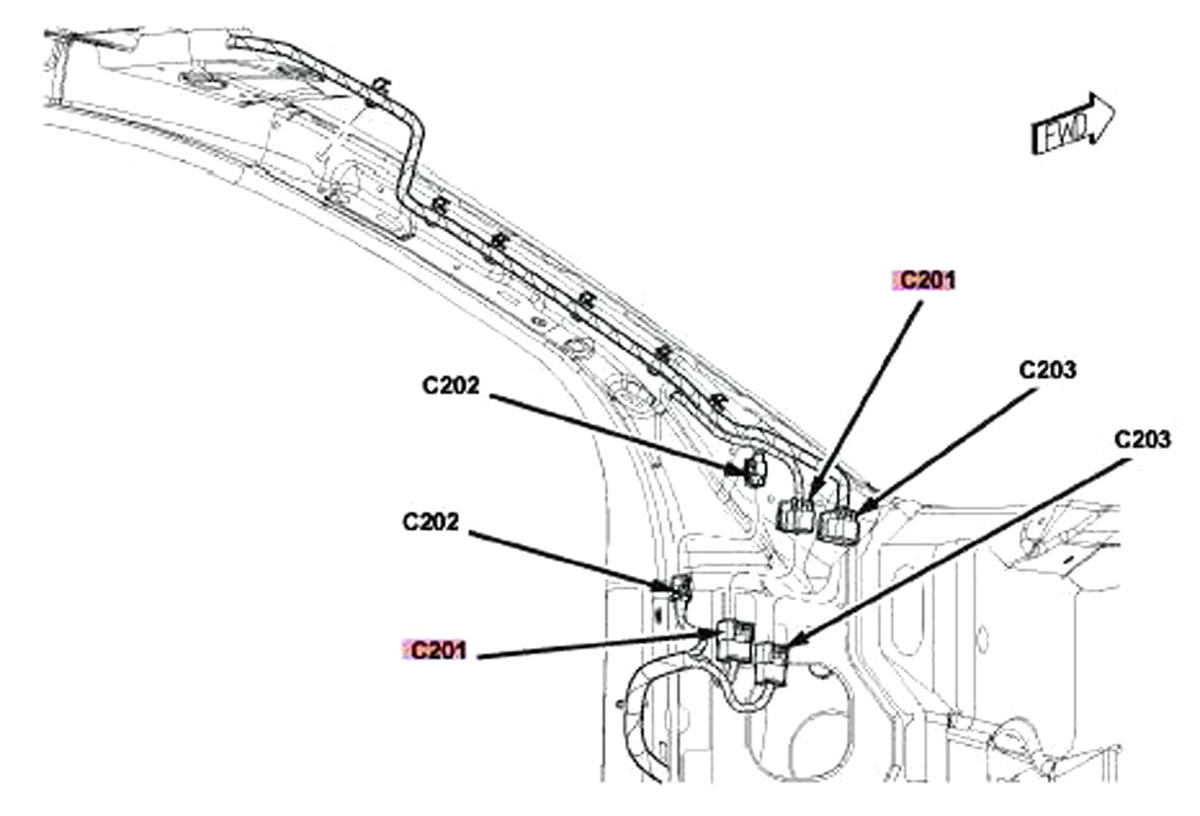

Fig 24: Left "A" Pillar

G00467475

Courtesy of CHRYSLER LLC

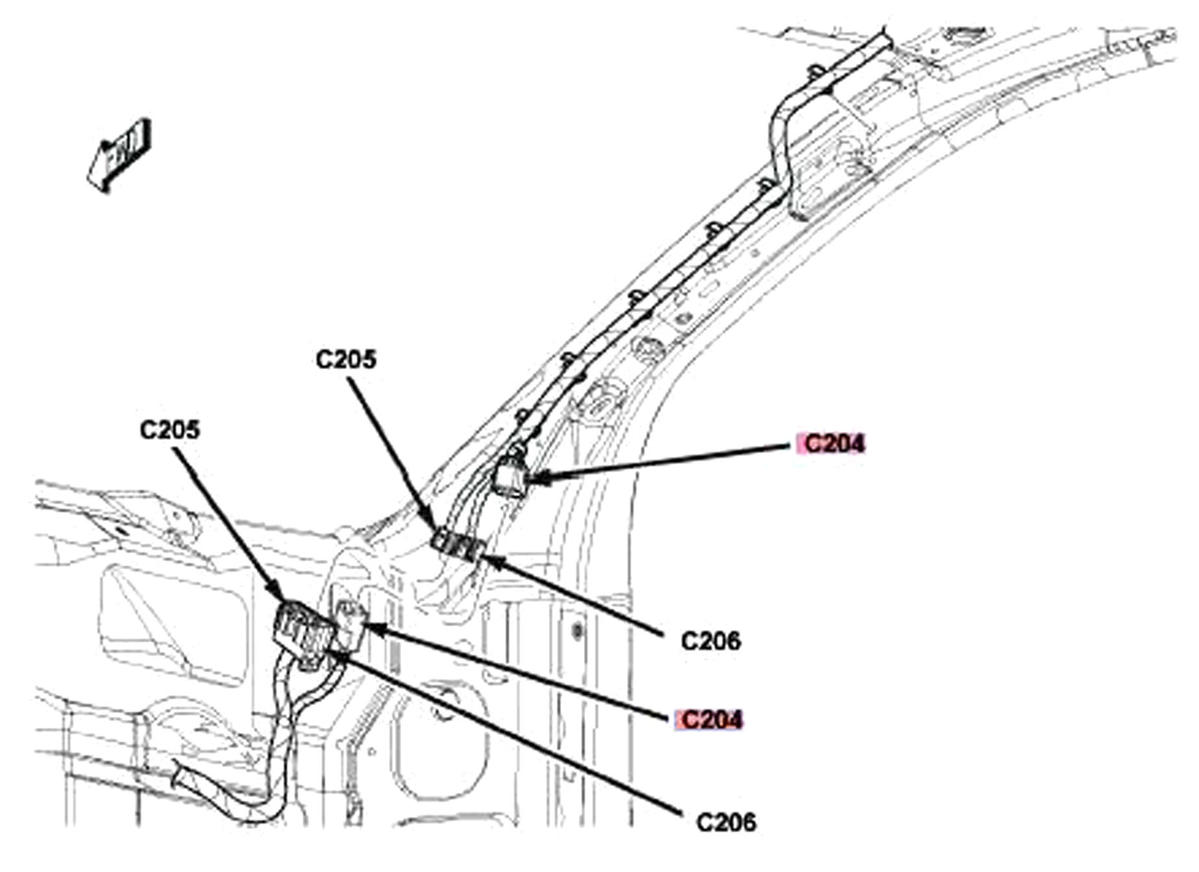

Fig 25: Right "A" Pillar

G00467477

Courtesy of CHRYSLER LLC

Fig 26: Driver's Door (Front Passenger's Similar)

G00467478

Courtesy of CHRYSLER LLC

Fig 27: Left Rear Door (Right Rear Similar)

G00467479

Courtesy of CHRYSLER LLC

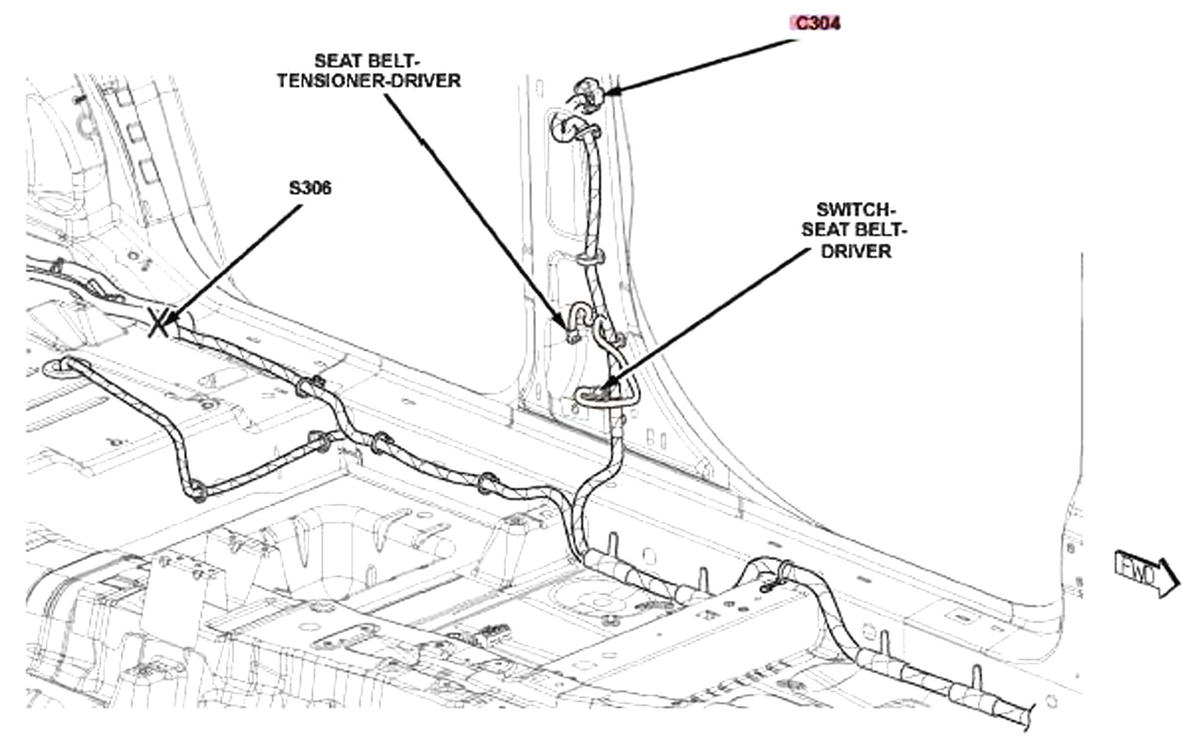

Fig 28: Left "B" & "C" Pillars

G00467480

Courtesy of CHRYSLER LLC

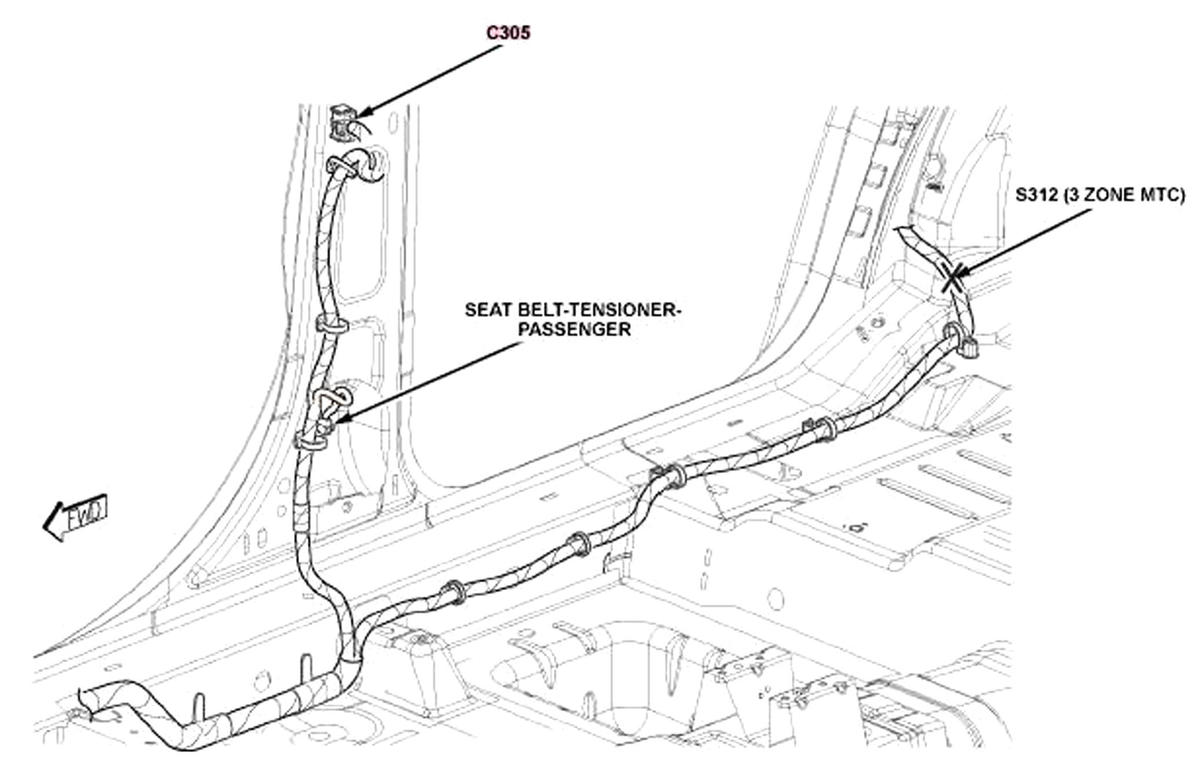

Fig 29: Right "B" & "C" Pillars

G00467481

Courtesy of CHRYSLER LLC

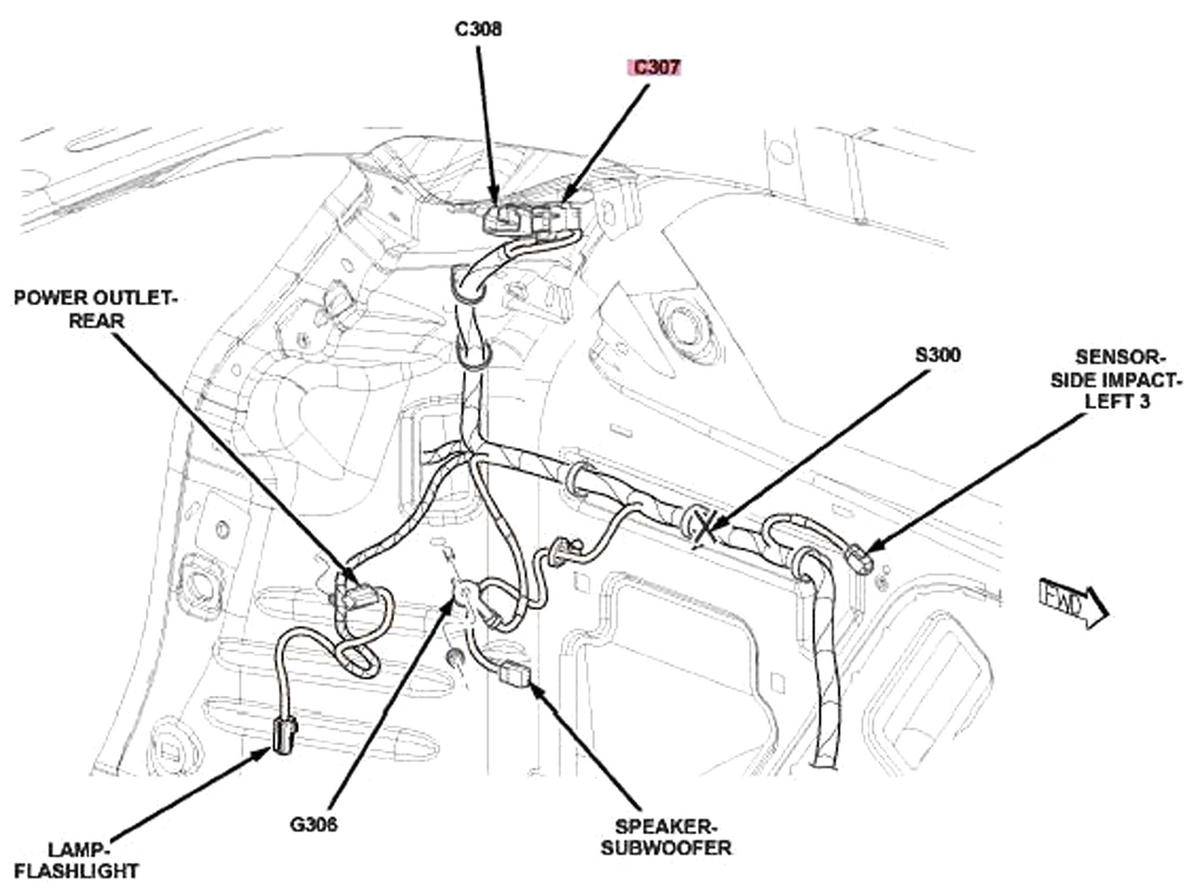

Fig 30: Left Quarterpanel

G00467482

Courtesy of CHRYSLER LLC

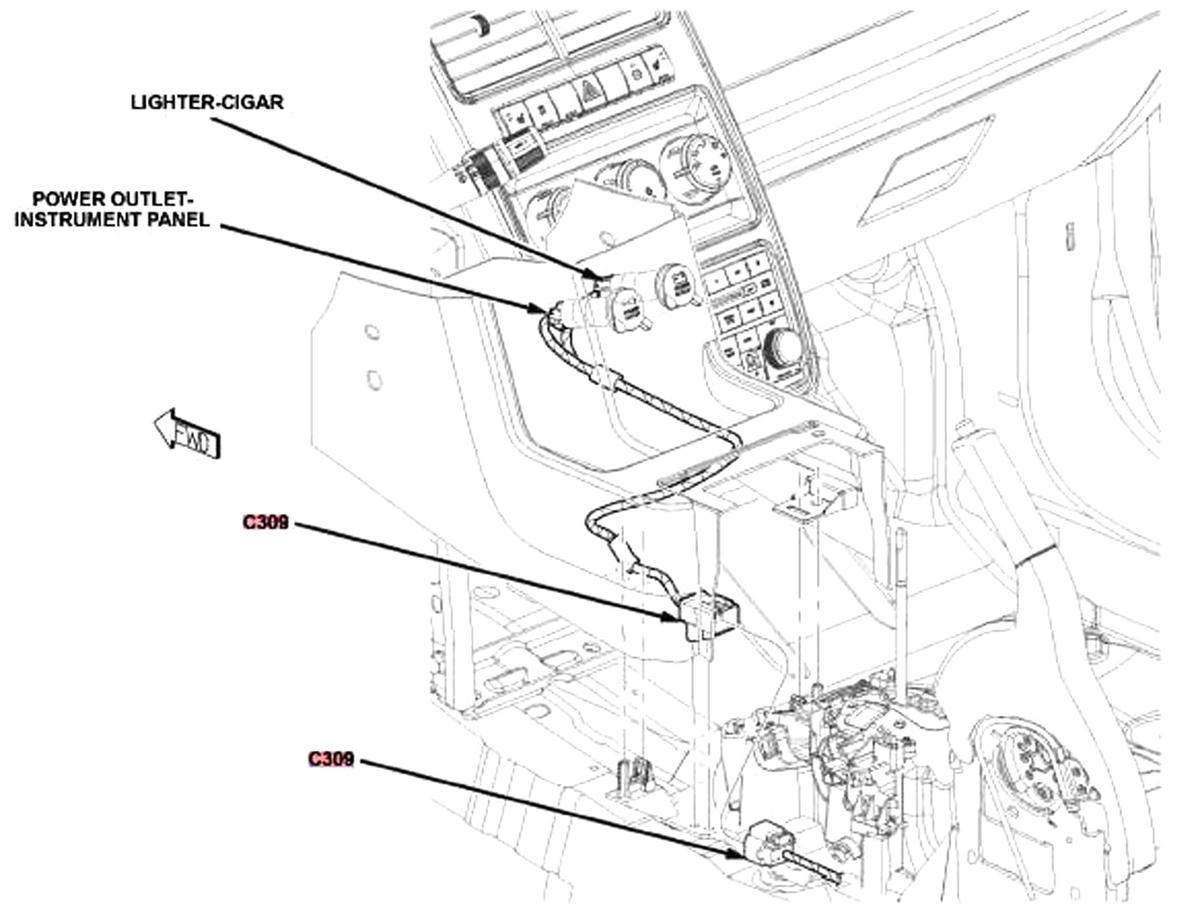

Fig 31: Under Center Of Dash

G00467483

Courtesy of CHRYSLER LLC

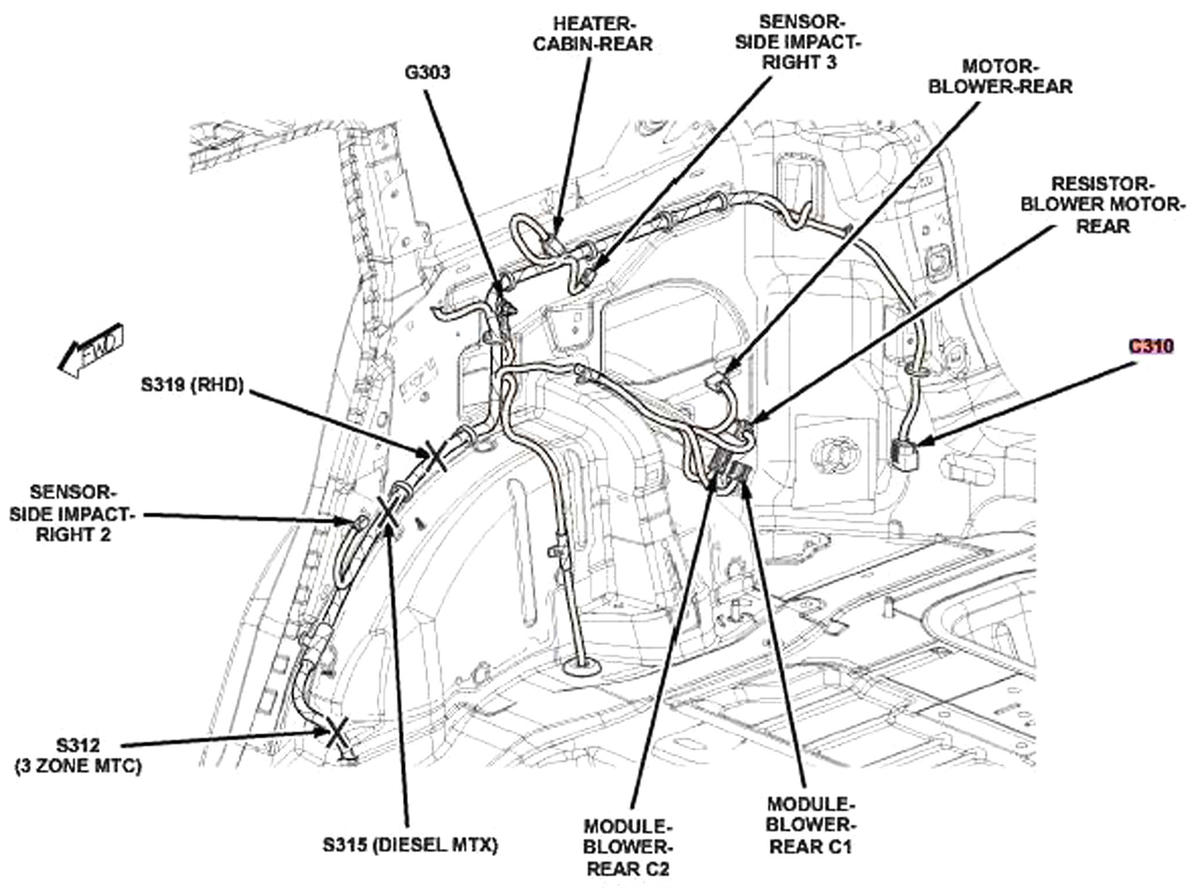

Fig 32: Right Quarterpanel

G00467484

Courtesy of CHRYSLER LLC

Fig 33: Right Quarterpanel

G00467485

Courtesy of CHRYSLER LLC

Fig 34: Driver's Seat

G00467486

Courtesy of CHRYSLER LLC

Fig 35: Floor Under Driver's Seat

G00467487

Courtesy of CHRYSLER LLC

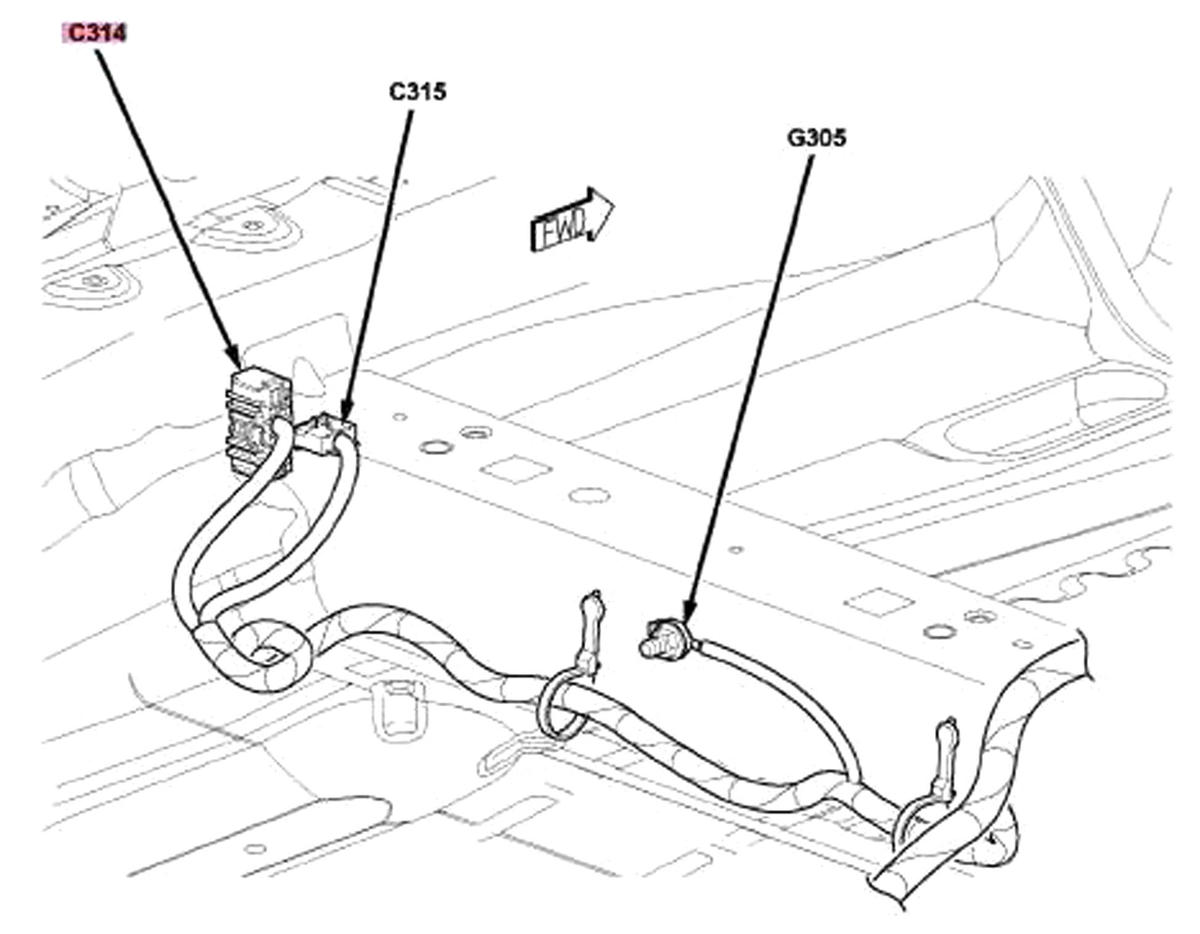

Fig 36: Floor Under Front Passenger's Seat

G00467488

Courtesy of CHRYSLER LLC

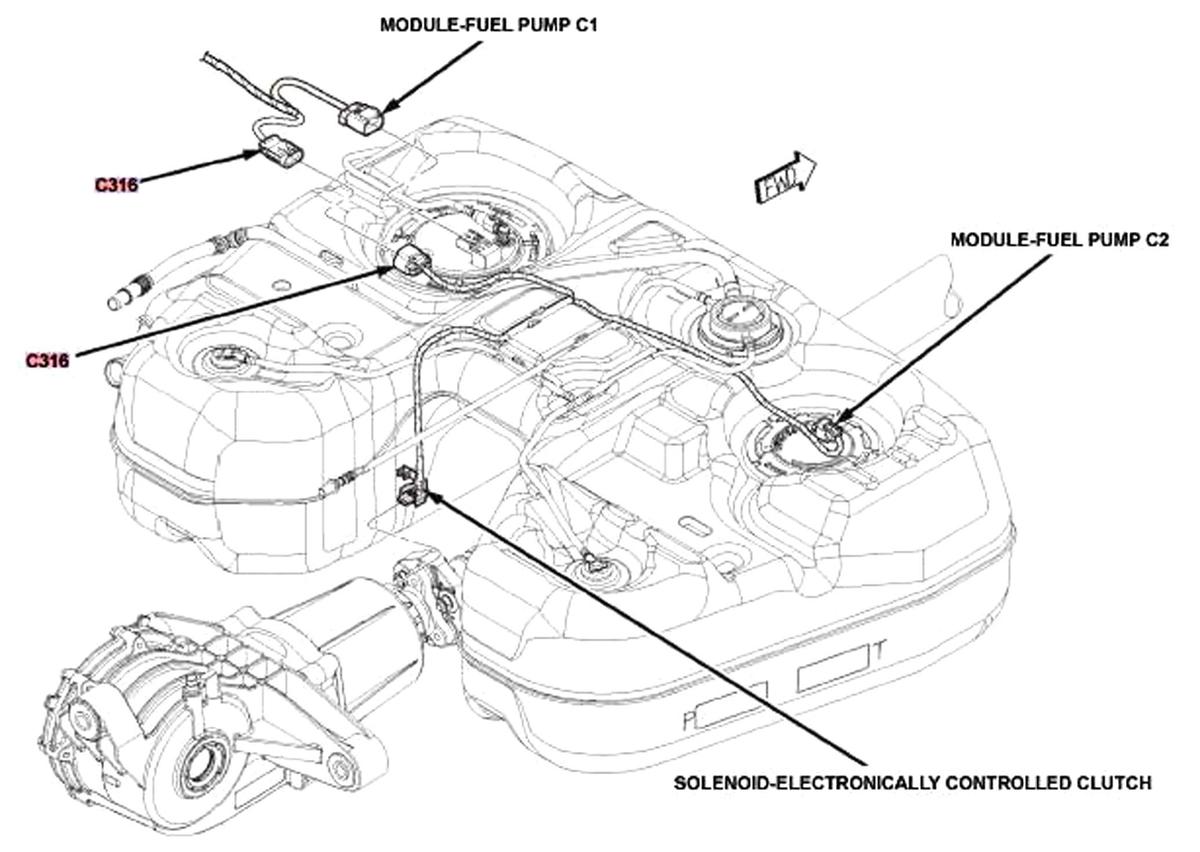

Fig 37: Top Of Fuel Tank (AWD)

G00467489

Courtesy of CHRYSLER LLC

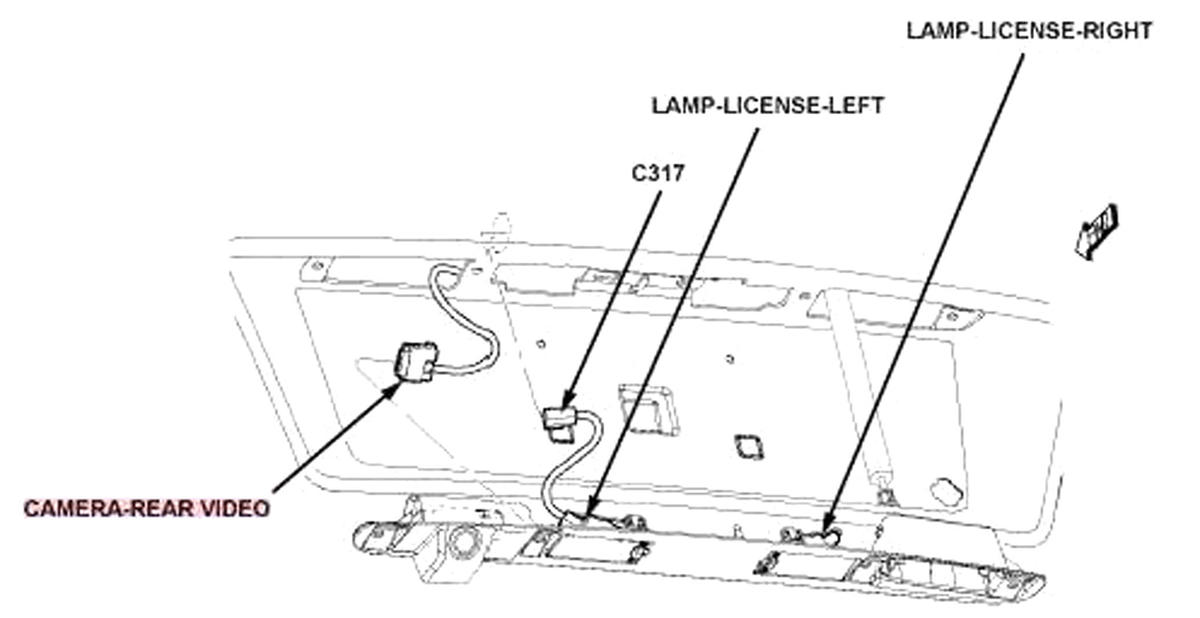

Fig 38: Liftgate

G00467730

Courtesy of CHRYSLER LLC

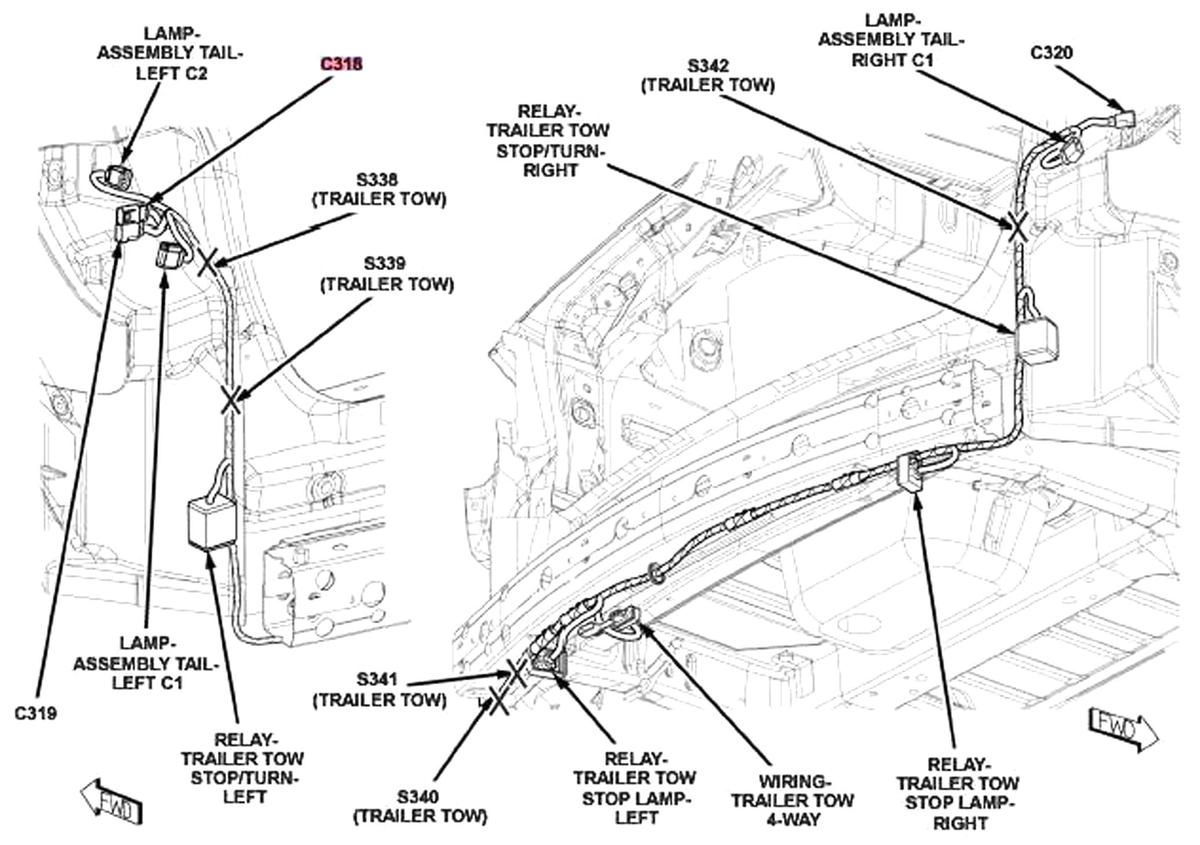

Fig 39: Rear Of Vehicle

G00467731

Courtesy of CHRYSLER LLC

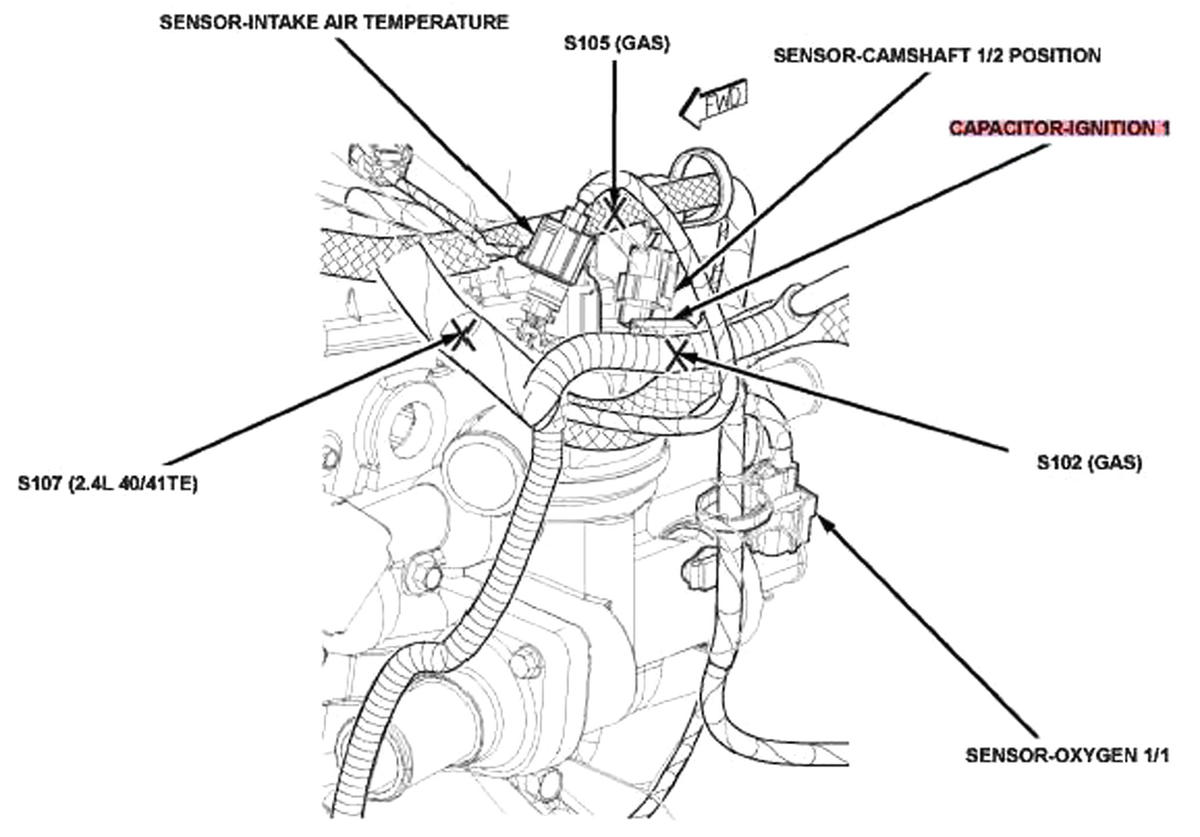

Fig 40: Left Side Of Engine (2.4L)

G00467732

Courtesy of CHRYSLER LLC

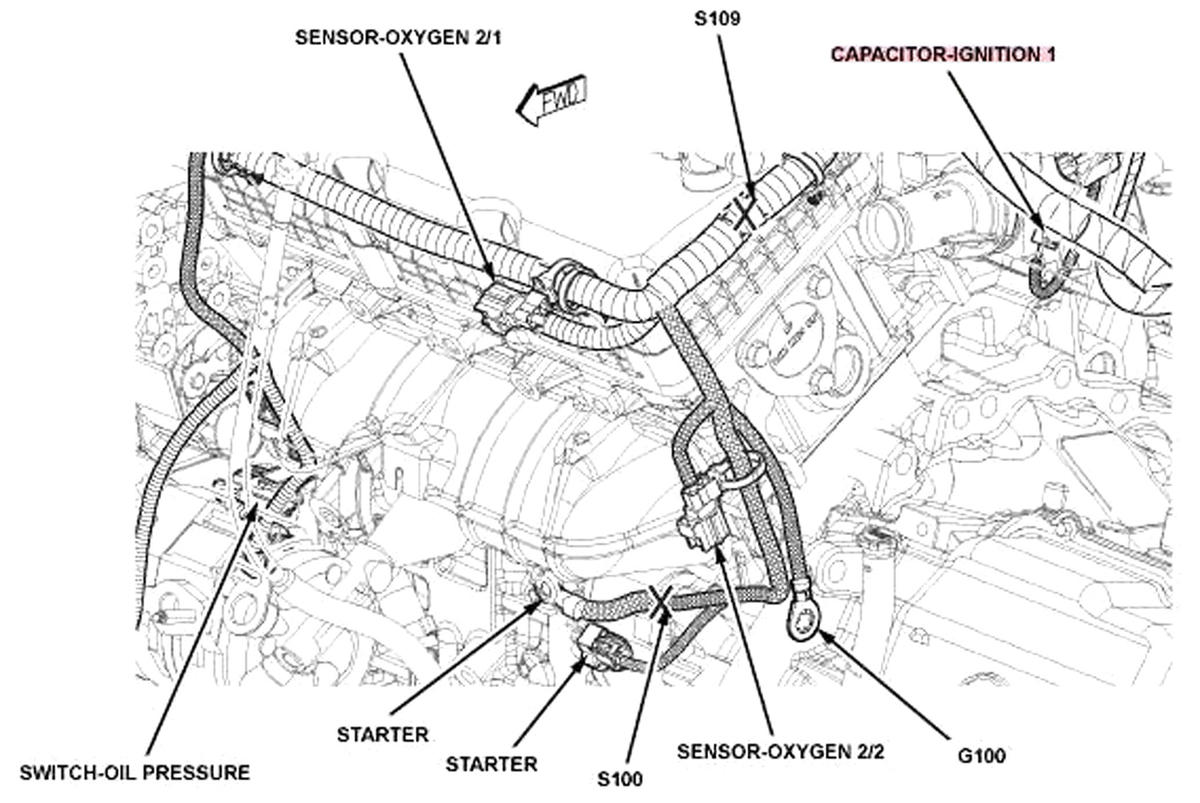

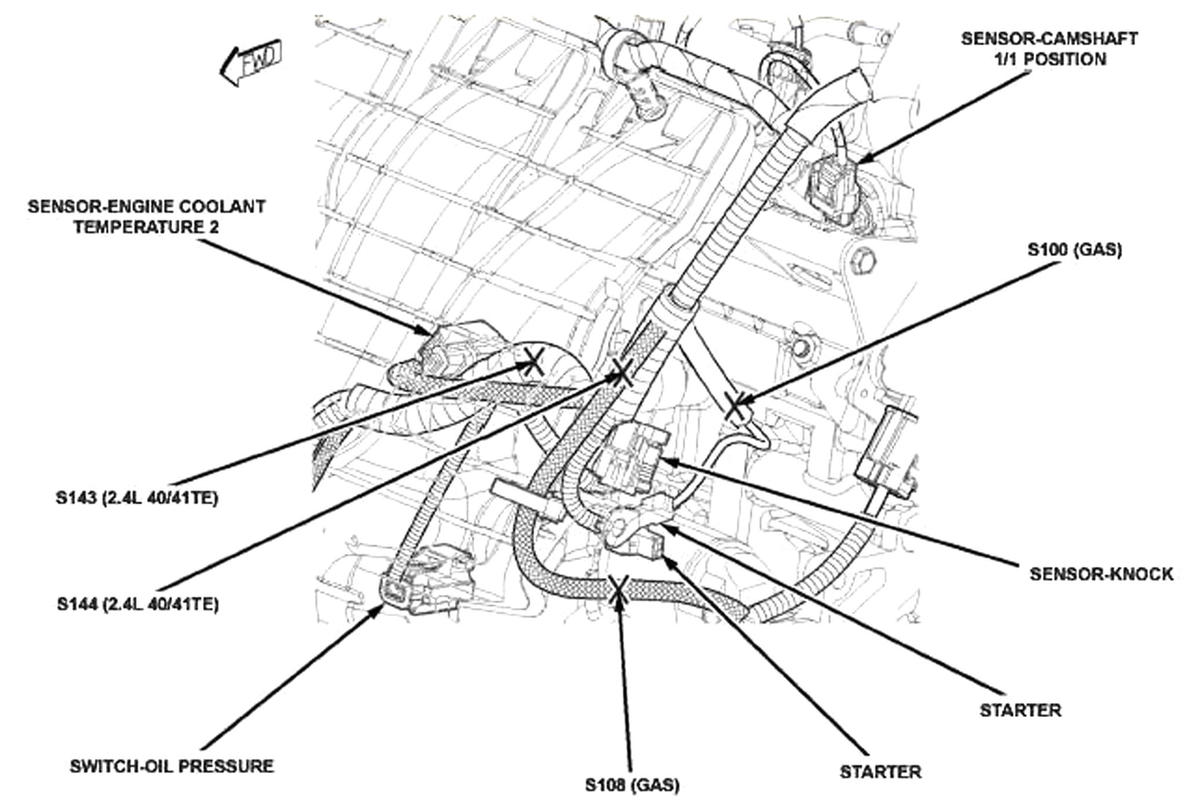

Fig 41: Left Rear Of Engine (3.5L)

G00467733

Courtesy of CHRYSLER LLC

Fig 42: Totally Integrated Power Module

G00467734

Courtesy of CHRYSLER LLC

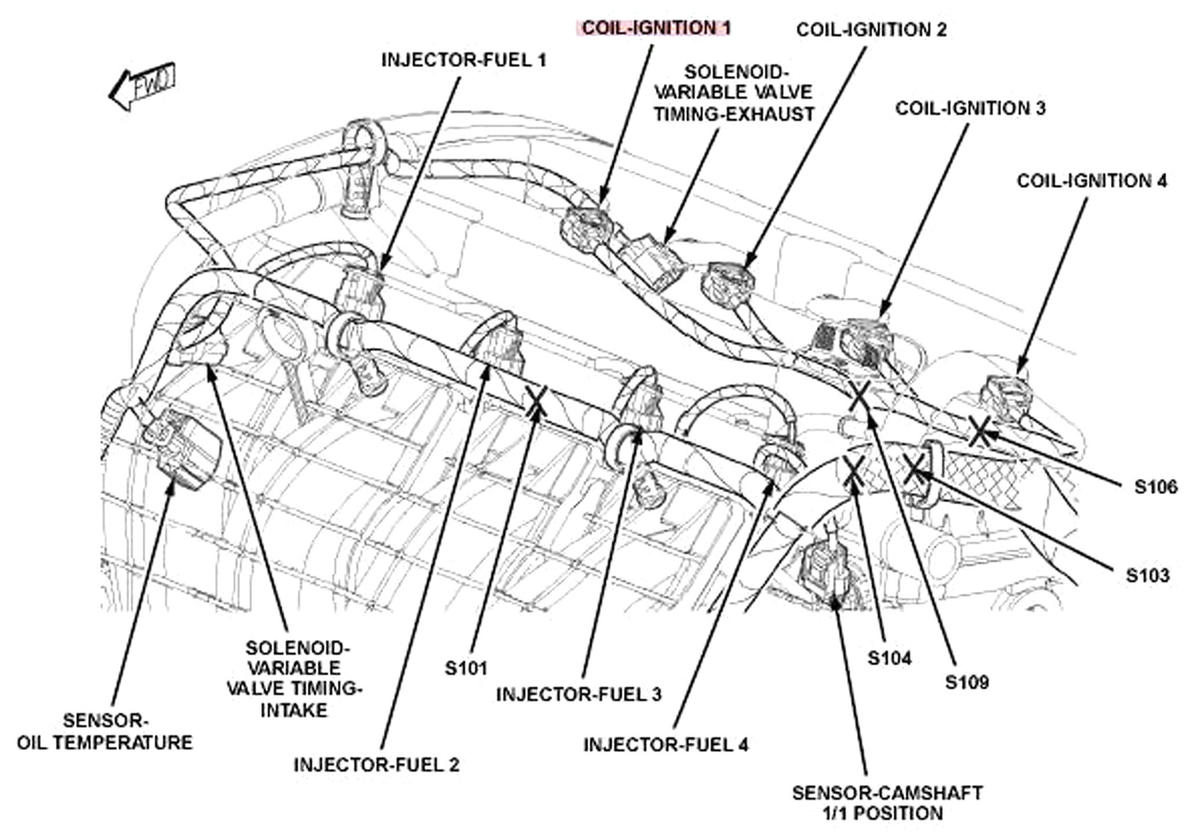

Fig 43: Top Of Engine (2.4L)

G00467737

Courtesy of CHRYSLER LLC

Fig 44: Roof

G00467738

Courtesy of CHRYSLER LLC

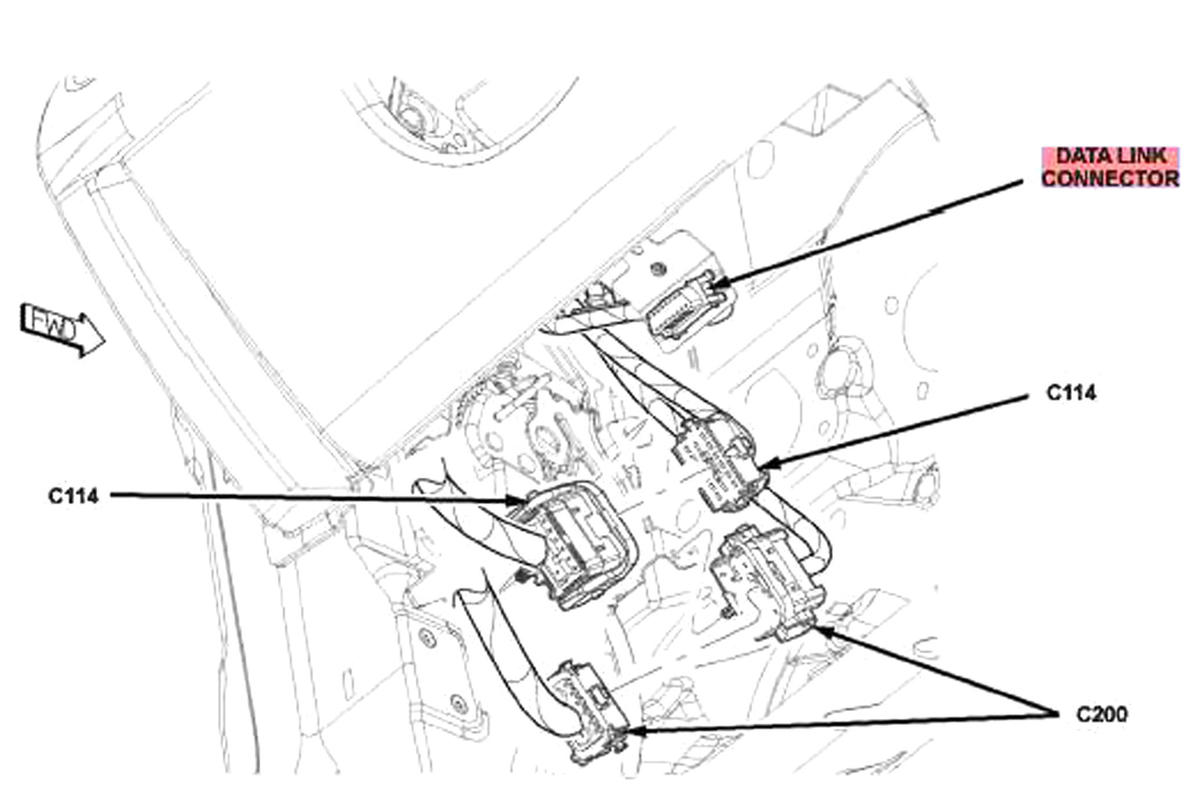

Fig 45: Lower Left Side Of Dash

G00467739

Courtesy of CHRYSLER LLC

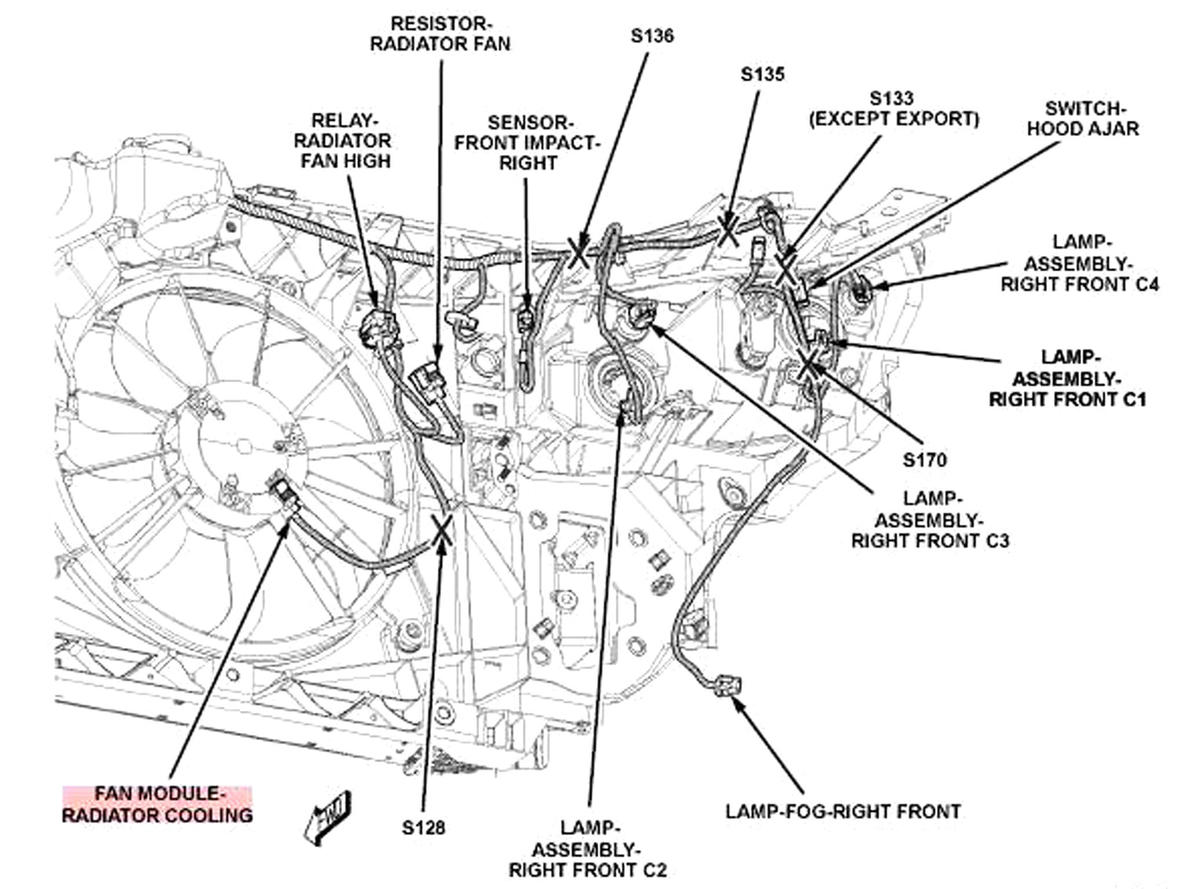

Fig 46: Right Front Of Engine Compartment

G00467740

Courtesy of CHRYSLER LLC

Fig 47: Left Rear Of Engine (2.4L & 3.5L)

G00467741

Courtesy of CHRYSLER LLC

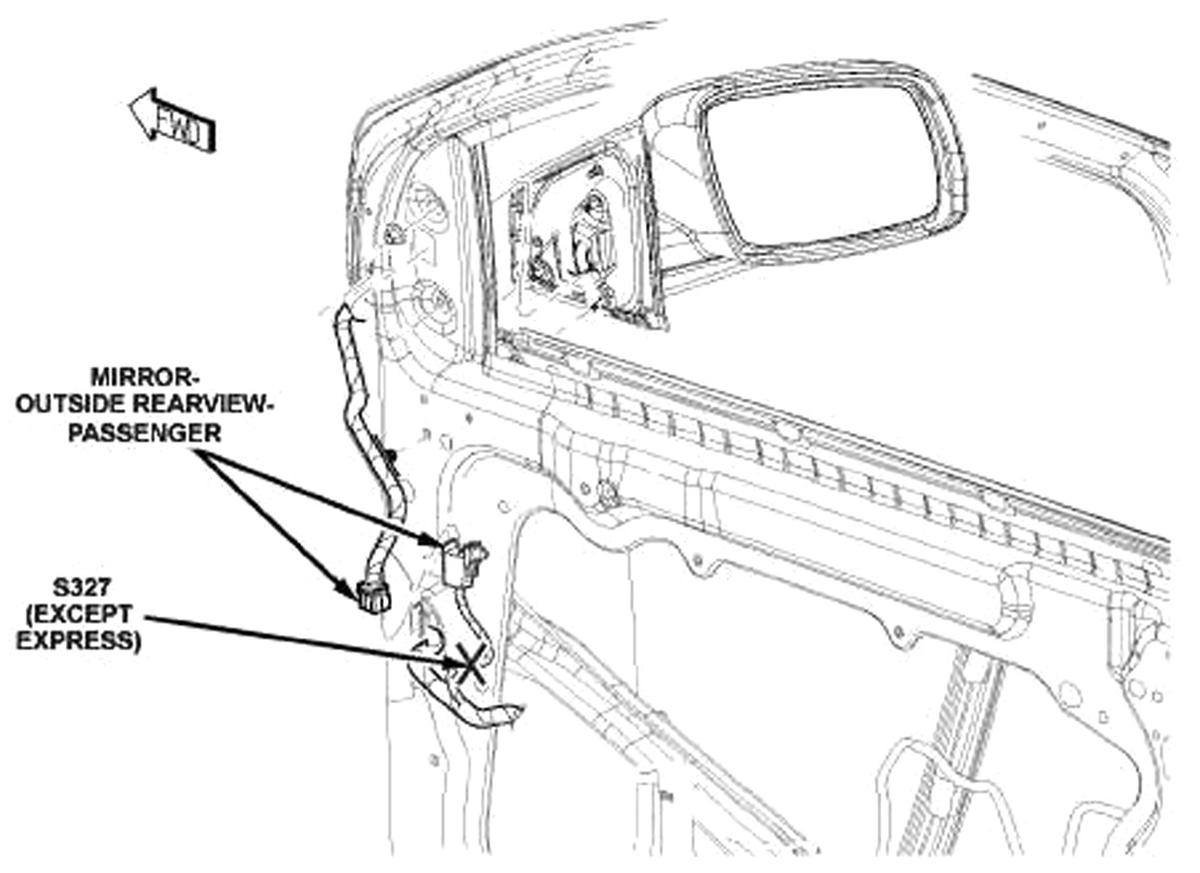

Fig 48: Front Passenger's Door (Driver's Similar)

G00467742

Courtesy of CHRYSLER LLC

Fig 49: Right Rear Of Engine Compartment

G00467743

Courtesy of CHRYSLER LLC

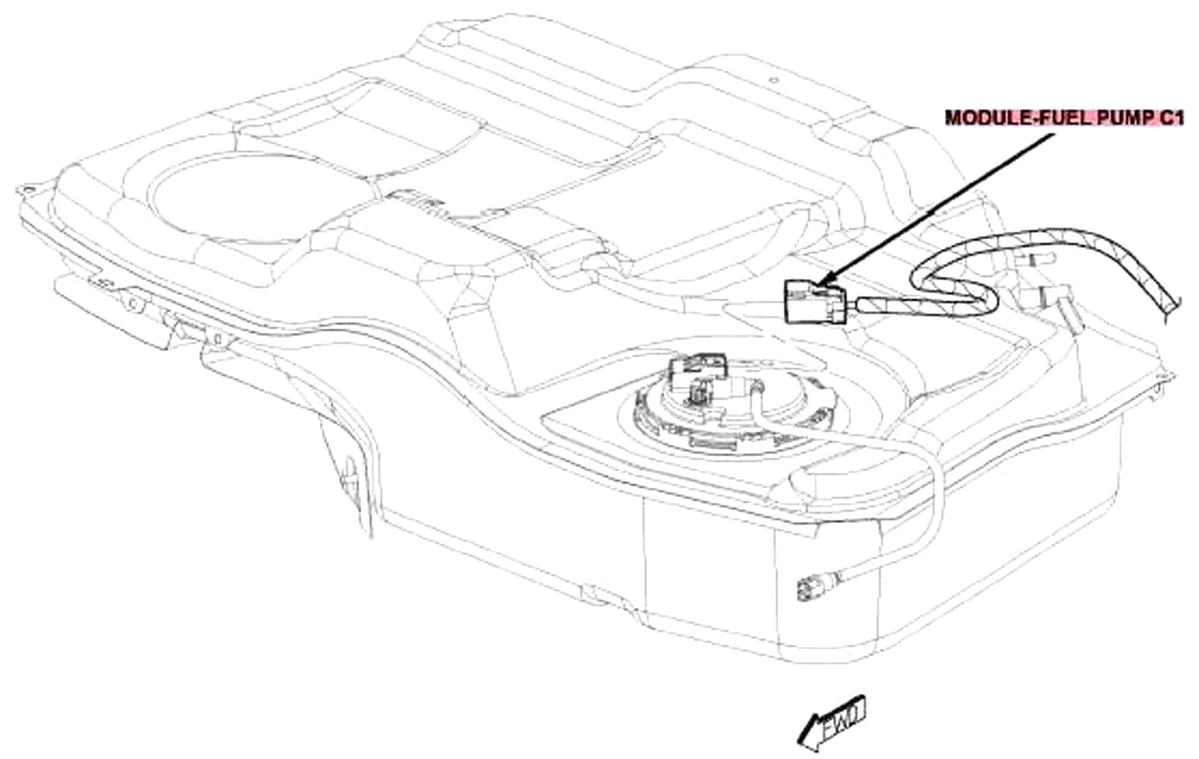

Fig 50: Top Of Fuel Tank (Except AWD)

G00467744

Courtesy of CHRYSLER LLC

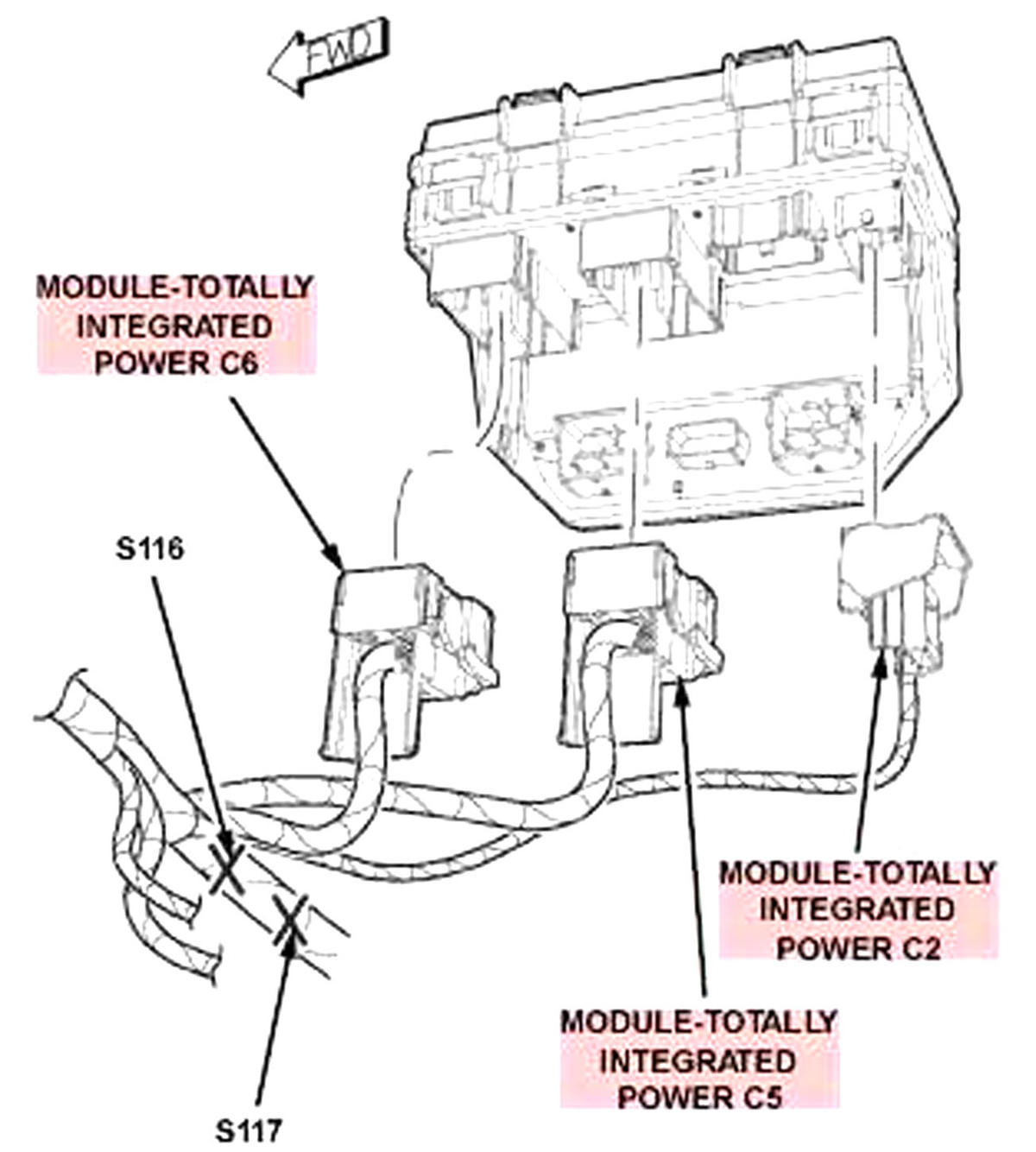

Fig 51: Totally Integrated Power Module

G00467745

Courtesy of CHRYSLER LLC

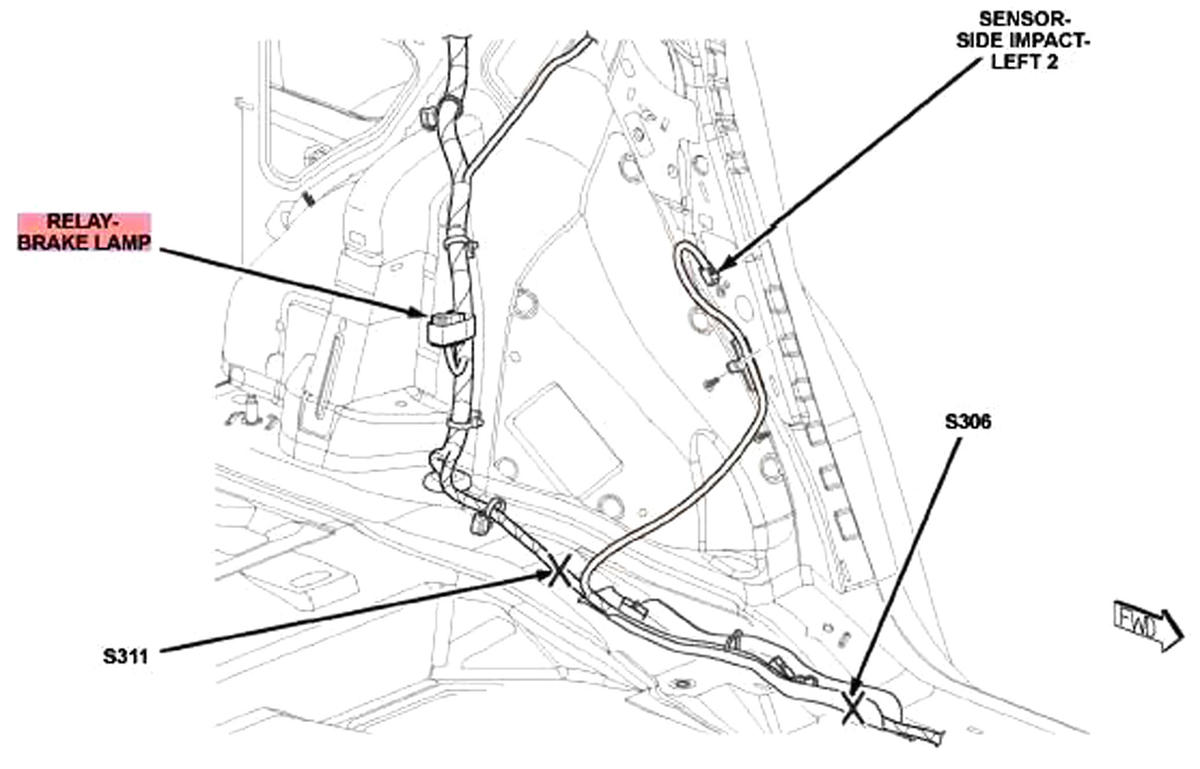

Fig 52: Left "C" Pillar

G00467747

Courtesy of CHRYSLER LLC

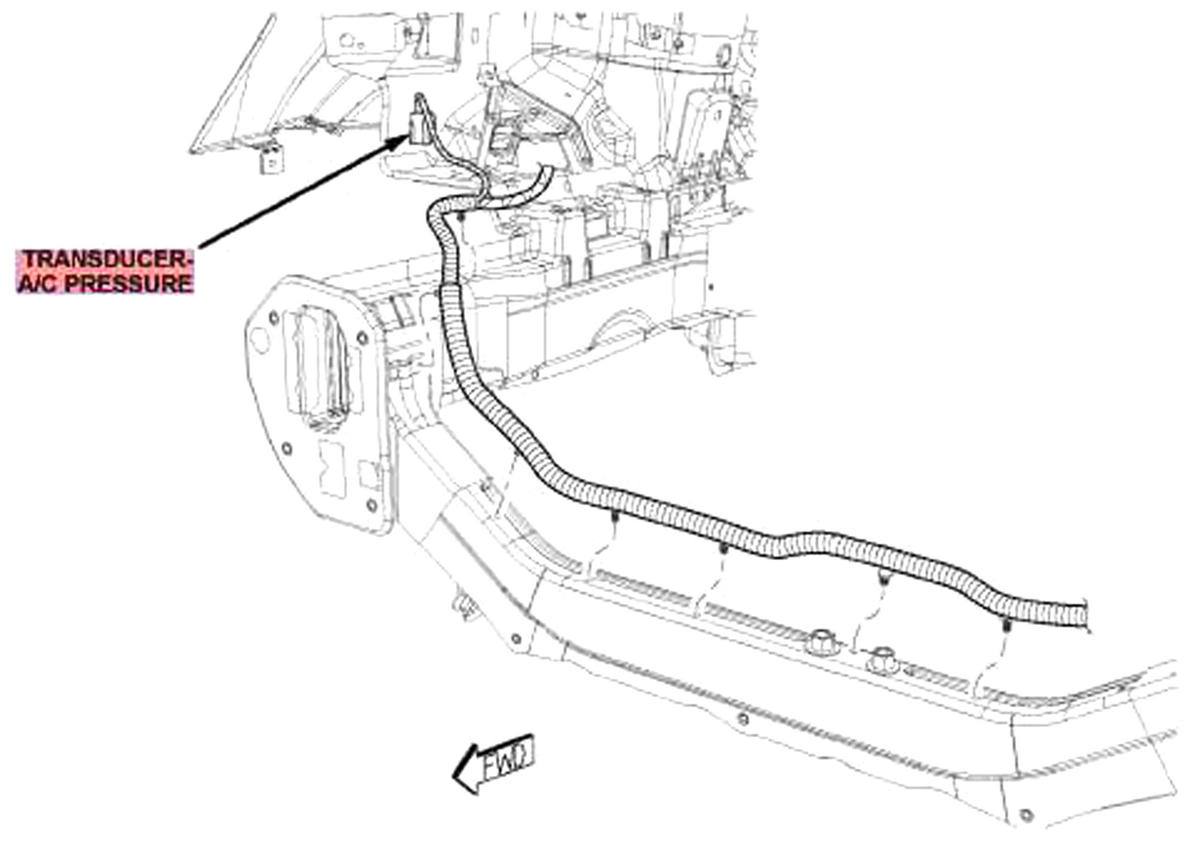

Fig 53: Right Front Of Engine Compartment

G00467749

Courtesy of CHRYSLER LLC

Fig 54: Left Side Of Dash & Kick Panel

G00467750

Courtesy of CHRYSLER LLC

Fig 55: Right "A" Pillar

G00467751

Courtesy of CHRYSLER LLC
