U0121-Lost Communication With Anti-Lock Brake Module: Notes

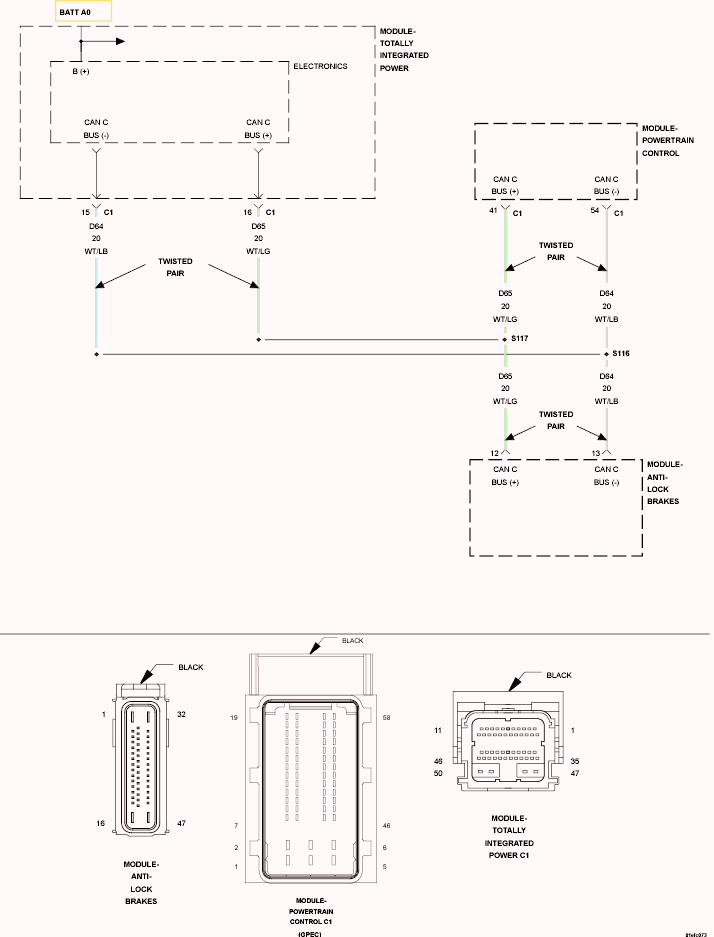

Fig 1: CAN C Bus Circuit

GC0129865

Courtesy of CHRYSLER LLC
