Home >> Dodge and Ram >> 2009 >> Challenger SE, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> Ignition System >> (Totally Integrated Power Module (TIPM) - Electrical Diagnostics) >> DTC Troubleshooting >> B2123-Ignition Run Control Circuit High >> Notes

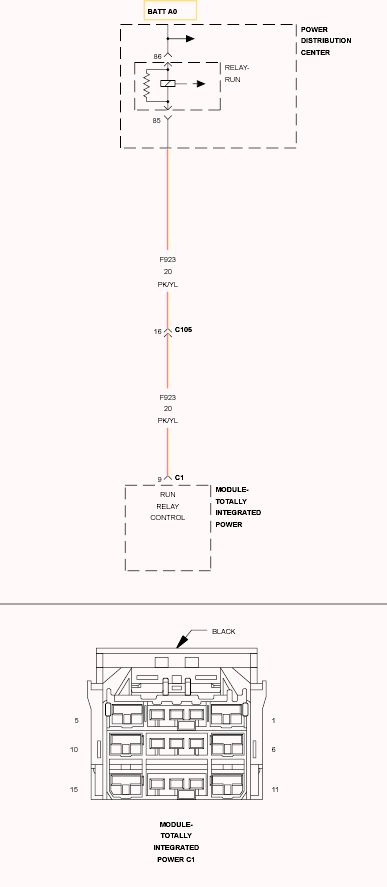

B2123-Ignition Run Control Circuit High: Notes

GC0097837

Courtesy of CHRYSLER LLC
