Home >> Dodge and Ram >> 2009 >> Challenger SE, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> Ignition System >> (Totally Integrated Power Module (TIPM) - Electrical Diagnostics) >> DTC Troubleshooting >> B2105-Ignition Run/Start 1 Control Circuit High >> Notes

B2105-Ignition Run/Start 1 Control Circuit High: Notes

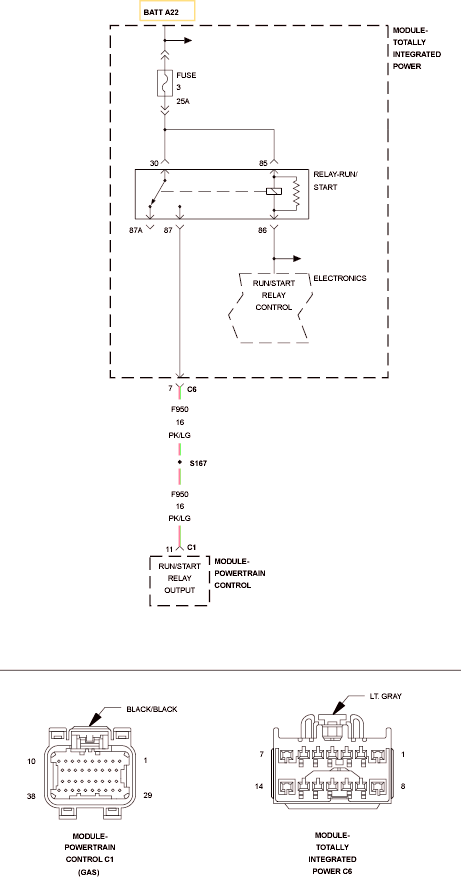

GC0097830

Courtesy of CHRYSLER LLC
