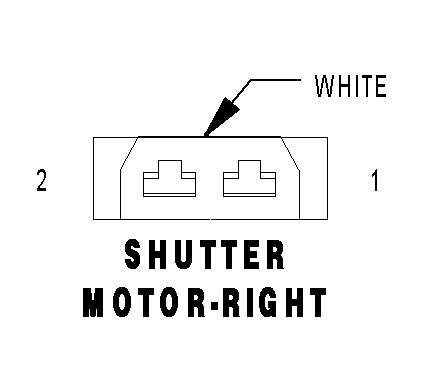

Right Shutter Motor Connector End View
Right Shutter Motor Connector End View
SHUTTER MOTOR-RIGHT - WHITE 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L34 20RD/OR
RIGHT HIGH BEAM OUTPUT
2
Z1 20BK
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
