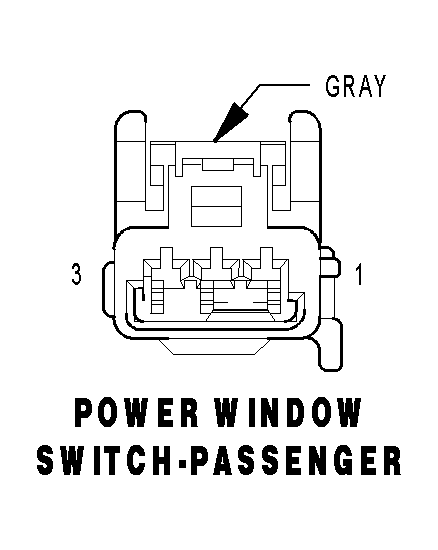

Passenger Power Window Switch Connector End View
POWER WINDOW SWITCH-PASSENGER - GRAY 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F71 20PK/TN |
IGNITION FEED |
| 2 |
Q901 20OR/VT |
PASSENGER WINDOW SWITCH RETURN |
| 3 |
Q3 20OR/TN |
PASSENGER WINDOW SWITCH MUX |
