Knock Sensor 2 Connector End View

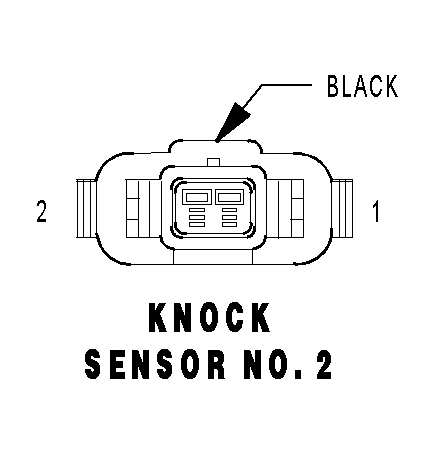

KNOCK SENSOR NO. 2 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K242 18BR/YL	KNOCK SENSOR NO. 2 SIGNAL
2	K900 18DB/DG	SENSOR GROUND
