Knock Sensor 1 Connector End View

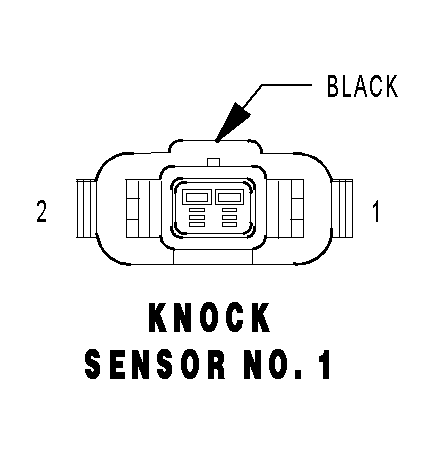

KNOCK SENSOR NO. 1 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K42 18DB/YL	KNOCK SENSOR NO. 1 SIGNAL
2	K900 18DB/DG	SENSOR GROUND
