Engine Oil Pressure Sensor Connector End View

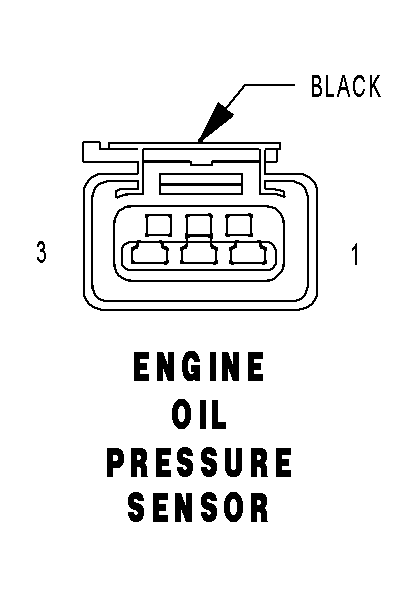

ENGINE OIL PRESSURE SENSOR - BLACK 3 WAY

GCZB580089Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F855 20PK/YL 5V SUPPLY
2 G6 18VT/GY OIL PRESSURE SENSOR SIGNAL
3 K900 20DB/DG SENSOR GROUND
