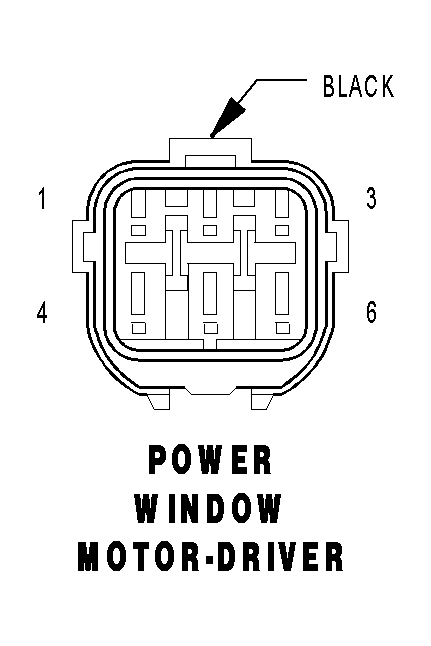

Driver Power Window Motor Connector End View
POWER WINDOW MOTOR-DRIVER - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
M1 20YL/VT |
IOD-B(+) |
| 2 |
Q301 20OR/WT |
DRIVER WINDOW HALL SIGNAL |
| 3 |
Z1 20BK |
GROUND |
| 4 |
Q21 18WT |
DRIVER WINDOW DOWN DRIVER |
| 5 |
Q11 18OR |
DRIVER WINDOW UP DRIVER |
| 6 |
- |
- |
