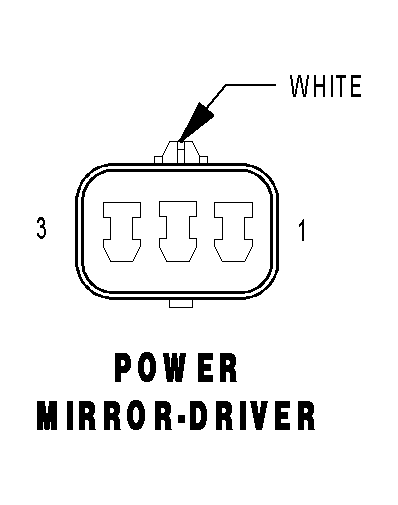

Driver Power Mirror Connector End View
POWER MIRROR-DRIVER - WHITE 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P71 20TN/DG |
DRIVER MIRROR UP DRIVER |
| 2 |
P73 20TN/VT |
DRIVER MIRROR COMMON DRIVER (LEFT/DOWN) |
| 3 |
P75 20TN/LG |
DRIVER MIRROR RIGHT DRIVER |
