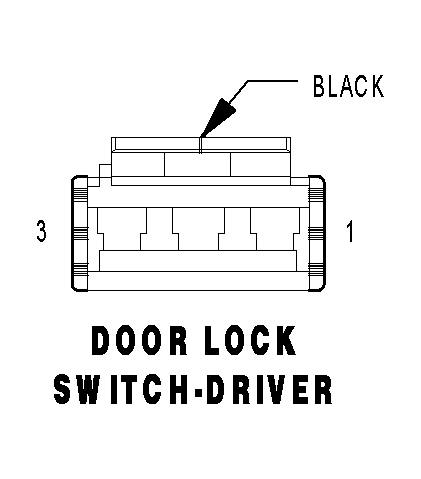

Driver Door Lock Switch Connector End View

DOOR LOCK SWITCH-DRIVER - BLACK 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F71 20PK/TN	IGNITION FEED
2	P97 20LG/YL	DRIVER DOOR SWITCH MUX
3	P901 20OR/LG	DRIVER DOOR SWITCH RETURN
