Interior Lighting

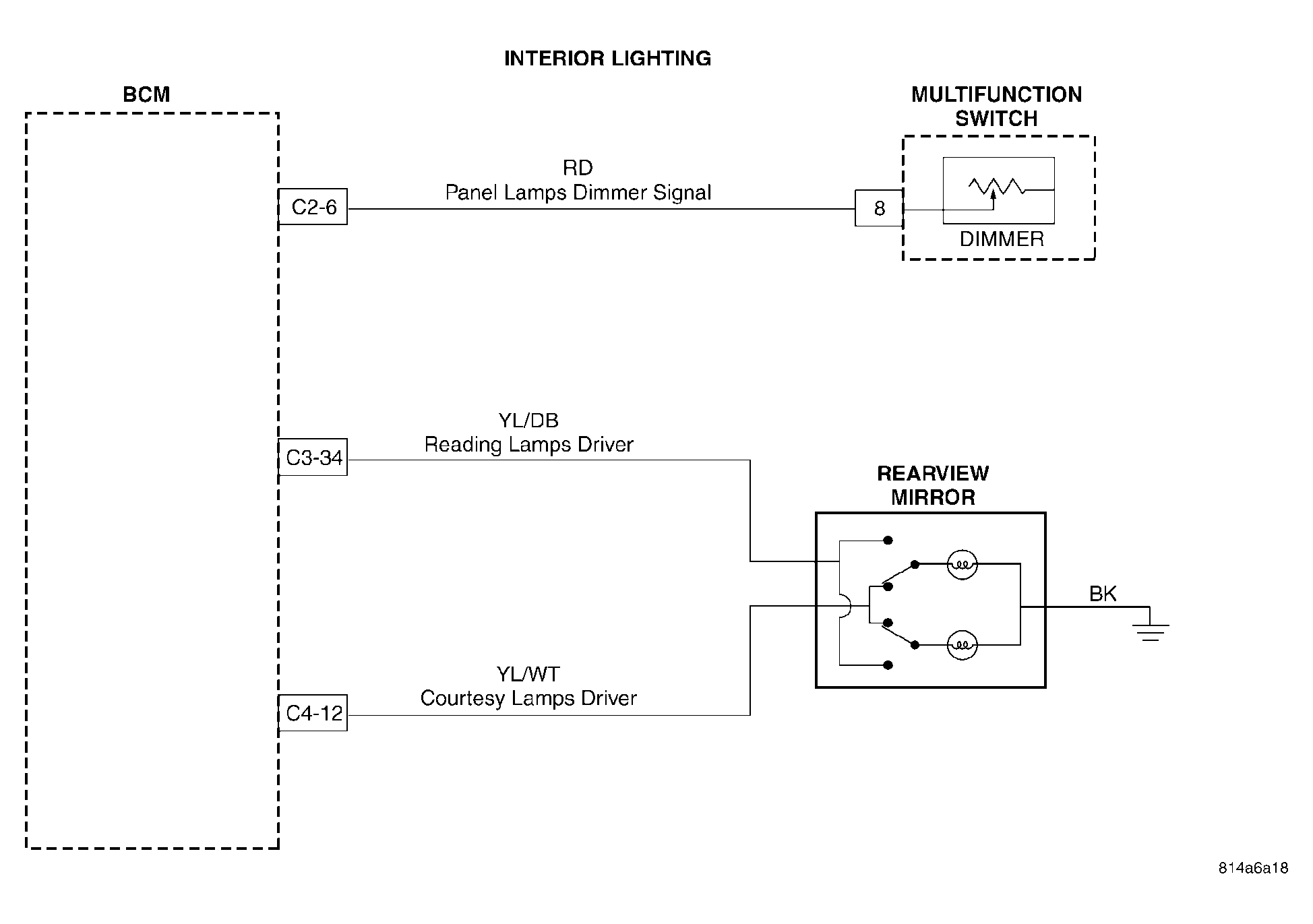

Fig 1: Identifying Interior Lighting Schematic Diagrams

G04550496

Courtesy of DAIMLERCHRYSLER CORP.
