Powertrain Control Module C3 - Black/Gray 32 Way

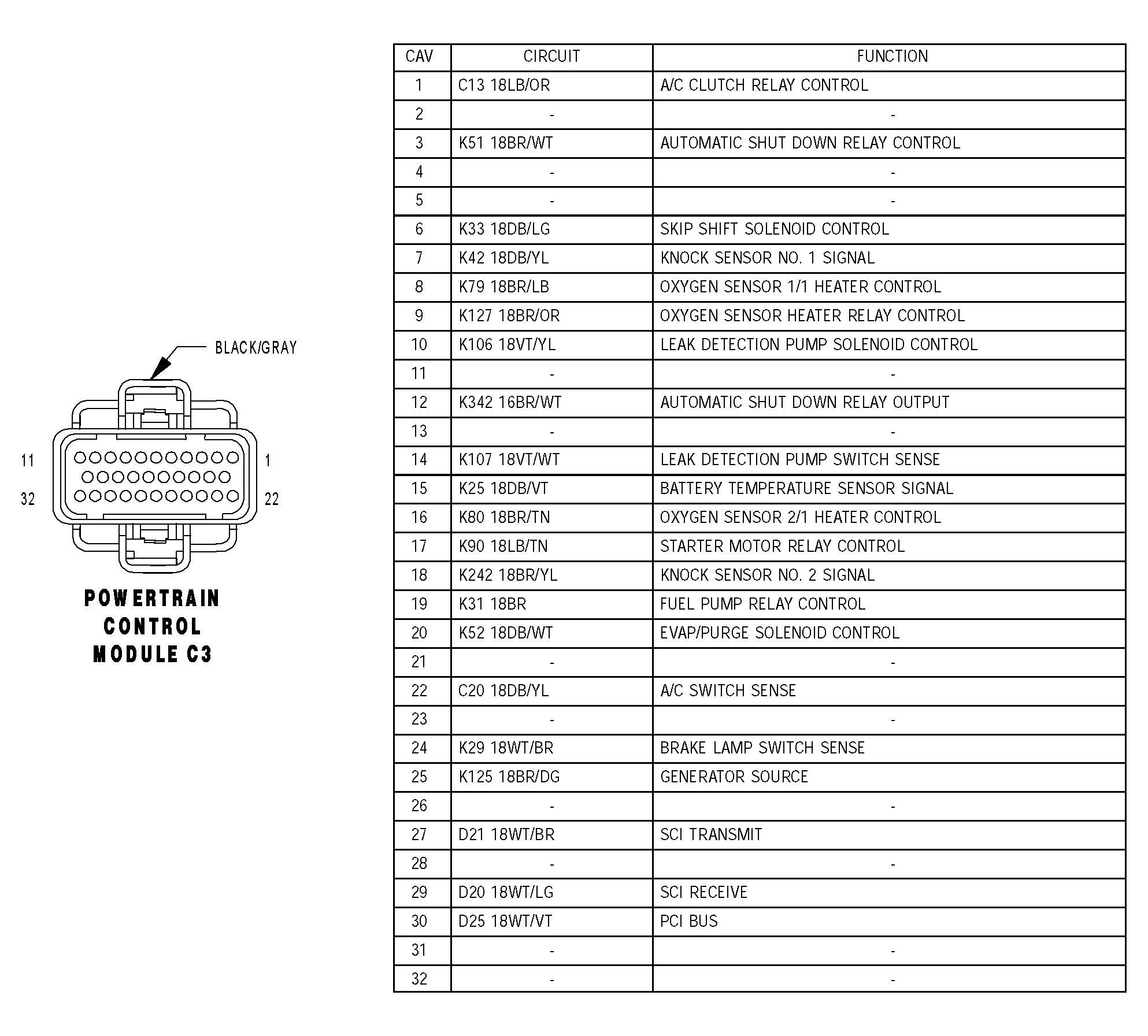

Fig 1: Identifying Powertrain Control Module C3 - Black/Gray 32 Way Connector Pinout

G04550467

Courtesy of DAIMLERCHRYSLER CORP.
