RECALL CAMPAIGN 2016040001 - UPDATE ENGINE CONTROL MODULE (ECM) SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 2016040001, Date of Issue: April 2016

SPRINTER:

Model 904, Model Years 2004 - 2006

SUBJECT

Model 904, Model Years 2004 - 2006

Update Engine Control Module (ECM) Software

This Recall Campaign has been initiated because Daimler AG (DAG), the manufacturer of Freightliner Sprinter vehicles, has determined that in the event of a Mass Air Flow (MAF) adaptation error, the vehicle's Check Engine Light (CEL) might not illuminate, and the corresponding fault code will not be stored in the ECU as required by law. To remedy this issue, an authorized Freightliner Dealer will update the ECU software.

The authorized Freightliner Sprinter service facilities will provide the owner for each vehicle a certificate (attached) which indicates that the vehicle has been corrected under the recall program. A proof of correction label (sample attached) must be applied to vehicles receiving the ECU software update.

Prior to performing this Recall Campaign:

Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
Please review the entire Recall Campaign bulletin and follow the repair procedure exactly as described.

Please note that Recall Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 342 vehicles are involved.

PROCEDURE

A. Procedure overview

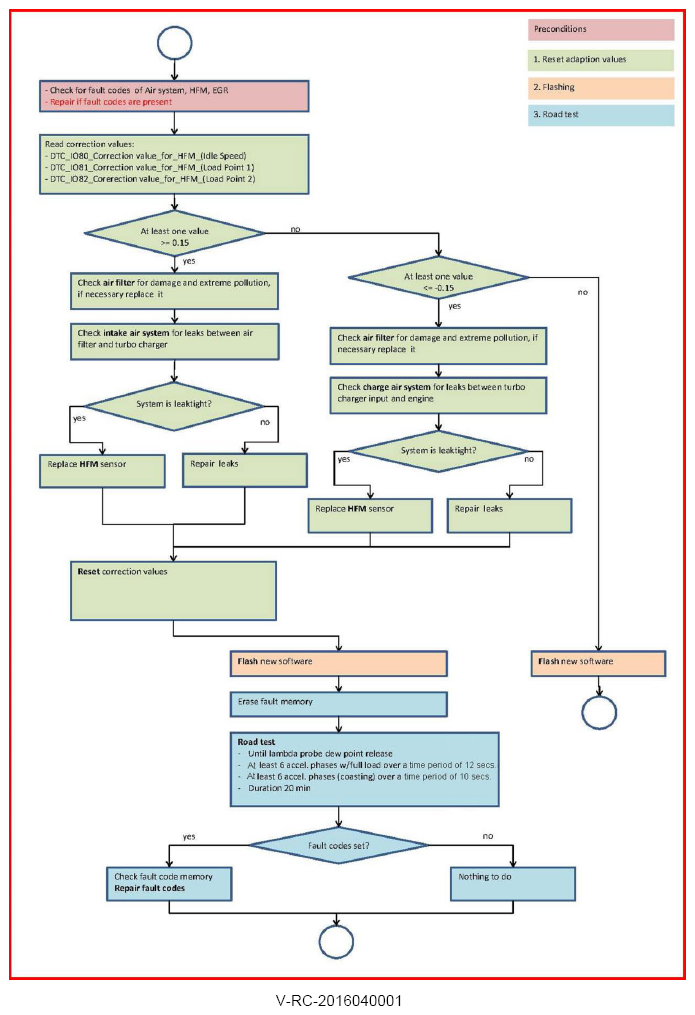

B. Repair air intake components and update CDI control module software

NOTE:

Use DAS/Xentry 03-04/16 with add-on 5557 with all associated patches or higher.
Follow the steps exactly as described in DAS/Xentry.
Connect battery charger (battery voltage >12.5V).
Ensure all electrical consumers are switched-off.
In the event of software/SCN update issues, contact Star Diagnosis User Help Desk. Please refer to the "pre-call" check list before contacting UHD
Refer to Star Diagnosis System (SDS) Best Practices Guide.

Perform short test.
NOTE:
No current fault codes for the following components may be present:
- Intake air system
- Charge air system
- Exhaust gas recirculation
- Read out fault memory and process any existing fault codes according to the specifications.
IMPORTANT: If air mass sensor needs replacement do not perform teach-in process or reset adaptation values at this time.
Update CDI software: Control module programming:

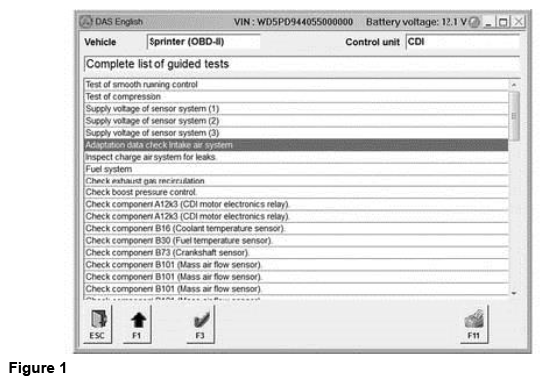

Common Rail control unit -> General list of guided tests -> Adaptation of intake air system data check.
Follow on-screen instructions. Repair all fault codes set during road test.

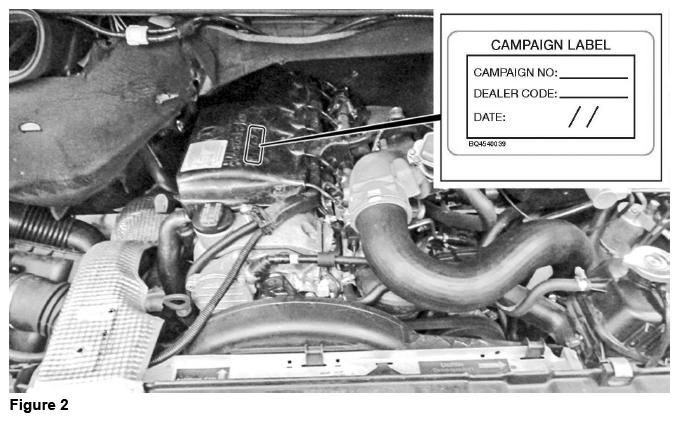

Apply Proof of Correction Label (BQ 4 54 0039) to area identified in Figure 2. Fill in Campaign number: 2016040001, your dealer code, and the date of the repair, using a black permanent marker.
NOTE: Clean engine's bonding surface prior to affixing label.

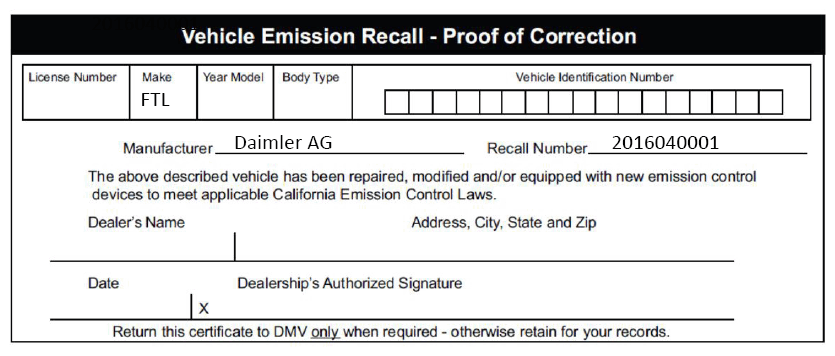

Provide the owner with the completed and signed Proof of Correction Certificate (attached), after you scan a completed form and attach to the RO.

PRIMARY PARTS INFORMATION

Qty.	Part Name	Part Number	Estimated Replacement Rate
1	Label (CA Dealers Only)	BQ 4 54 0039	100%

WARRANTY INFORMATION

Operation:

Perform short test then update CDI control module software (02-9377)
Check charge air system for leak tightness (with XENTRY/DAS connected) (02 9379)
Operations: Perform a test drive (with XENTRY/DAS connected) (02 9380).

WARRANTY INFORMATION

Damage Code	Operation Number	Labor Time (hrs.)
09 931 63 7	02-9377	1.2
	02 9379	0.9
	02 9380	1.2

NOTE:

If a problem is found continue repair under this given damage code. Claim necessary parts and labor as per EPC and ASRA.
Parts replacement will be audited.
Operation Number labor times are subject to change

Proof of Correction Form: California Dealers Only
