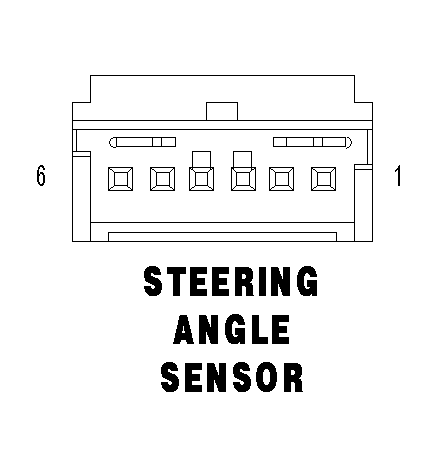

Steering Angle Sensor Connector End View

STEERING ANGLE SENSOR

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20DG/WT	CAN C BUS (-)
2	-	-
3	20DG	CAN C BUS (+)
4	-	-
5	20BK/RD	FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6	20BR	GROUND
