Intake Air Temperature Sensor Connector End View
Intake Air Temperature Sensor Connector End View

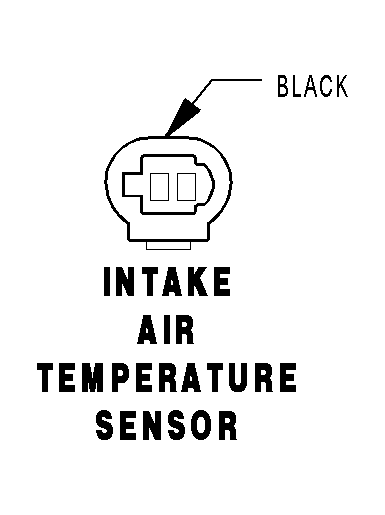

INTAKE AIR TEMPERATURE SENSOR - BLACK
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR/DG
INTAKE AIR TEMPERATURE SENSOR GROUND
2
18DG/WT
INTAKE AIR TEMPERATURE SENSOR SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
