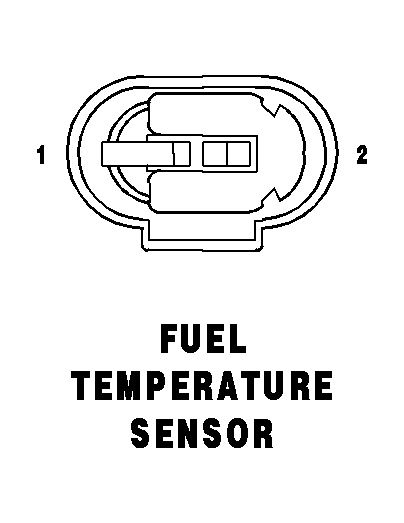

Fuel Temperature Sensor Connector End View
Fuel Temperature Sensor Connector End View
FUEL TEMPERATURE SENSOR
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18DG/BK
FUEL TEMPERATURE SENSOR GROUND
2
18BL/GY
FUEL TEMPERATURE SENSOR SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
