Engine Oil Sensor Connector End View

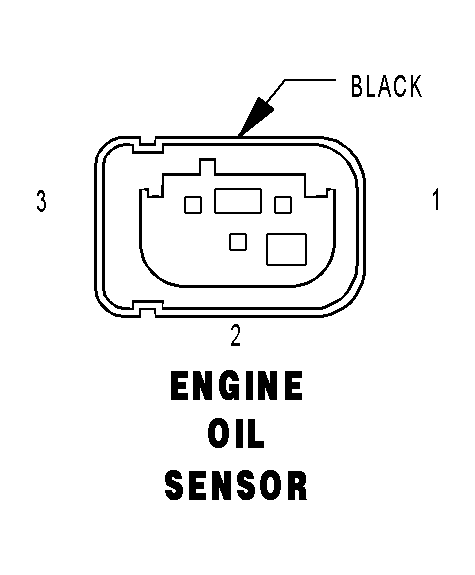

ENGINE OIL SENSOR - BLACK

GCVA580135Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 20GY/BL ENGINE OIL SENSOR SIGNAL
2 20BR/BK SENSOR GROUND
3 20RD/YL ENGINE OIL SENSOR 5 VOLT SUPPLY
