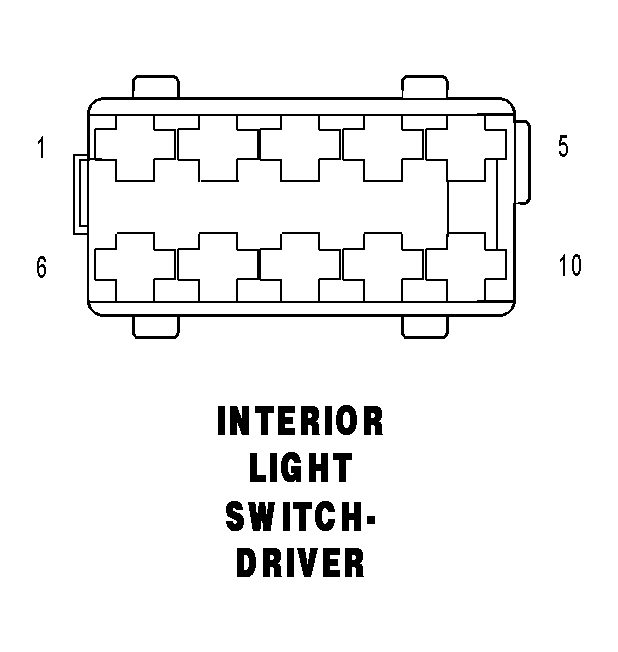

Driver Interior Light Switch Connector End View

INTERIOR LIGHT SWITCH-DRIVER

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	16RD/YL	FUSED B(+)
4	-	-
5	-	-
6	-	-
7	16YL	INTERIOR LIGHT SWITCH OUTPUT
8	-	-
9	-	-
10	-	-
