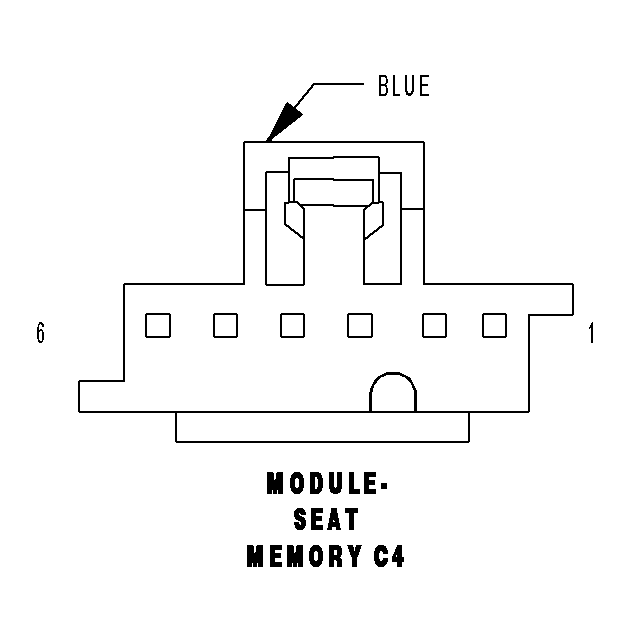

Seat Memory Module Connector End View (C4)
MODULE-SEAT MEMORY C4 - BLUE 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P28 20DB/WT |
DRIVER SEAT SWITCH MUX RETURN |
| 2 |
P311 20VT |
DRIVER SEAT FRONT VERTICAL/RECLINER SWITCH MUX |
| 3 |
P309 20BR |
DRIVER SEAT REAR VERTICAL/HORIZONTAL SWITCH MUX |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
P29 20LG/WT |
DRIVER SEAT SWITCH MUX SUPPLY |
