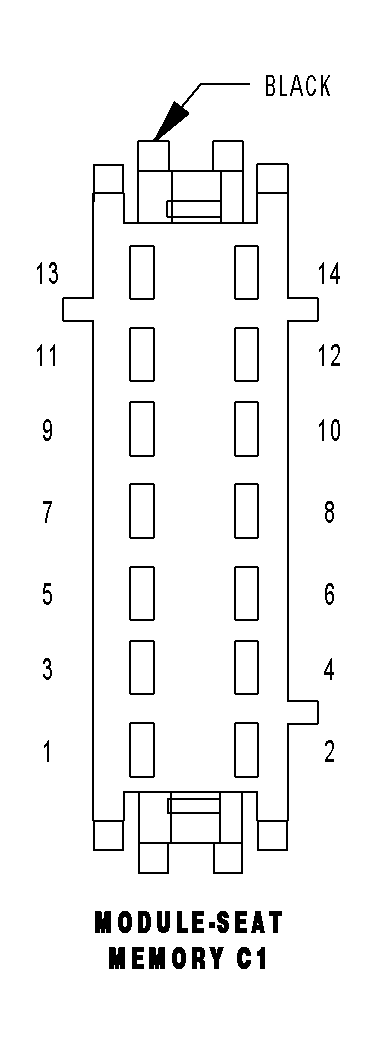

Seat Memory Module Connector End View (C1)
MODULE-SEAT MEMORY C1 - BLACK 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P205 18LG/DB | ADJUSTABLE PEDALS MOTOR FORWARD |
| 2 | P206 18LG/TN | ADJUSTABLE PEDALS MOTOR REARWARD |
| 3 | - | - |
| 4 | - | - |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | - | - |
| 7 | D55 20WT/OR | CAN B BUS (+) |
| 8 | A940 12RD/GY | FUSED B(+) |
| 9 | G11 20VT/TN | ADJUSTABLE PEDALS SENSOR SUPPLY |
| 10 | Z930 12BK/LB | GROUND |
| 11 | - | - |
| 12 | G912 20VT/WT | ADJUSTABLE PEDALS SENSOR RETURN |
| 13 | - | - |
| 14 | G12 20VT/BR | ADJUSTABLE PEDALS SENSOR SIGNAL |
