Output Speed Sensor Connector End View
Output Speed Sensor Connector End View

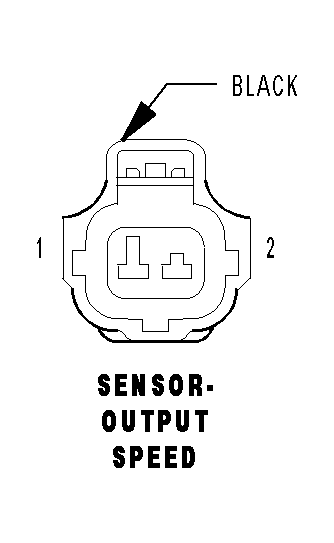

SENSOR-OUTPUT SPEED - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T14 20DG/BR
OUTPUT SPEED SENSOR SIGNAL
2
T13 20DG/VT
SPEED SENSOR GROUND
Courtesy of DAIMLERCHRYSLER CORP.
