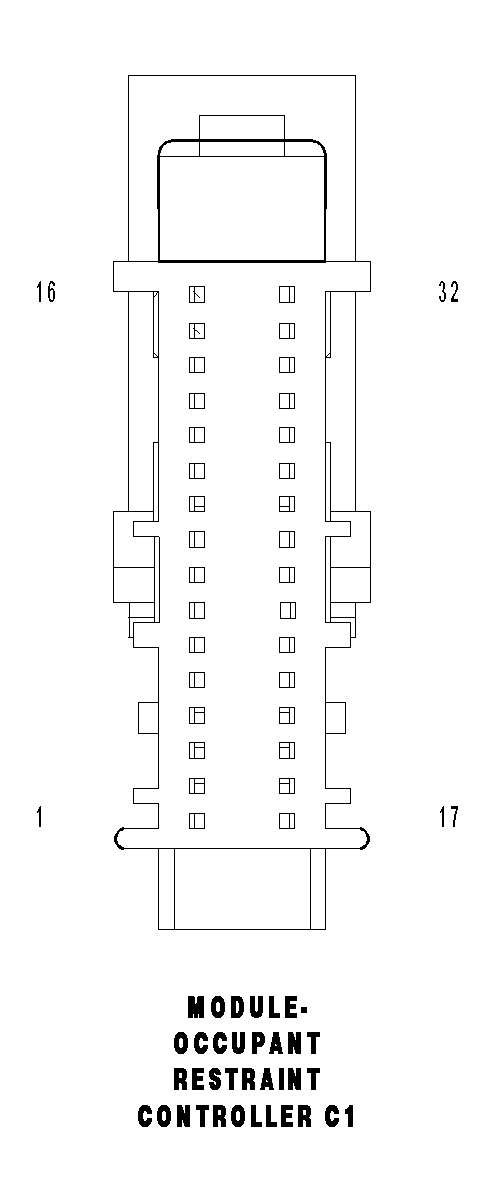

Occupant Restraint Controller Module Connector End View (C1)
MODULE-OCCUPANT RESTRAINT CONTROLLER C1 - 32 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | R53 20LG/YL | DRIVER SEAT BELT TENSIONER LINE 2 |
| 10 | R55 20LG/DG | DRIVER SEAT BELT TENSIONER LINE 1 |
| 11 | R56 20LB/DG | PASSENGER SEAT BELT TENSIONER LINE 1 |
| 12 | R54 20LB/YL | PASSENGER SEAT BELT TENSIONER LINE 2 |
| 13 | R1 20LB/BR (SIDE AIRBAG) | LEFT CURTAIN SQUIB 1 LINE 2 |
| 14 | R3 20LB/OR (SIDE AIRBAG) | LEFT CURTAIN SQUIB 1 LINE 1 |
| 15 | R4 20OR/LB (SIDE AIRBAG) | RIGHT CURTAIN SQUIB 1 LINE 1 |
| 16 | R2 20WT/LB (SIDE AIRBAG) | RIGHT CURTAIN SQUIB 1 LINE 2 |
| 17 | F201 20PK/OR | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 18 | F100 20PK/VT | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 19 | - | - |
| 20 | Z104 20BK/LG | GROUND |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | R14 20TN/LG (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 1 SIGNAL |
| 28 | R16 20BR/LG (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 1 GROUND |
| 29 | R15 20BR/GY (SIDE AIRBAG) | LEFT SIDE IMPACT SENSOR 1 GROUND |
| 30 | R13 20LG/BR (SIDE AIRBAG) | LEFT SIDE IMPACT SENSOR 1 SIGNAL |
| 31 | - | - |
| 32 | - | - |
