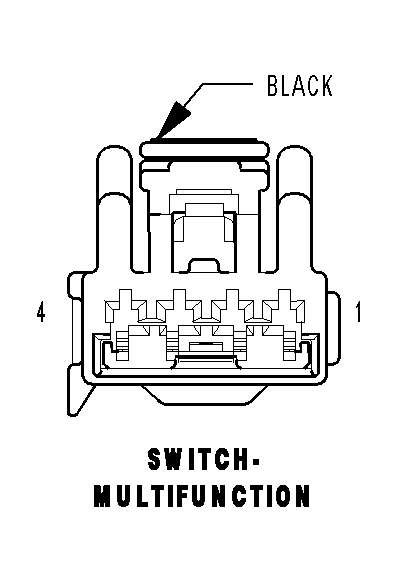

Multifunction Switch Connector End View
SWITCH-MULTIFUNCTION - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G194 20VT/RD |
HIGH BEAM/FRONT WASHER SWITCH MUX |
| 2 |
G902 20VT/BR |
SWITCH MUX RETURN |
| 3 |
L12 20WT/DB |
TURN SIGNAL INPUT MUX |
| 4 |
W52 20BR/YL |
FRONT WIPER SWITCH MUX |
