Map Sensor Connector End View

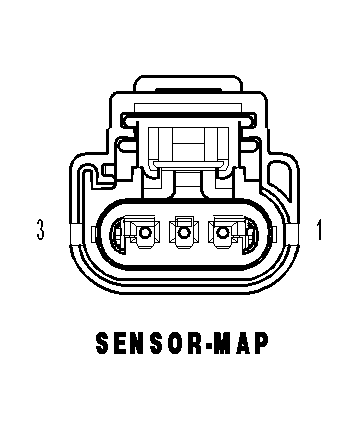

SENSOR-MAP - 3 WAY

GCHB580281Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K1 20VT/BR (3.7L/4.7L) MAP SIGNAL
1 K1 18VT/BR (5.7L) MAP SIGNAL
2 K900 20DB/DG (3.7L/4.7L) SENSOR GROUND
2 K900 18DB/DG (5.7L) SENSOR GROUND
3 F856 20YL/PK (3.7L/4.7L) 5 VOLT SUPPLY
3 F856 18YL/PK (5.7L) 5 VOLT SUPPLY
