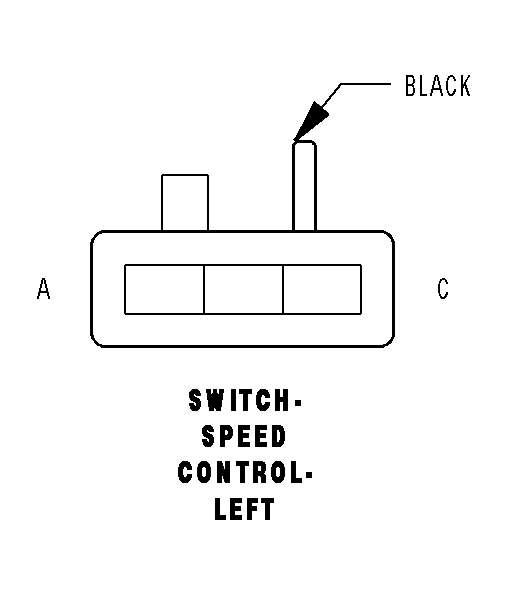

Left Speed Control Switch Connector End View
SWITCH-SPEED CONTROL-LEFT - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
V38 22VT/OR (5.7L) |
S/C SWITCH NO. 2 SIGNAL |
| B |
K900 22DB/DG (3.7L/4.7L) |
SENSOR GROUND |
| B |
V937 20VT/BR (5.7L) |
S/C SWITCH RETURN |
| C |
V37 22VT |
S/C SWITCH NO. 1 SIGNAL |
