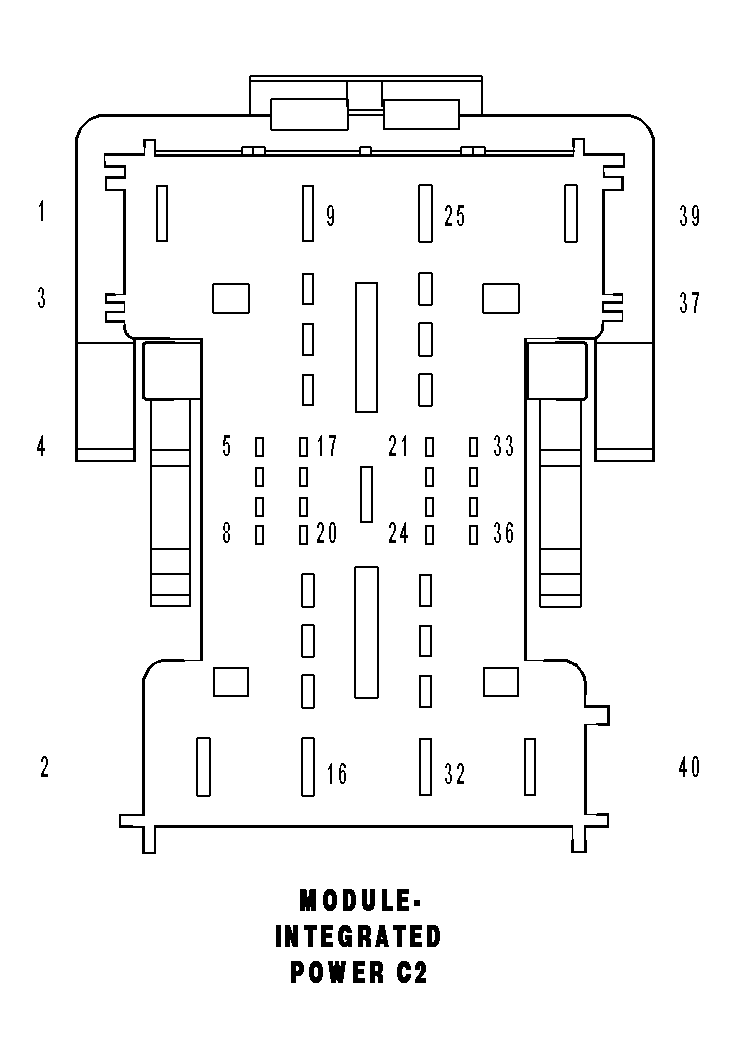

Integrated Power Module Connector End View (C2)
MODULE-INTEGRATED POWER C2 - 40 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | L1 18WT/LG | BACK-UP LAMP FEED |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | F202 20PK/GY | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 8 | L1 18WT/LG | BACK-UP LAMP FEED |
| 9 | Z118 18BK/YL | GROUND |
| 10 | A85 18RD/LB | ADJUSTABLE PEDALS RELAY OUTPUT |
| 11 | A955 16RD | ASD RELAY OUTPUT |
| 12 | - | - |
| 13 | T102 14YL | SHIFT MOTOR (-) |
| 14 | T101 14DG | SHIFT MOTOR (+) |
| 15 | L63 18WT/DG | LEFT TURN SIGNAL |
| 16 | - | - |
| 17 | - | - |
| 18 | L89 18WT/YL | FRONT FOG LAMP RELAY OUTPUT |
| 19 | L89 18WT/YL | FRONT FOG LAMP RELAY OUTPUT |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | P305 20LG/LB | ACCESSORY DELAY RELAY CONTROL |
| 25 | A5 14RD/VT | FUSED B(+) |
| 26 | Z902 14BK | GROUND |
| 27 | W4 14BR/OR | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 28 | W3 14BR/WT | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 29 | Z903 14BK | GROUND |
| 30 | Z901 18BK | GROUND |
| 31 | L673 18YL | LEFT TRAILER TOW BRAKE LAMP RELAY OUTPUT |
| 32 | Z921 14BK | GROUND |
| 33 | - | - |
| 34 | X2 18DG/OR | HORN RELAY OUTPUT |
| 35 | X2 18DG/OR | HORN RELAY OUTPUT |
| 36 | W13 18LG/BR | REAR WIPER MOTOR CONTROL |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | - | - |
