Input Speed Sensor Connector End View
Input Speed Sensor Connector End View

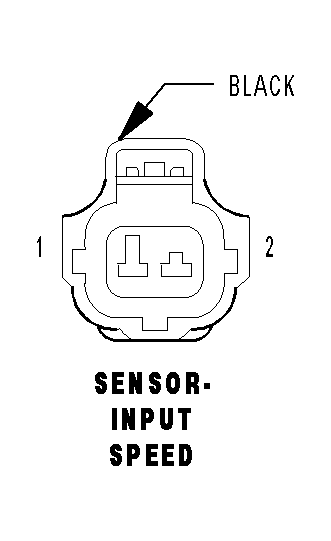

SENSOR-INPUT SPEED - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T52 20VT/OR
INPUT SPEED SENSOR SIGNAL
2
T13 20DG/VT
SPEED SENSOR GROUND
Courtesy of DAIMLERCHRYSLER CORP.
