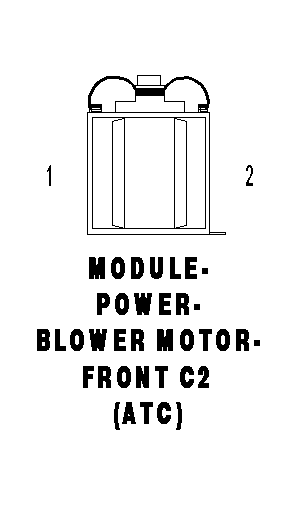

Front Power Blower Motor Module (Automatic Temperature Control) Connector End View (C2)

MODULE-POWER-BLOWER MOTOR-FRONT C2 (ATC)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C805 12DB/WT	BLOWER MOTOR SUPPLY
2	C806 12DB/BR	GROUND
