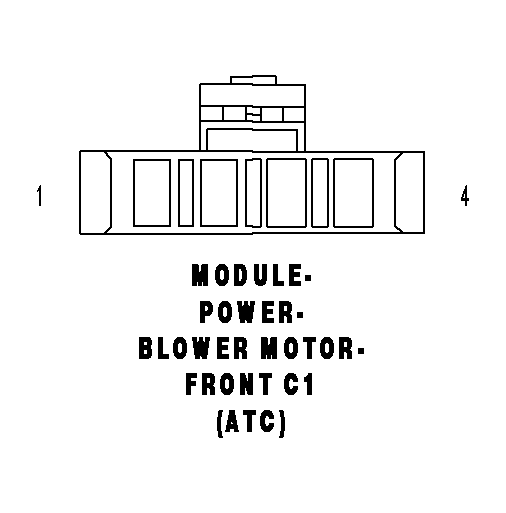

Front Power Blower Motor Module (Automatic Temperature Control) Connector End View (C1)
MODULE-POWER-BLOWER MOTOR-FRONT C1 (ATC)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Z961 10BK |
GROUND |
| 3 |
C56 20DB/LB |
FRONT BLOWER CONTROL |
| 4 |
C7 10DB |
FRONT BLOWER MOTOR RELAY OUTPUT |
