Brake Fluid Level Sensor Connector End View
Brake Fluid Level Sensor Connector End View

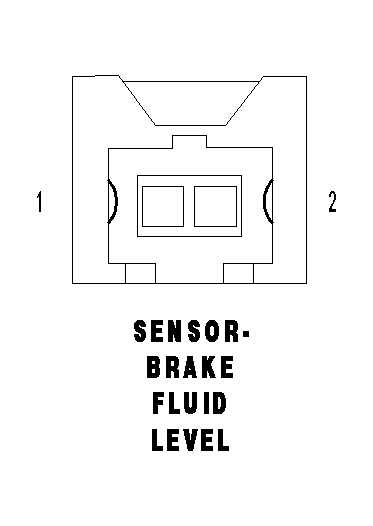

SENSOR-BRAKE FLUID LEVEL - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B20 20DG/OR
BRAKE FLUID LEVEL SWITCH SENSE
2
Z420 20BK/OR
GROUND
