Battery Temperature Sensor Connector End View
Battery Temperature Sensor Connector End View

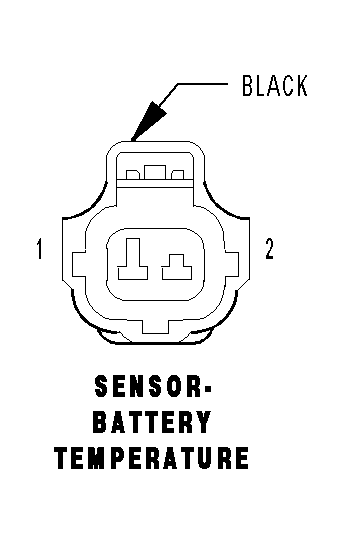

SENSOR-BATTERY TEMPERATURE - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K25 20DB/VT
BATT TEMP SIGNAL
2
K91 20DB/YL
BATT TEMP RETURN
Courtesy of DAIMLERCHRYSLER CORP.
