Body & Frame: Windows: Interior/Exterior: Liftgate: Support-Strut: Hinge: Removal

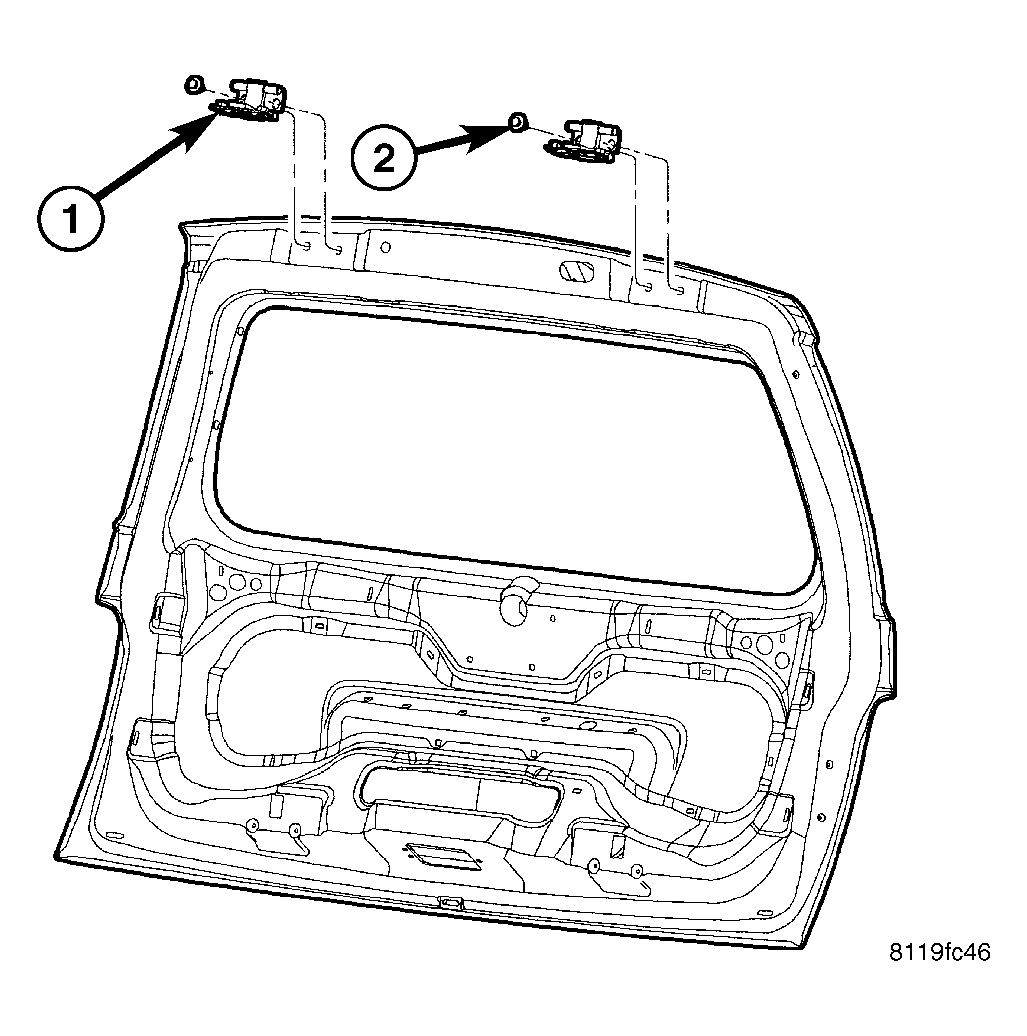

Fig 1: HINGES

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: It is not necessary to remove the liftgate to replace one or both hinges. The hinges can be replaced one at a time.

NOTE: A suitable body sealant should be used when removing or moving the hinges.

1. Support liftgate on a suitable lifting device.
2. Using a trim stick C-4755 or equivalent, remove the upper rear headliner trim.
3. Using a grease pencil or equivalent, mark the location of the hinge to aid installation.
4. Remove the liftgate bolts (2).

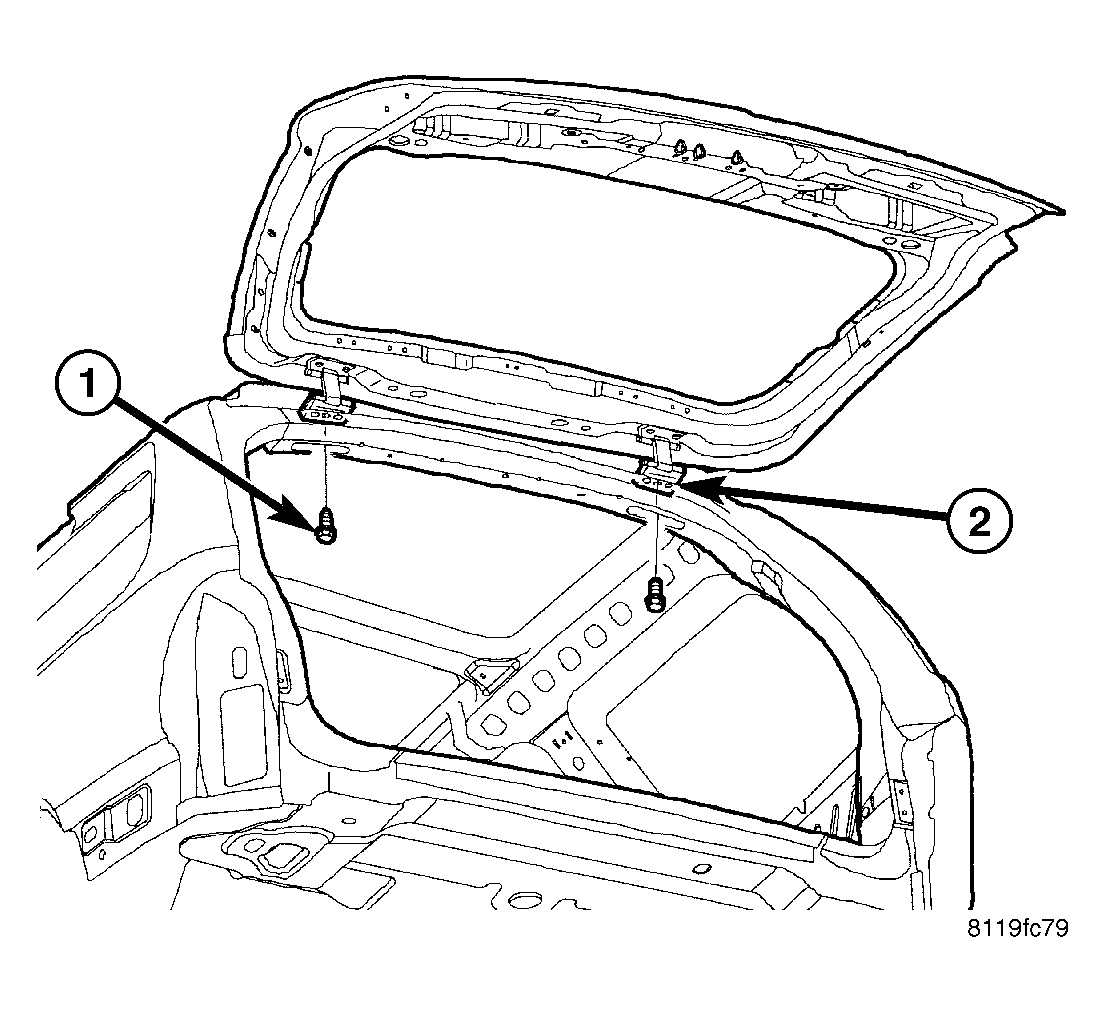

   Fig 2: LIFTGATE

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove the body bolts (1) and remove the hinge.
