Body & Frame: Windows: Interior/Exterior: Liftgate: Panel-Trim: Installation

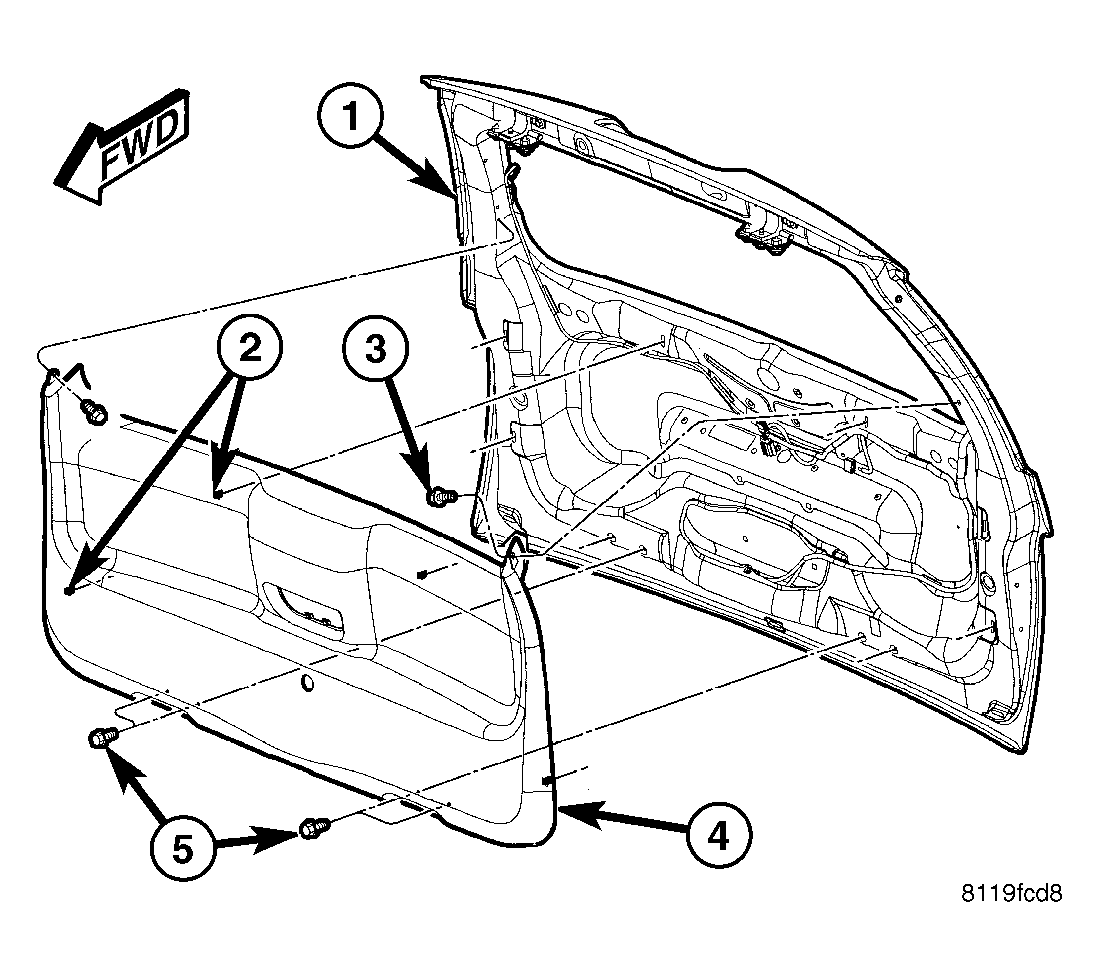

Fig 1: LOWER TRIM PANEL

Courtesy of DAIMLERCHRYSLER CORP.

1. Connect the electrical connector and install the lower trim panel (4) onto the guide pins (2).
2. Install the four lower screws (5) and two upper screws (3).

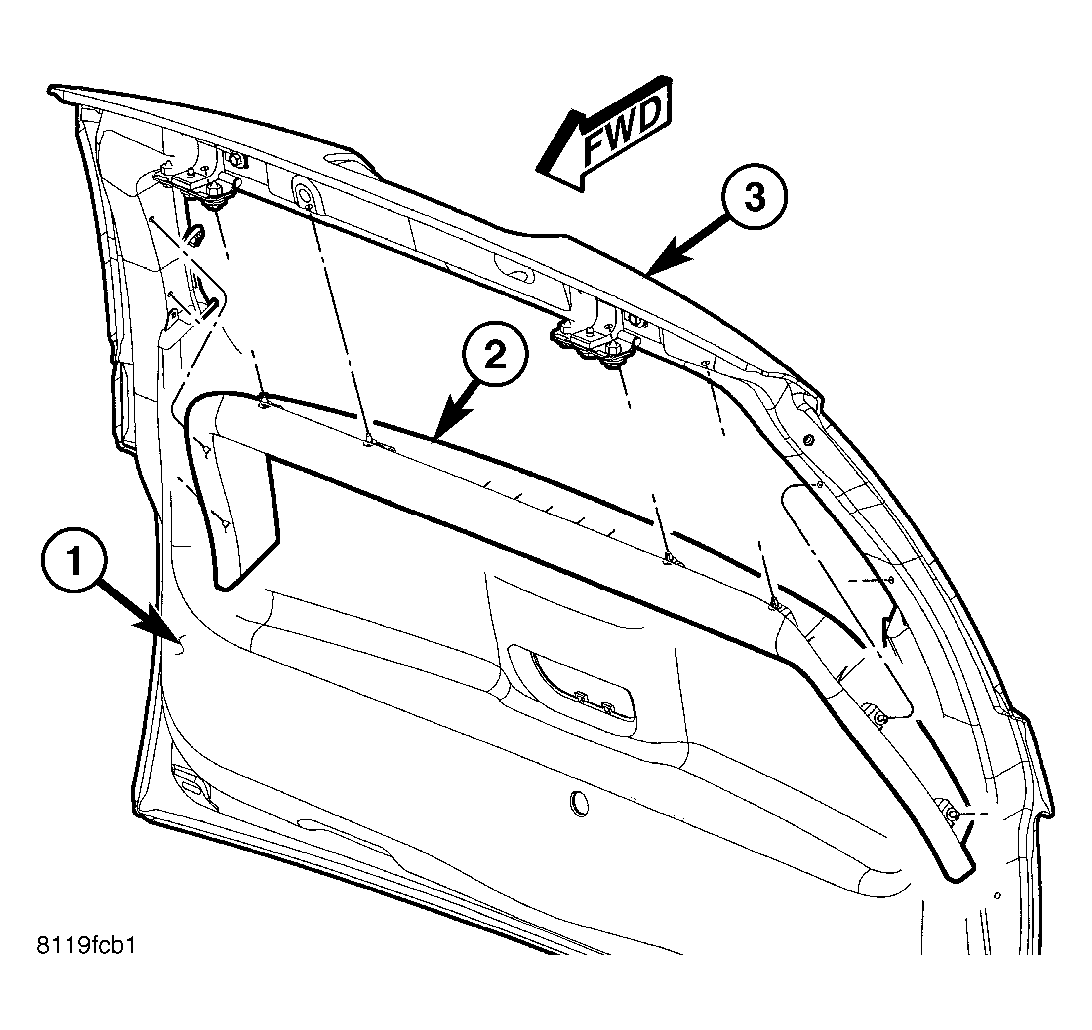

   Fig 2: UPPER TRIM

   Courtesy of DAIMLERCHRYSLER CORP.
3. Position the upper trim (2) into place and seat the push pin fasteners fully.
