Body & Frame: Windows: Interior/Exterior: Liftgate: Handle: Installation

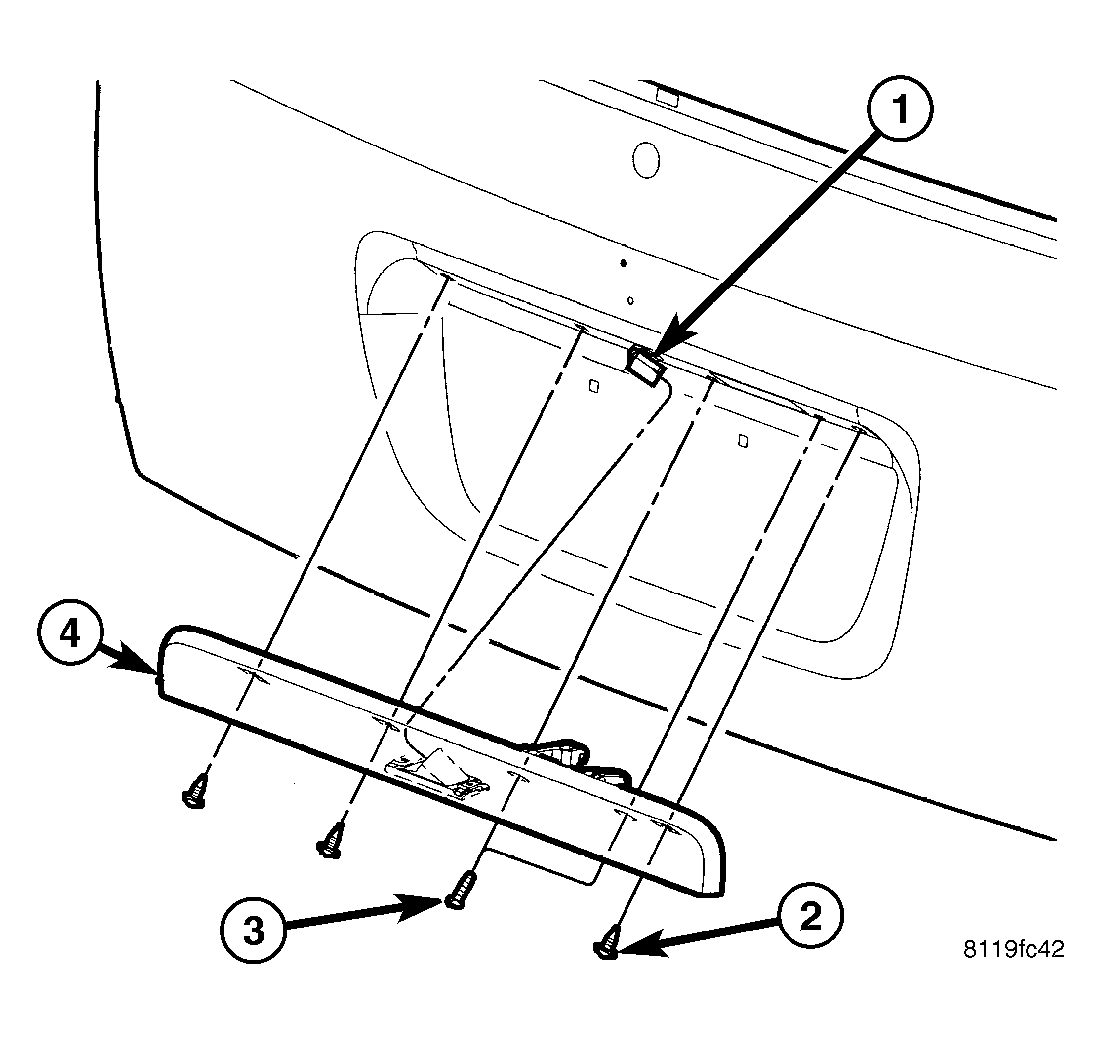

Fig 1: EXTERIOR HANDLE

Courtesy of DAIMLERCHRYSLER CORP.

1. Connect the electrical connector (1) and install the handle (4).
2. Install the screws (2 & 3).
   Fig 2: LATCH ROD

   Courtesy of DAIMLERCHRYSLER CORP.
3. Connect the latch actuator rod (2) to the handle (1).
4. Install the trim panels. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION)
