Without Traction Control

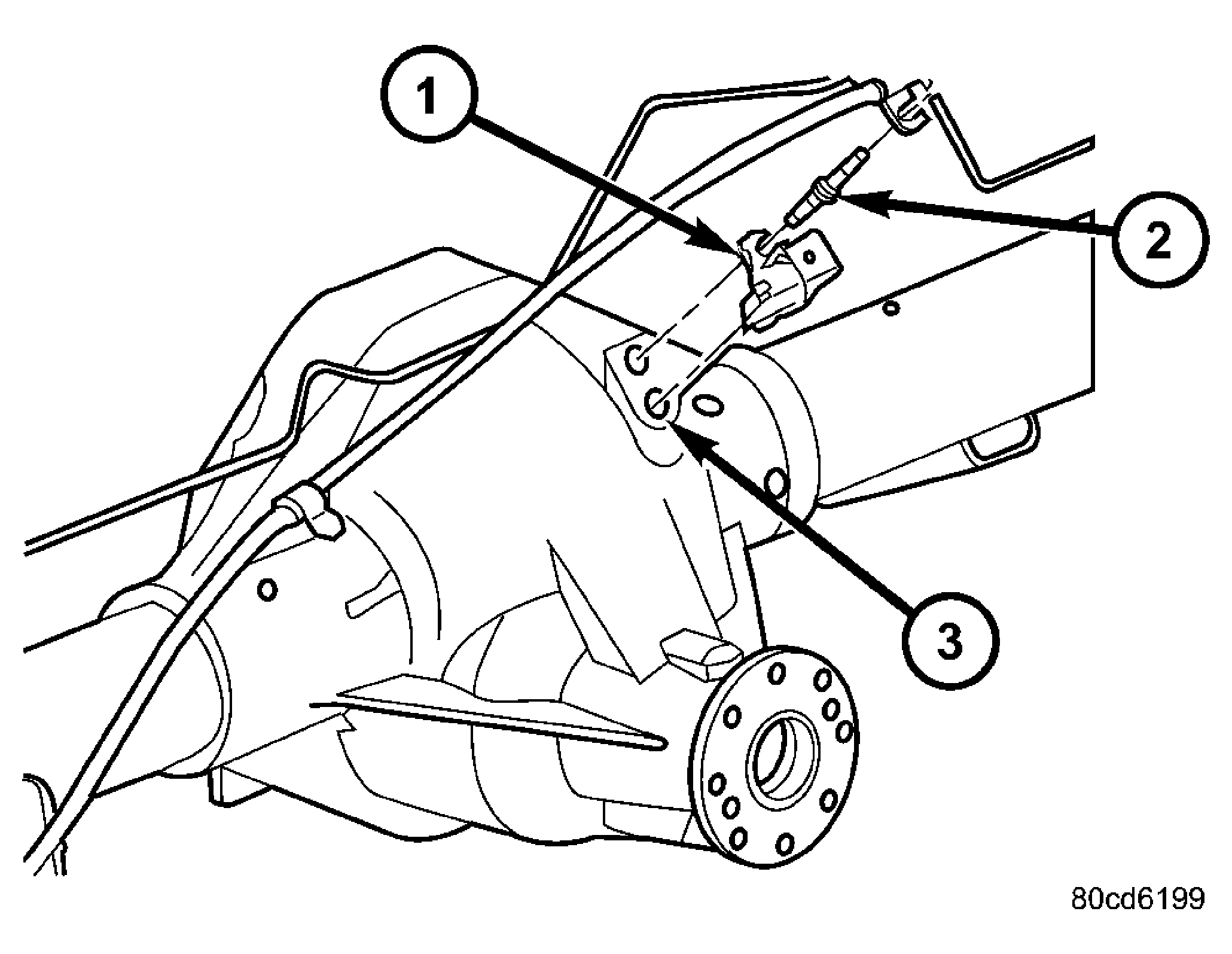

Fig 1: Removing/Installing Rear Wheel Speed Sensor (With Traction Control)
GC0011482Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the O-ring on the sensor (1) (if removed).
  2. Insert the sensor (1) in the differential housing (3).
  3. Install the sensor shield.
  4. Install the sensor mounting stud (2) and tighten to 24 N.m (200 in. lbs.).
  5. Install the brake line on the sensor stud (2) and install the nut.
  6. Connect the harness to the sensor. Be sure the seal is securely in place between the sensor and the wiring connector.
  7. Lower the vehicle.
