VTSS Led-Black 2 Way
VTSS Led-Black 2 Way

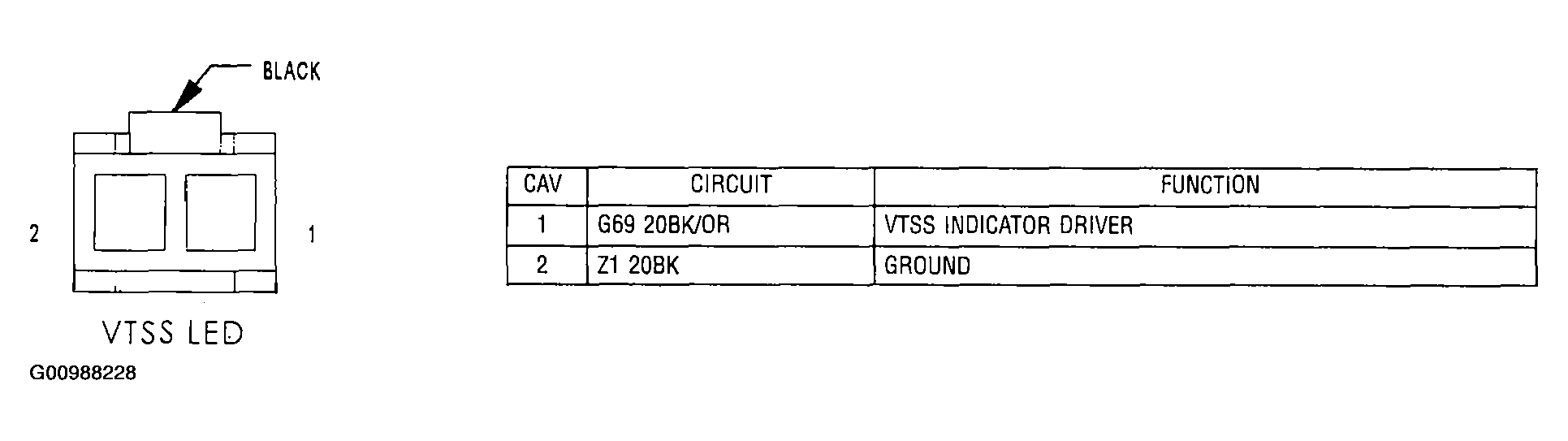

Fig 1: View Of VTSS LED 2 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
