Leak Detection Pump-Black 4 Way
Leak Detection Pump-Black 4 Way

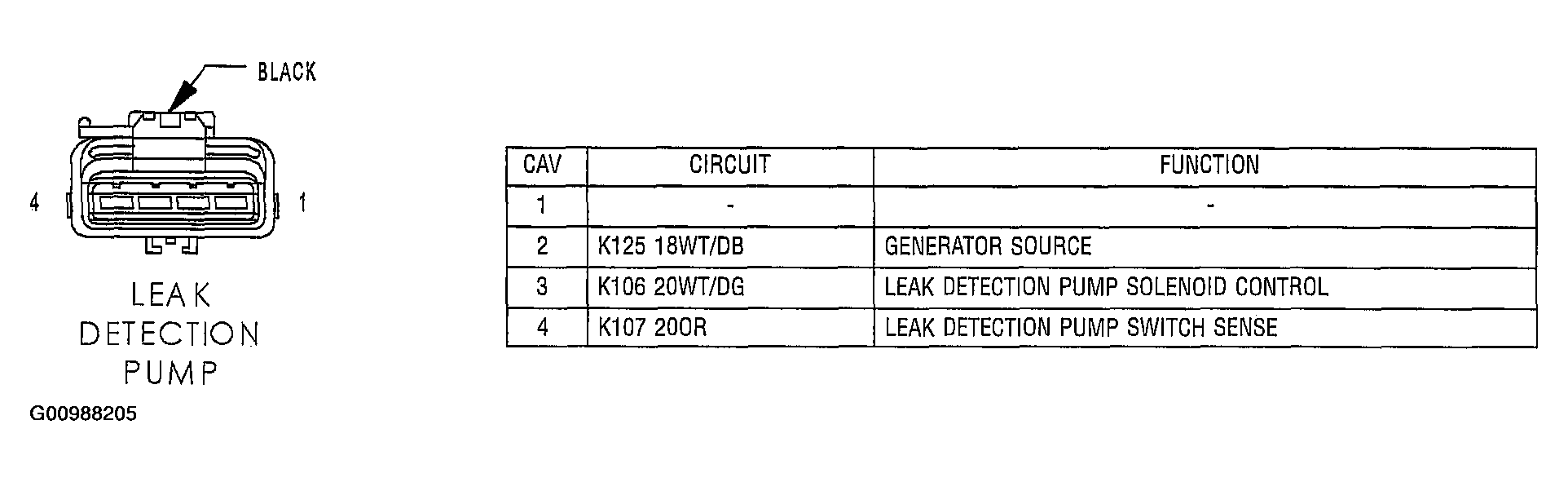

Fig 1: View Of Leak Detection Pump 4 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
