Driver Power Window Switch Connector End View (C2)

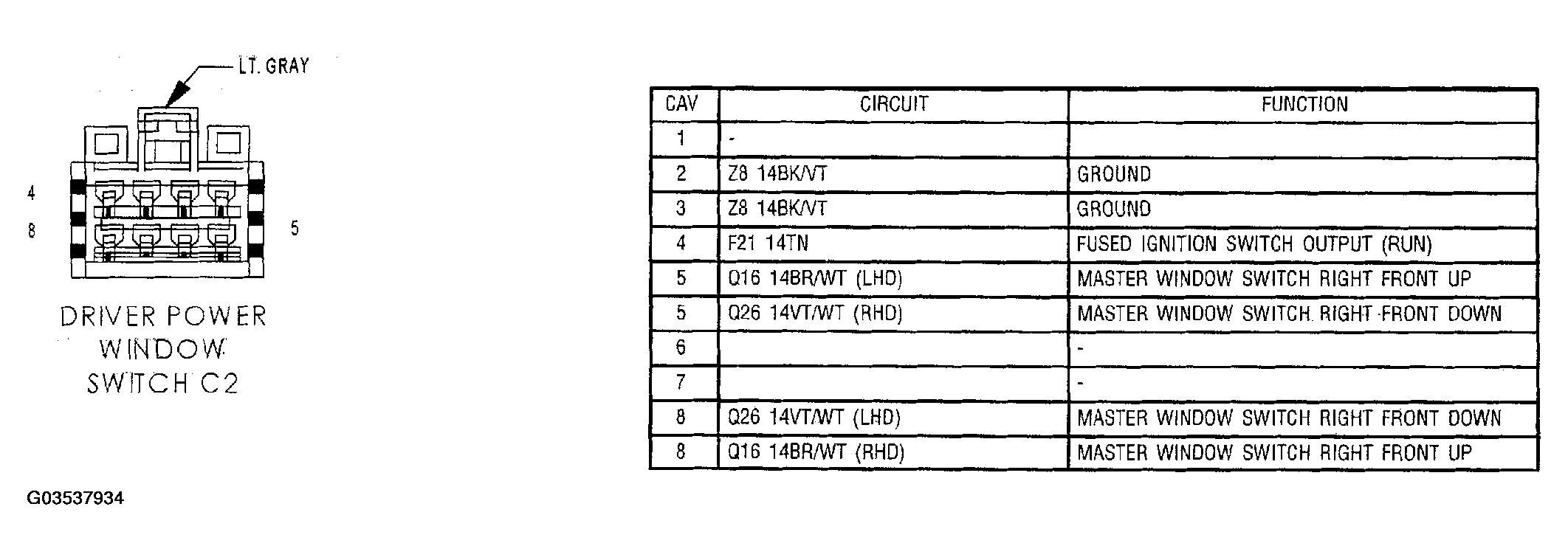

Fig 1: Driver Power Window Switch Connector End View (C2)

G03537934

Courtesy of DAIMLERCHRYSLER CORP.
