Battery System: Battery: Removal

Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
Loosen the battery negative cable terminal clamp pinch-bolt hex nut.

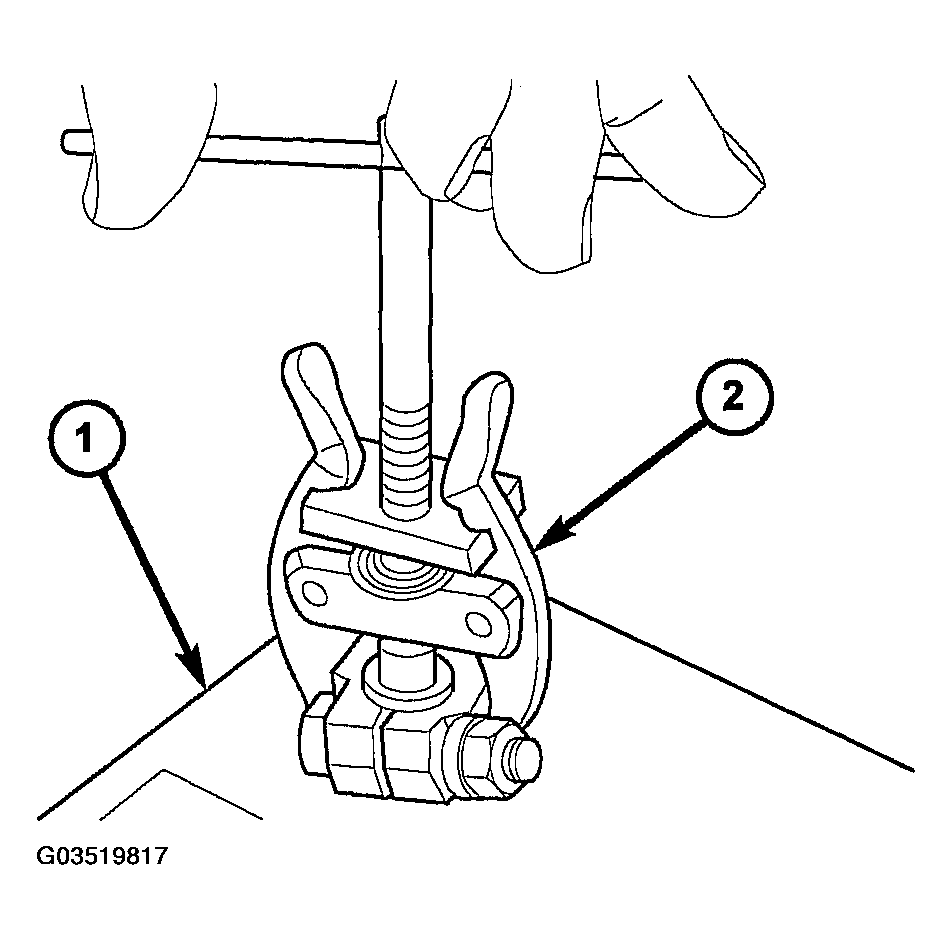

Disconnect the battery negative cable terminal clamp from the battery negative terminal post. If necessary, use a battery terminal puller (2) to remove the terminal clamp from the battery post.
Loosen the battery positive cable terminal clamp pinch-bolt hex nut.
Disconnect the battery positive cable terminal clamp from the battery positive terminal post. If necessary, use a battery terminal puller (2) to remove the terminal clamp from the battery post.

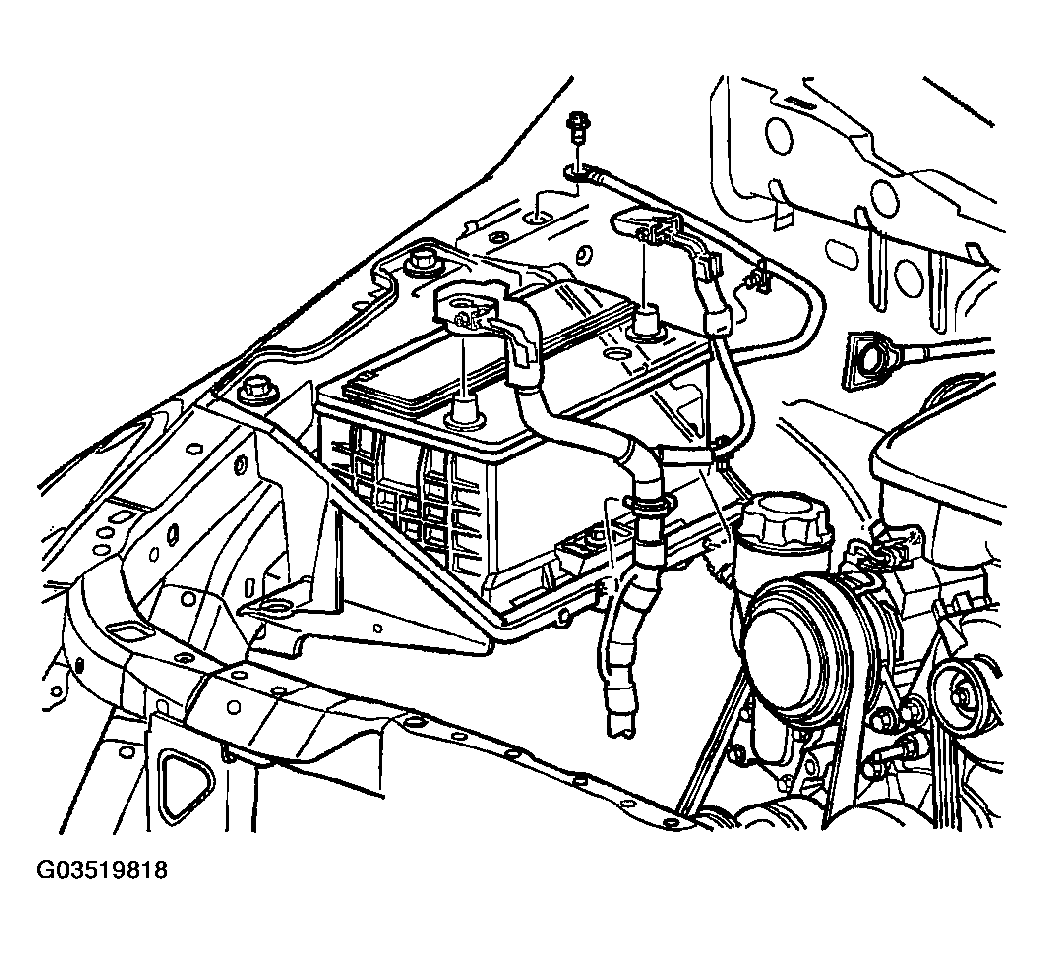

Fig 1: Disconnecting Battery Positive Cable Terminal Clamp From Battery Positive Terminal Post
Courtesy of DAIMLERCHRYSLER CORP.
Remove the battery cables from the battery.

Fig 2: Removing Battery Cables From Battery
Courtesy of DAIMLERCHRYSLER CORP.

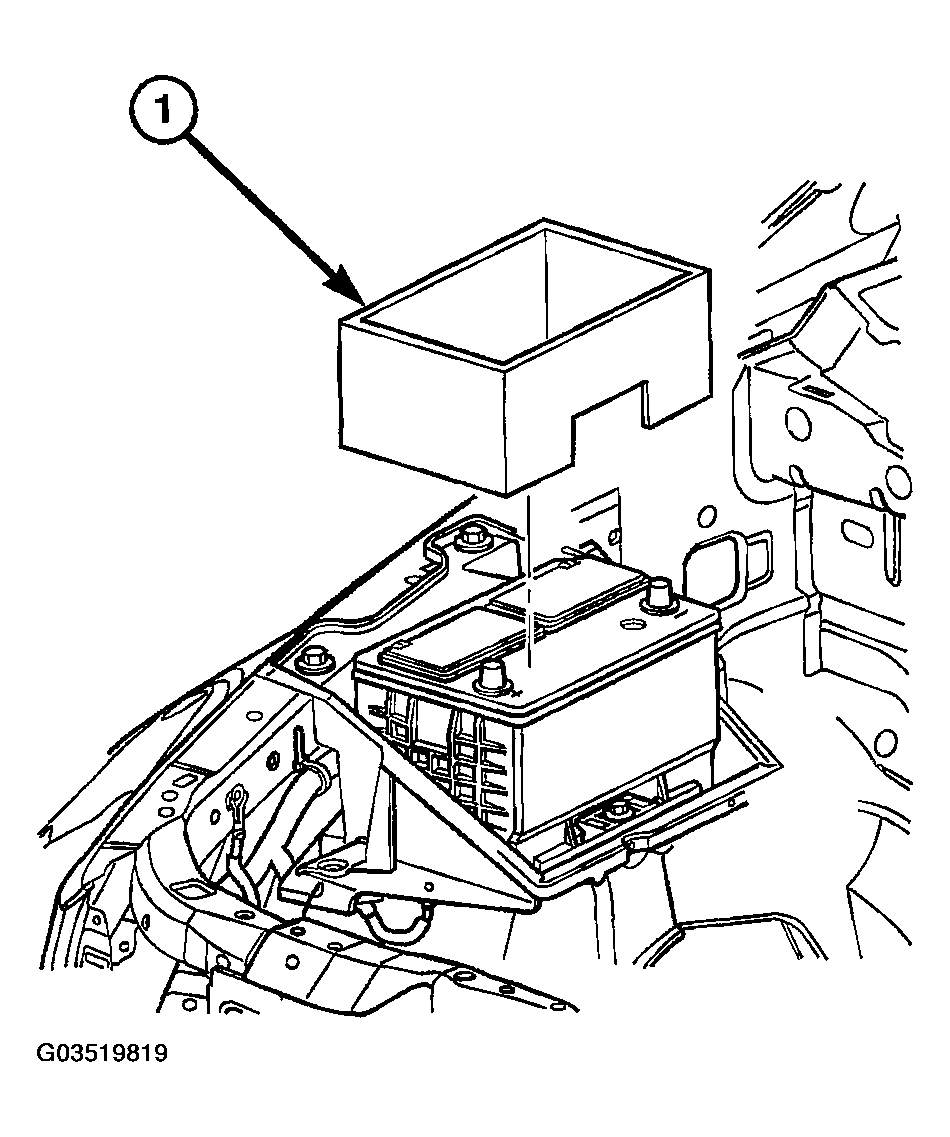

Remove the battery thermal guard (1).

Fig 3: Removing Battery Thermal Guard
Courtesy of DAIMLERCHRYSLER CORP.

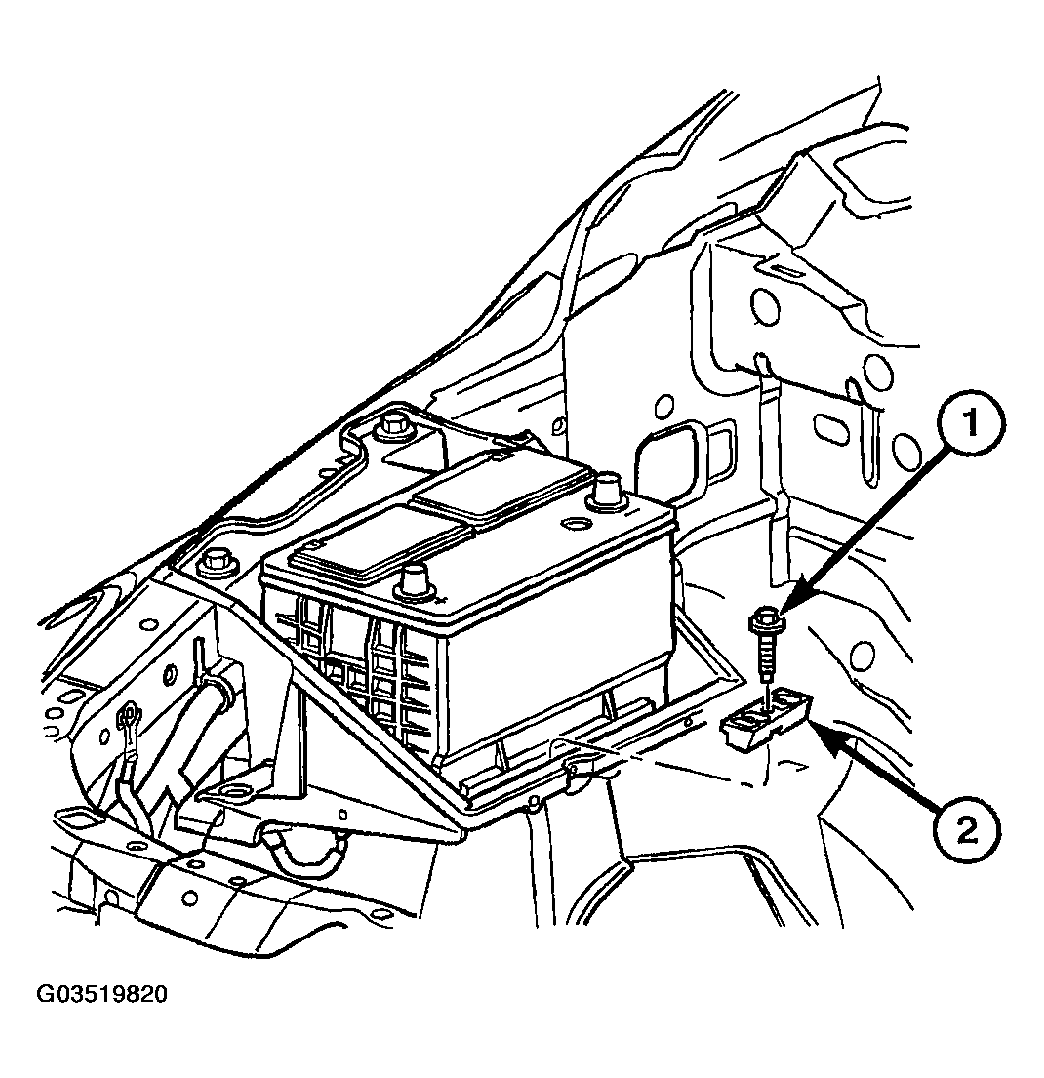

Remove the battery hold down (1) and bolt (2) from the battery.

Fig 4: Removing Battery Hold Down And Bolt From Battery
Courtesy of DAIMLERCHRYSLER CORP.

WARNING: WEAR A SUITABLE PAIR OF RUBBER GLOVES (NOT THE HOUSEHOLD TYPE) WHEN REMOVING A BATTERY BY HAND. SAFETY GLASSES SHOULD ALSO BE WORN. IF THE BATTERY IS CRACKED OR LEAKING, THE ELECTROLYTE CAN BURN THE SKIN AND EYES.

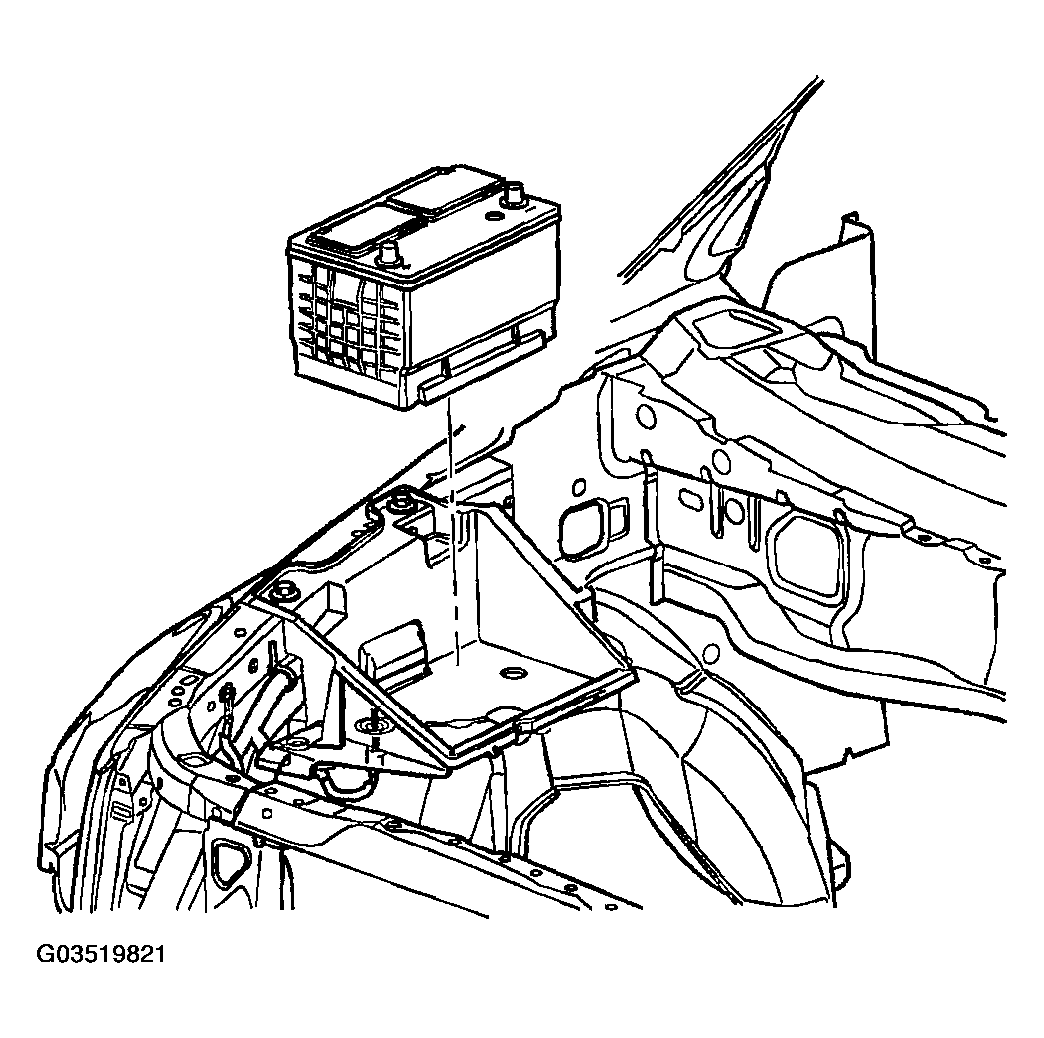

Remove the battery from the battery tray.

Fig 5: Removing Battery From Battery Tray
Courtesy of DAIMLERCHRYSLER CORP.
