Driver Power Window Switch Connector End View

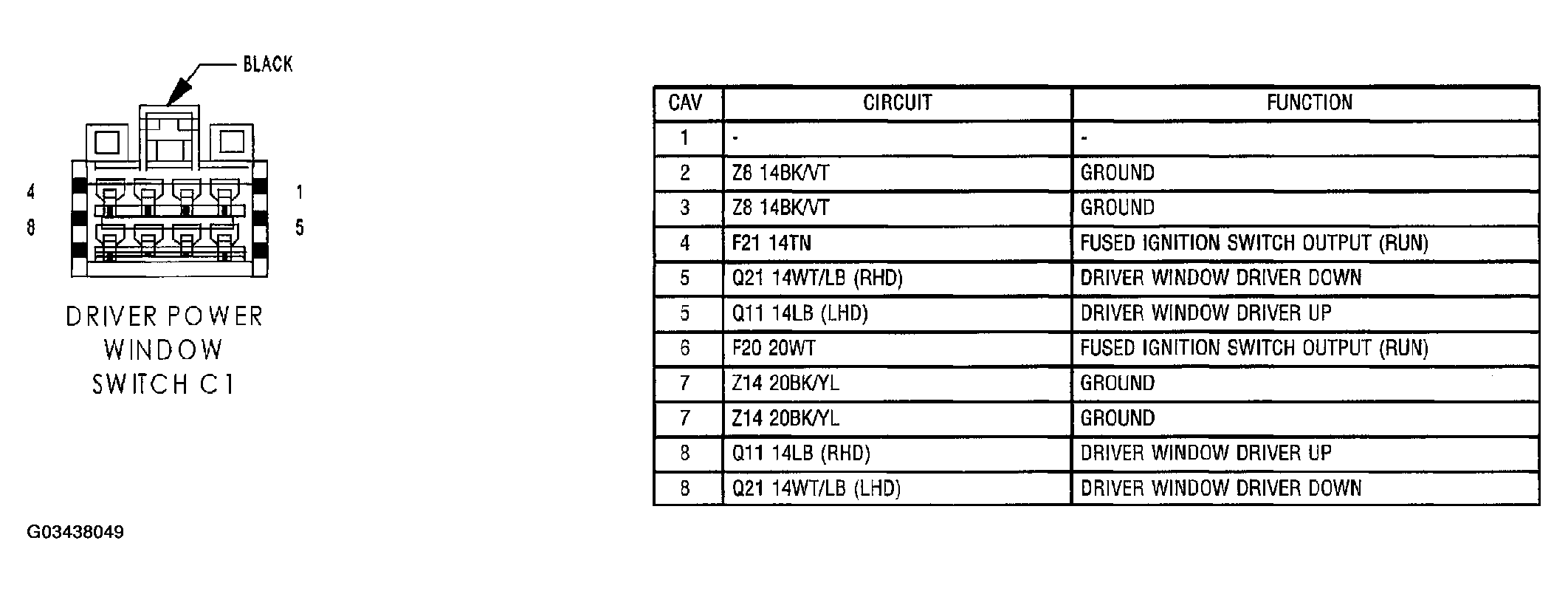

Fig 1: Driver Power Window Switch Connector End View

G03438049

Courtesy of DAIMLERCHRYSLER CORP.
