Standard Procedure - Fluid Level Check

The fluid required in this transaxle is Mopar(R) ATF+4. Use of substitute fluids may result in improper transaxle operation and/or failure.

1. Raise vehicle on hoist.
2. Remove transaxle fill plug (Fig 1 ).

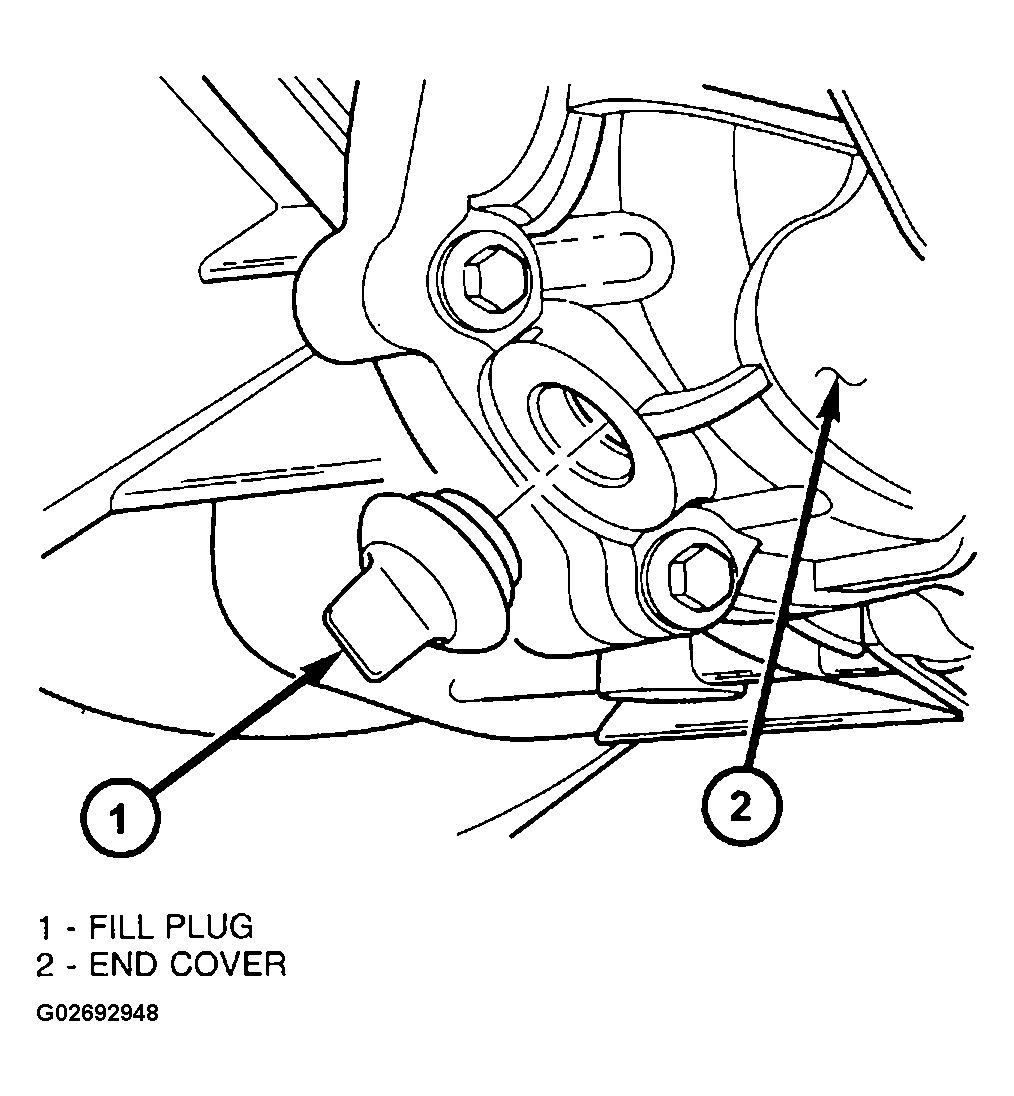

   Fig 1: Removing Transaxle Fill Plug

   Courtesy of DAIMLERCHRYSLER CORP.
3. Inspect fluid level. Fluid should be within 3/16" below fill hole. Add Mopar(R) ATF+4 as necessary.
4. Install fill plug, ensuring it is properly seated.
5. Lower vehicle.
