Speed Control: Servo: Removal

  1. Disconnect electrical connector from servo (Fig 1).

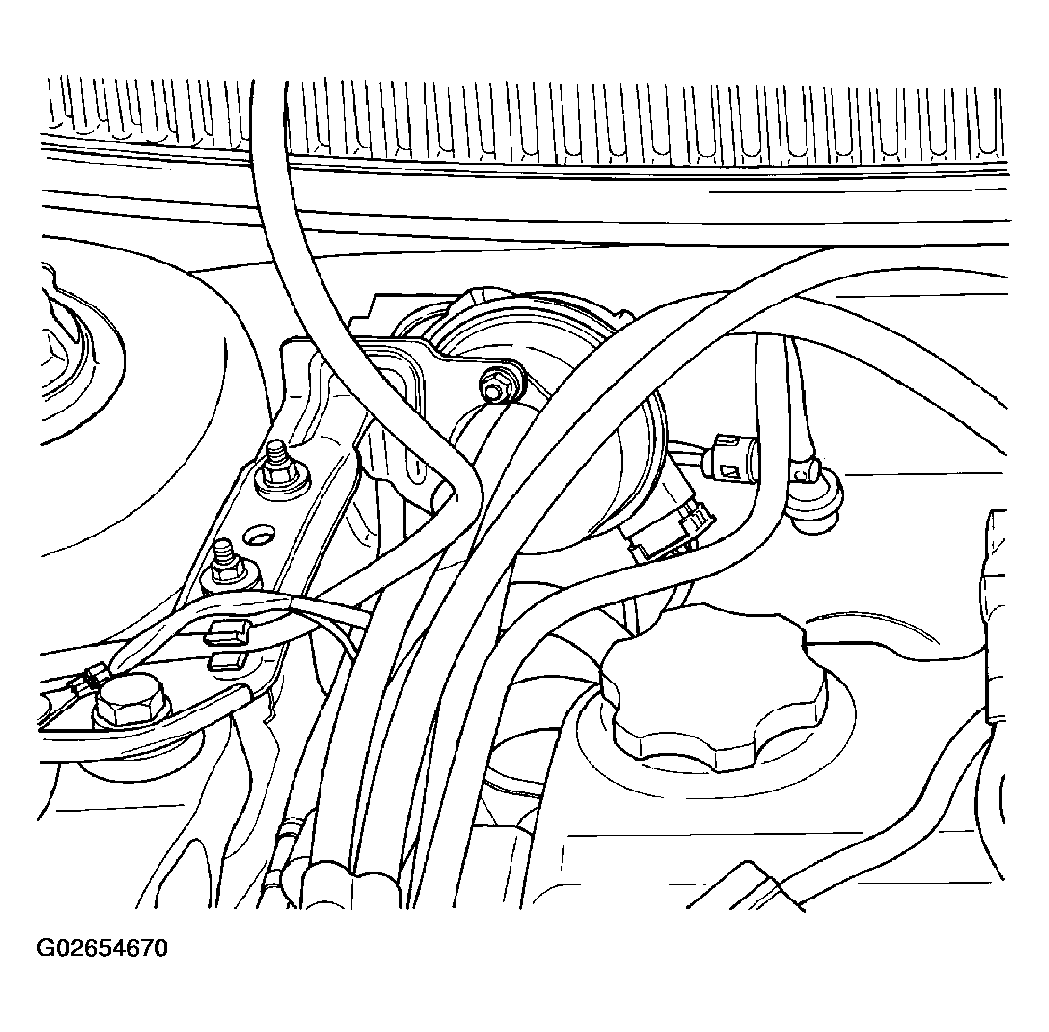

    Fig 1: Disconnecting Speed Control Servo
    G02654670Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect vacuum hose from servo
  3. Remove 2 nuts retaining bracket to servo.
  4. Remove cable bell housing from servo mounting studs.
  5. Remove retaining clip pin holding cable to servo.
