Throttle Position Sensor Connector End View

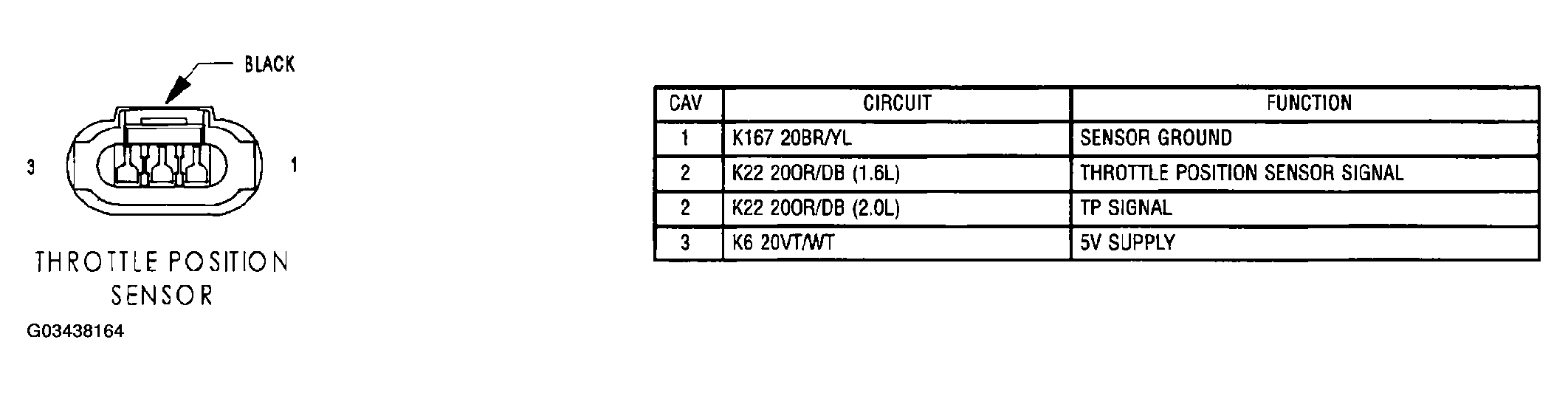

Fig 1: Throttle Position Sensor Connector End View

G03438164

Courtesy of DAIMLERCHRYSLER CORP.
