Powertrain Control Module (5.9L JTEC) Connector End View (C2)

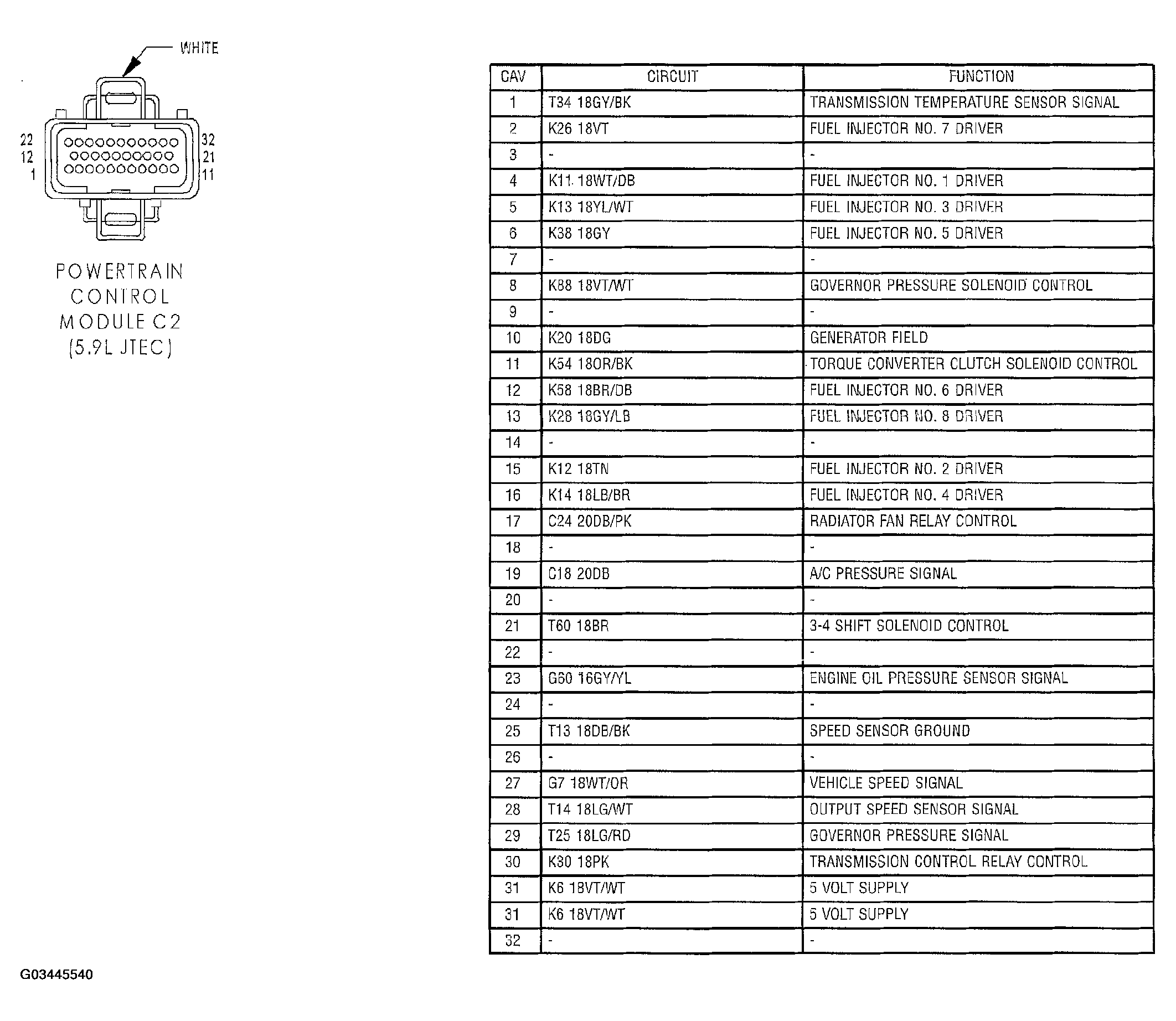

Fig 1: Powertrain Control Module (5.9L JTEC) Connector End View (C2)

G03445540

Courtesy of DAIMLERCHRYSLER CORP.
