Transfer Case Selector Switch Connector End View

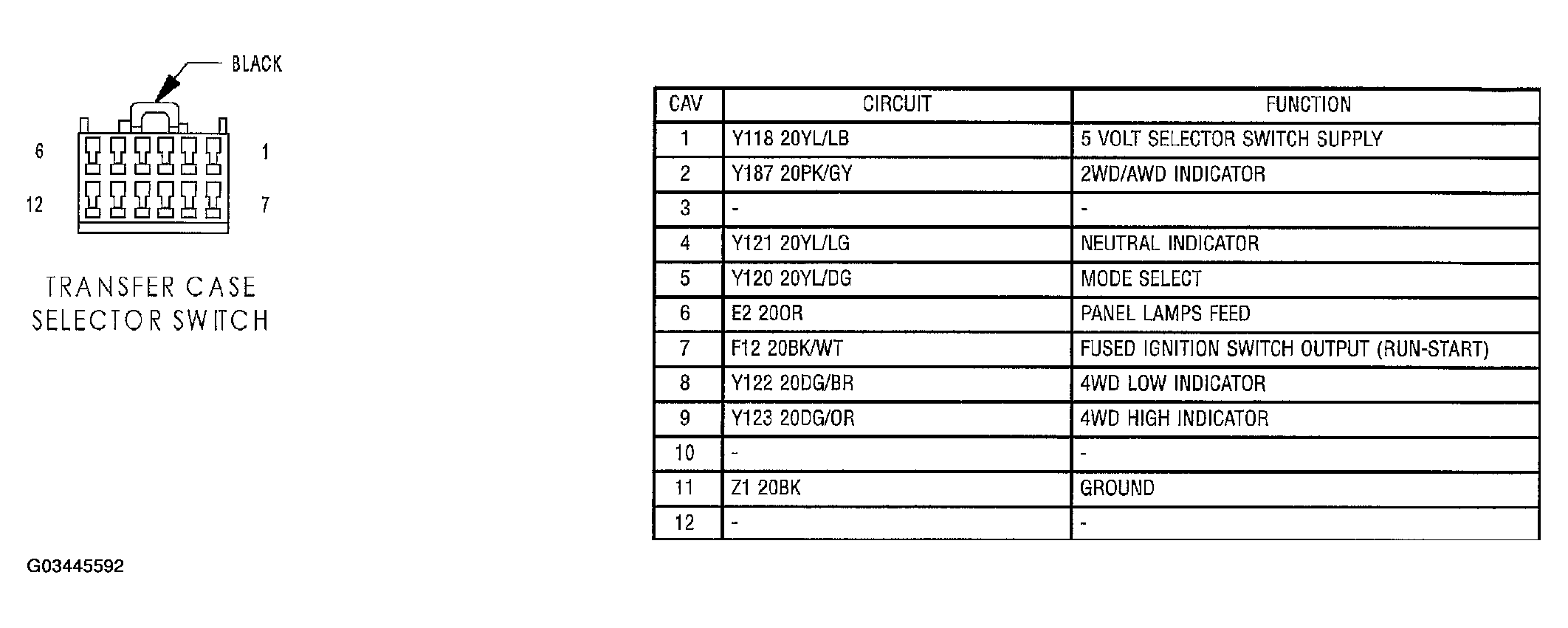

Fig 1: Transfer Case Selector Switch Connector End View

G03445592

Courtesy of DAIMLERCHRYSLER CORP.
